CRE8700ADE 03 – DOOR/DRAWER – Aparts

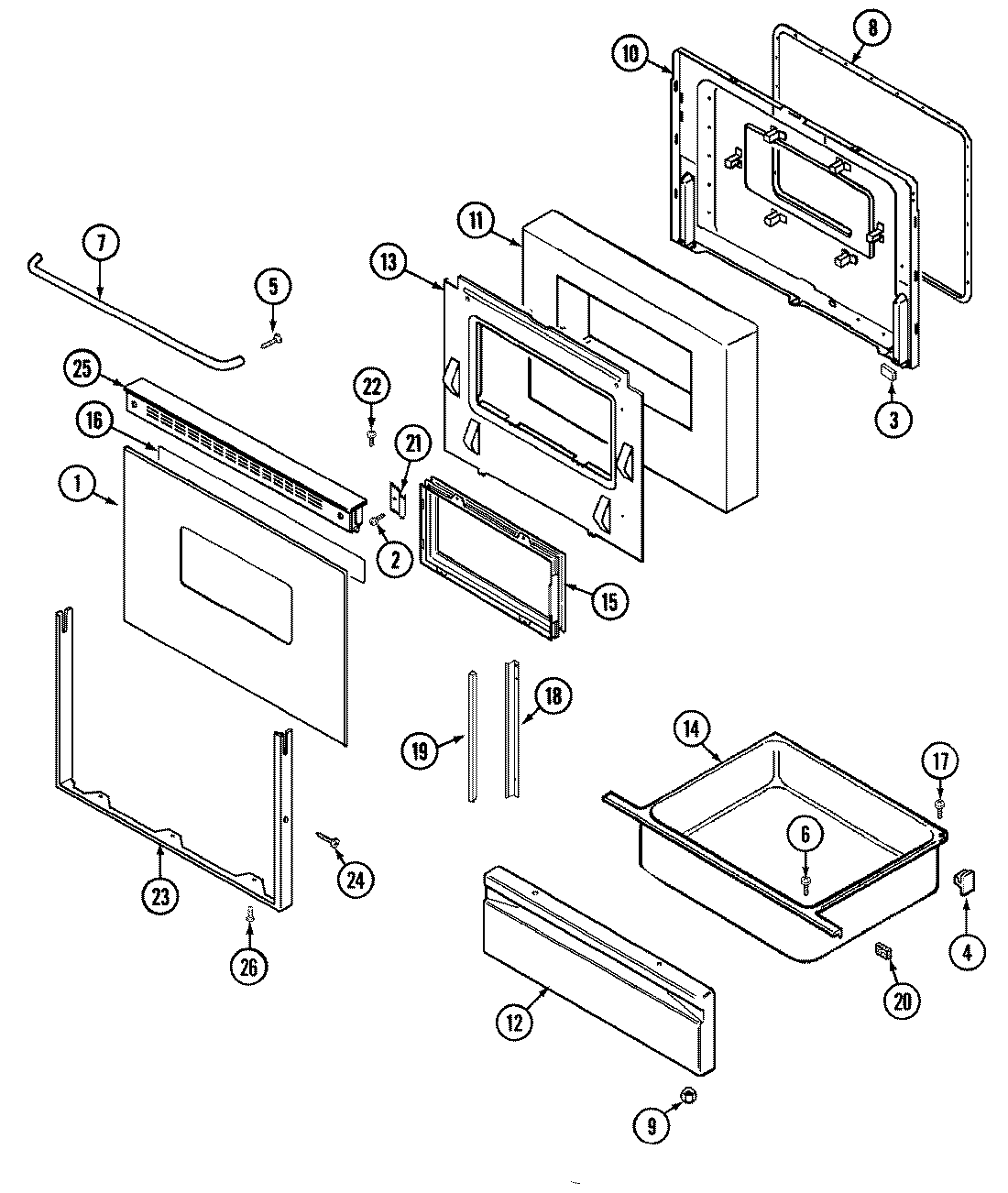

CRE8700ADE 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 7902P360-60
2	MAY 74001449
3	MAY 8010P085-60
4	WP8004P026-60 Whirlpool Support
5	SCREW
6	WP7101P072-60 Whirlpool Screw
7	MAY 7701P128-60
8	GASKT-DOOR OVEN
9	WPW10131078 Whirlpool Nut Assembly
10	MAY 2402W202-19
11	MAY 4804F034-60
12	MAY 2416F039-62
13	MAY 3601F232-45
13	MAY 7103P045-60
14	MAY 3405F015-80
15	MAY 7907P021-60
16	MAY 8270P078-60
18	MAY 3818F052-51
19	MAY 7208P002-60
20	MAY 7208P011-60
21	MAY 3805F002-34
22	MAY 7101P308-60
23	MAY 7706P298-60
24	MAY 7101P320-60
25	MAY 7744P089-60
25	WP3387230 Whirlpool Screw
26	MAY 7101P290-60
