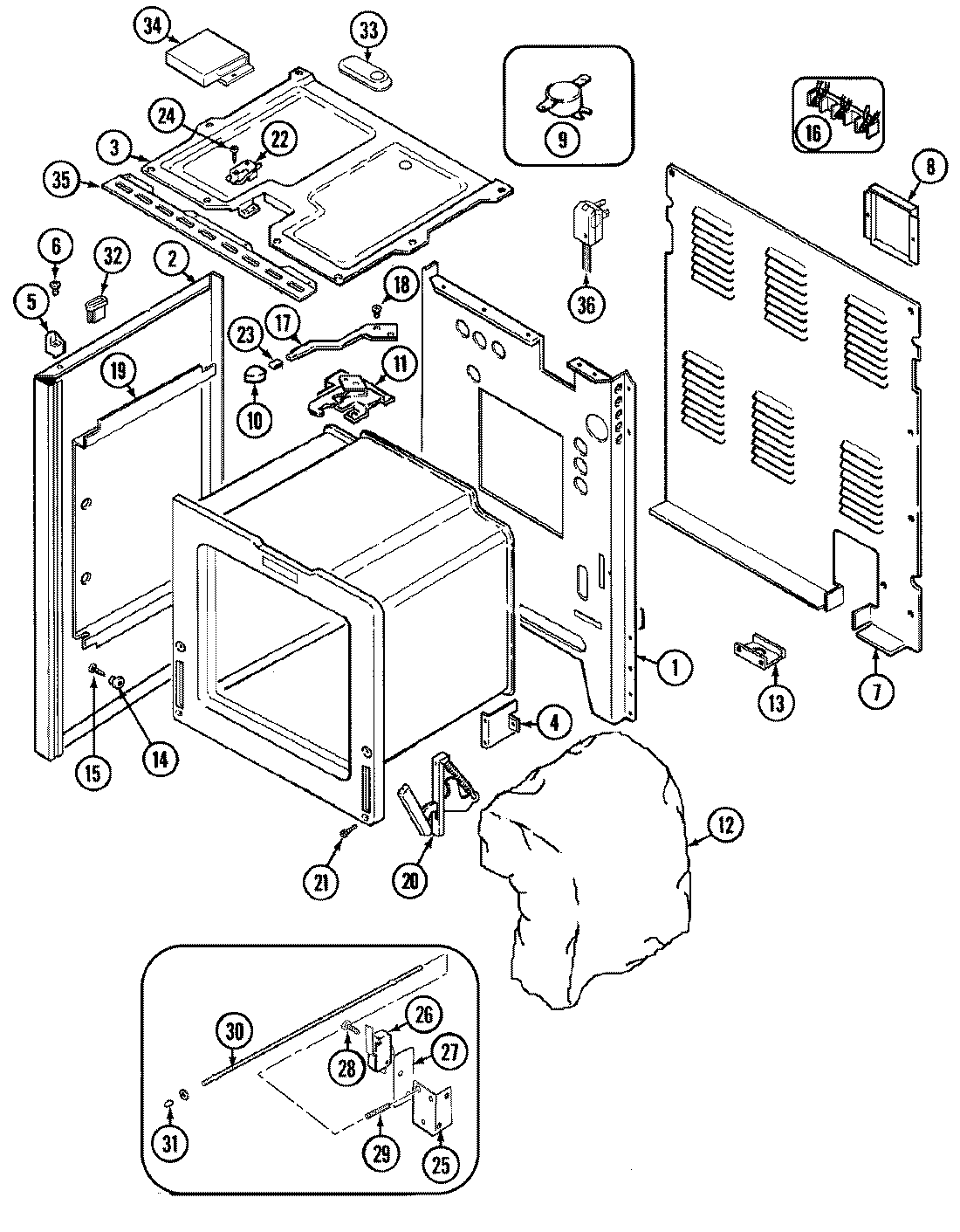

CRE8700ADW 01 – BODY

Products

Position	Product
1	MAY 4002F189-60
2	MAY 2618F085-71
2	TAPE, FOIL (3“ WIDE)
2	MAY 2618F099-71
3	MAY 4011F219-19
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7118P013-60
7	MAY 4005F348-51
8	MAY 4005F427-51
9	MAY 7403P160-60
10	MAY 7701P132-60
11	MAY 7101P290-60
11	MAY 4804F028-60
11	MAY 8002P025-60
12	MAY 4804F030-60
12	MAY 4804F029-60
13	MAY 3605F174-51
14	MAY 8004P024-60
15	MAY 7101P334-60
16	WPW10245259 Whirlpool Terminal Block
17	MAY 8009P016-60
17	MAY 7109P015-60
18	SCREW, LEVER
19	MAY 3804F103-51
20	MAY 7106P049-60
21	WP4159193 Whirlpool Screw
22	MAY 7403P323-60
23	MAY 7112P003-60
24	MAY 7101P130-60
25	MAY 3801F316-51
26	MAY 7403P281-60
27	MAY 7003P047-60
28	MAY 7101P330-60
29	MAY 7803P067-60
30	MAY 7109P020-60
30	MAY 7809P017-60
31	MAY 8003P012-60
32	MAY 8007P023-60
33	COVER, VENT
34	MAY 4005F398-80
35	MAY 3801F305-80
36	MAY 7402P050-60
