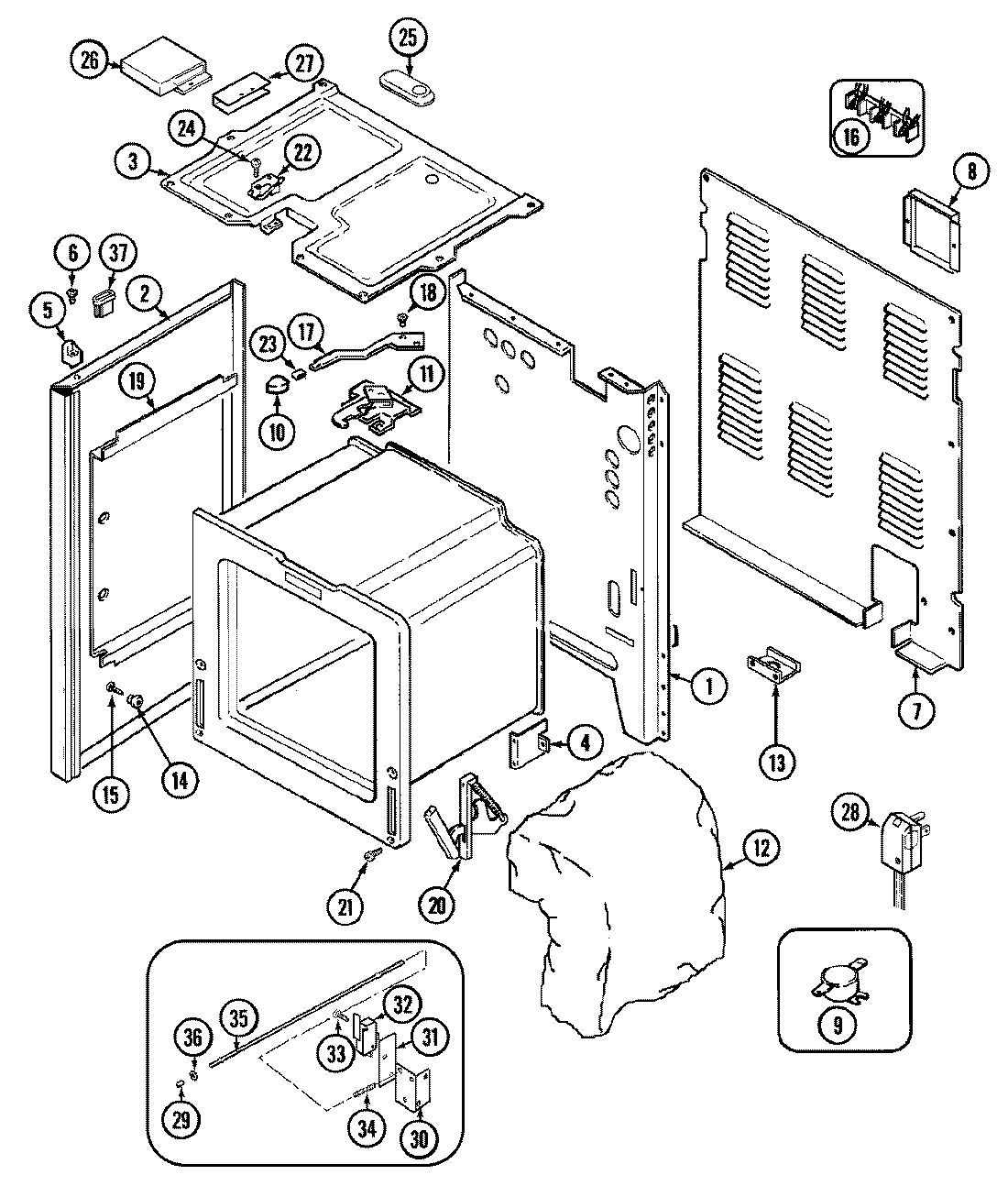

CRE8700BDE 01 – BODY

Products

Position	Product
1	MAY 4002F189-80
2	MAY 2618F099-71
2	TAPE, FOIL (3`` WIDE)
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7118P013-60
7	MAY 4005F348-51
8	MAY 4005F427-51
9	MAY 7403P160-60
10	MAY 7701P133-60
11	MAY 4804F028-60
11	MAY 8002P025-60
12	MAY 4804F030-60
12	MAY 4804F036-60
13	MAY 3605F174-51
14	MAY 8004P024-60
15	MAY 7101P334-60
16	WPW10245259 Whirlpool Terminal Block
17	MAY 8009P024-60
17	MAY 74001725
17	MAY 7109P015-60
18	SCREW, LEVER
19	MAY 3804F103-51
20	MAY 7106P049-60
21	SCREW, HINGE
22	MAY 74001162
23	MAY 7112P003-60
24	MAY 7101P130-60
25	SCREW
25	COVER, VENT
26	MAY 4005F451-80
27	MAY 74001134
28	MAY 7402P050-60
29	MAY 8003P012-60
30	MAY 3801F316-51
31	MAY 7003P047-60
32	MAY 7403P281-60
33	MAY 7101P330-60
34	MAY 7803P067-60
35	MAY 7809P017-60
36	MAY 7109P020-60
37	MAY 8007P023-60
