CRE8700BDL 03 – OVEN/BASE
Written by
in

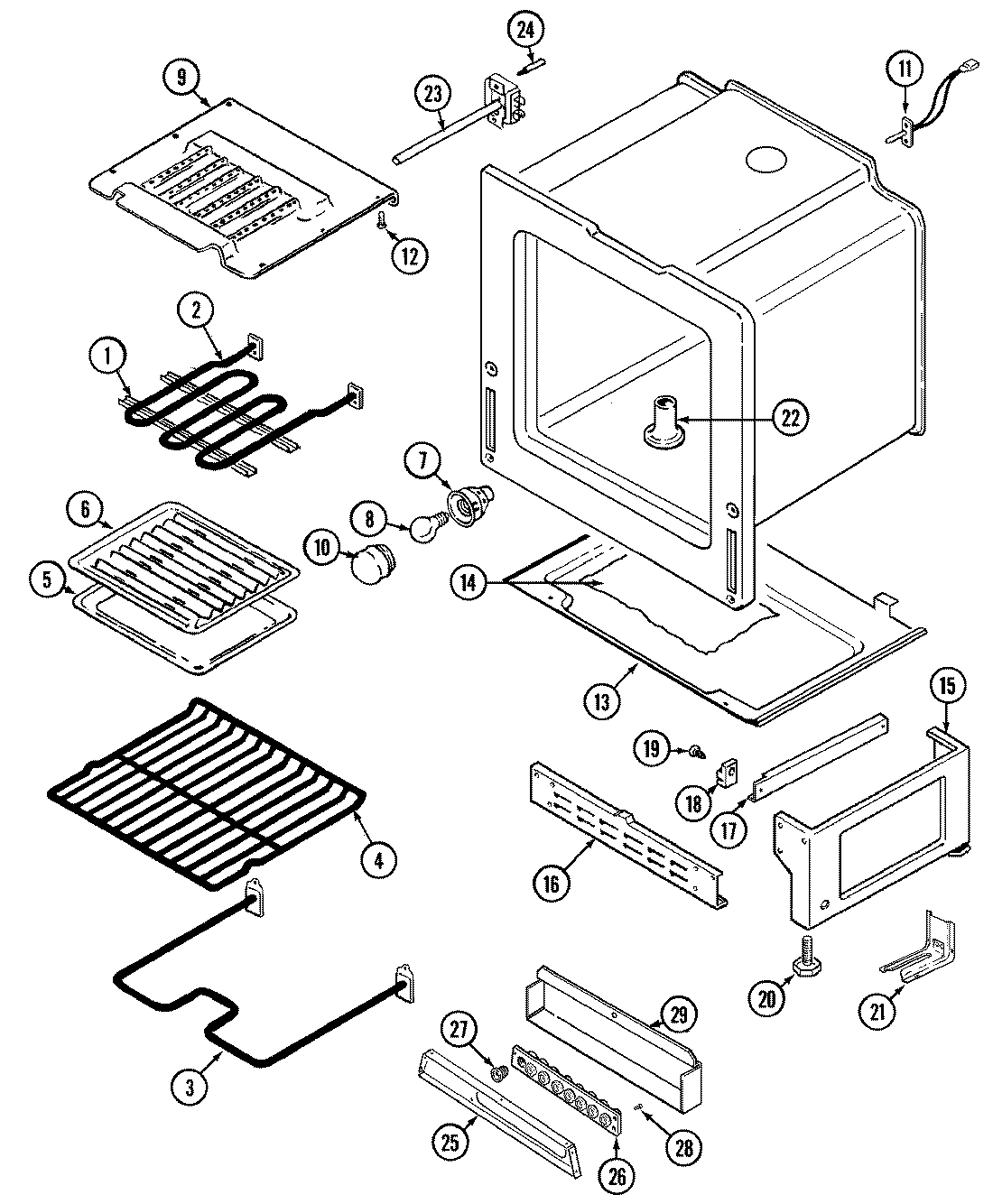

CRE8700BDL 03 – OVEN/BASE
Products
Position
Product
1
MAY 3807F387-45
2
WPY04000059 Whirlpool Bake Element
3
MAY Y04000058
4
MAY 7801P046-60
5
MAY Y3401F02019
6
MAY Y3413F01619
7
WP7407P182-60 Whirlpool Lamp
8
MAY 7407P095-60
9
MAY 3601F237-47
10
WP9781049 Whirlpool Light Lens
11
MAY 7430P010-60
12
MAY 7101P290-60
13
MAY 3804F112-51
14
MAY 8312P058-60
15
MAY 4020W007-80
16
SCREW
16
MAY 4020F001-80
17
MAY 3406F028-51
18
MAY 8004P033-60
19
MAY 7101P334-60
20
MAY 7101P306-60
21
MAY 3801F218-51
21
MAY 7101P289-60
22
MAY 8026P019-60
23
MAY 7404P057-60
24
MAY 7118P020-60
25
MAY 7103P064-60
25
MAY 3801F309-80
26
MAY 7401A031-60
27
MAY 7416P006-60
27
MAY 7416P005-60
27
MAY 7416P004-60
28
MAY 7101P068-60
29
MAY 4005F417-51
←
