CRE8700BDW 03 – OVEN/BASE – Aparts

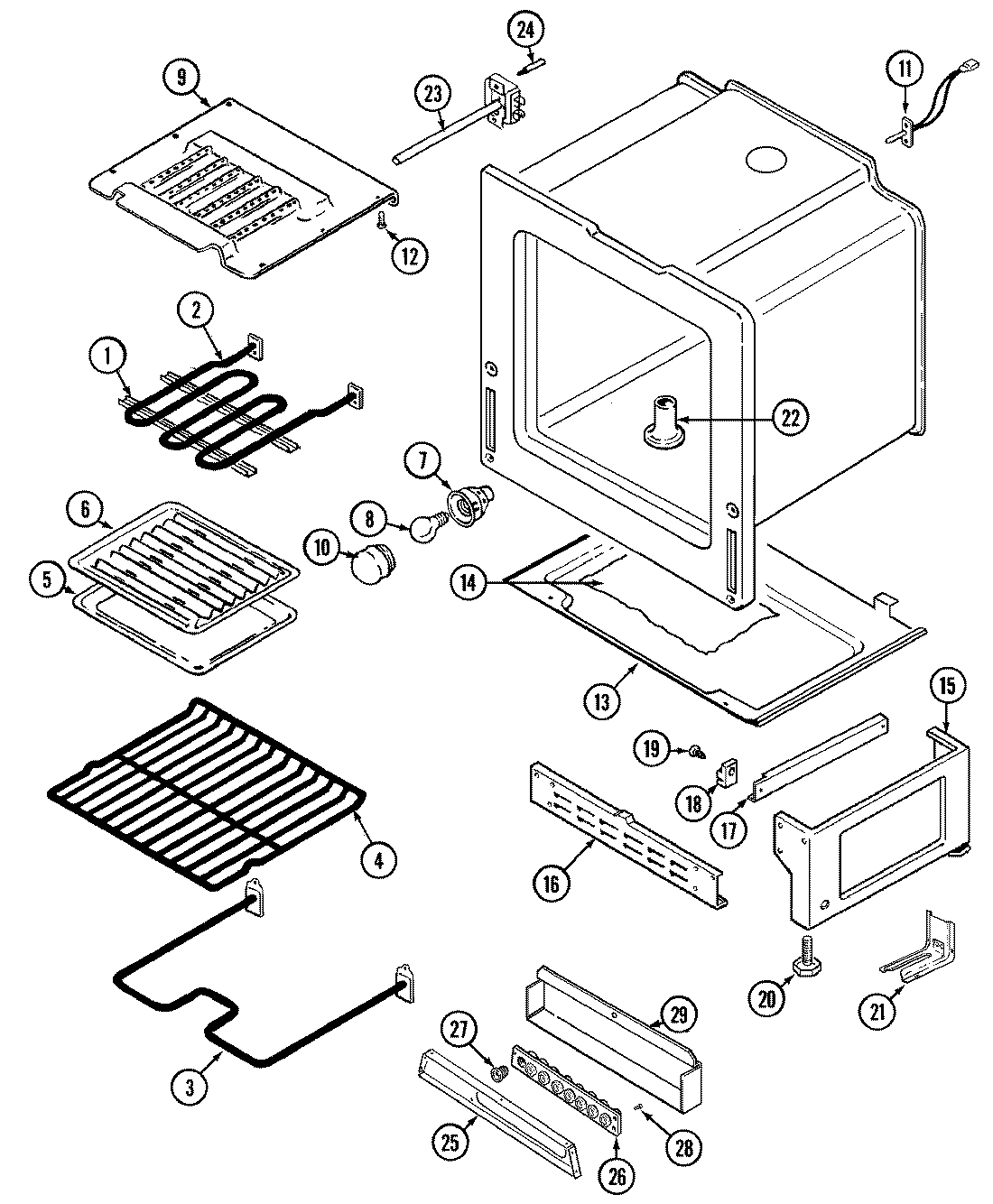

CRE8700BDW 03 – OVEN/BASE

Products

Position	Product
1	MAY 3807F387-45
2	WPY04000059 Whirlpool Bake Element
3	MAY Y04000058
4	MAY 7801P046-60
5	MAY Y3401F02019
6	MAY Y3413F01619
7	WP7407P182-60 Whirlpool Lamp
8	MAY 7407P095-60
9	MAY 3601F237-47
10	WP9781049 Whirlpool Light Lens
11	MAY 7430P010-60
12	MAY 7101P290-60
13	MAY 3804F112-51
14	MAY 8312P058-60
15	MAY 4020W007-80
16	SCREW
16	MAY 4020F001-80
17	MAY 3406F028-51
18	MAY 8004P033-60
19	MAY 7101P334-60
20	MAY 7101P306-60
21	MAY 3801F218-51
21	MAY 7101P289-60
22	MAY 8026P019-60
23	MAY 7404P057-60
24	MAY 7118P020-60
25	MAY 7103P064-60
25	MAY 3801F309-80
26	MAY 7401A031-60
27	MAY 7416P006-60
27	MAY 7416P005-60
27	MAY 7416P004-60
28	MAY 7101P068-60
29	MAY 4005F417-51
