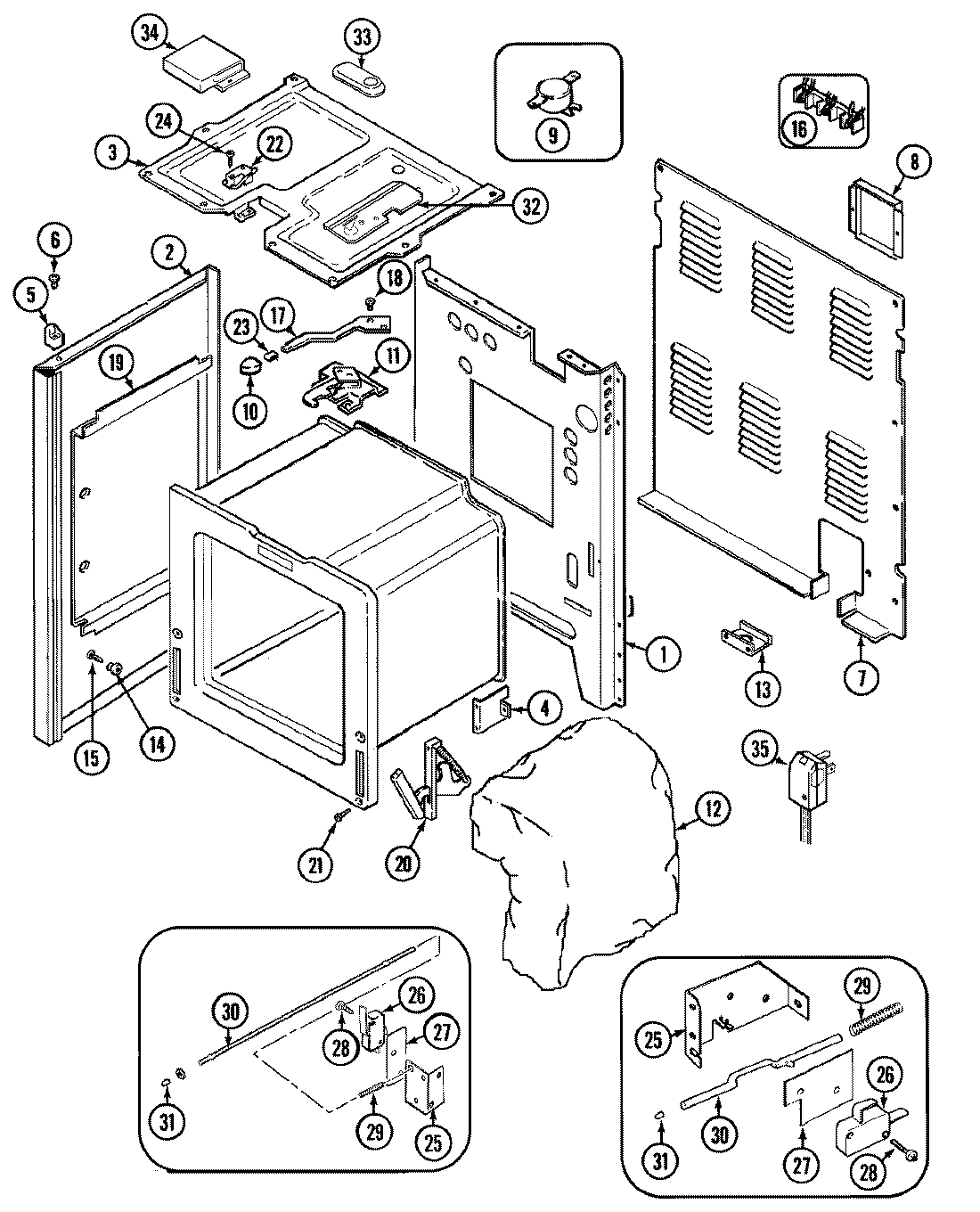

CRE8700CDE 01 – BODY

Products

Position	Product
1	MAY 74001341
2	MAY 8270P078-60
2	MAY 7003P067-60
2	MAY 2618F110-71
3	MAY 74001132
3	MAY 74001753
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	MAY 7118P013-60
7	MAY 4005F454-51
8	MAY 4005F427-51
9	MAY 7403P160-60
10	MAY 7701P133-60
11	MAY 4804F028-60
11	MAY 8002P025-60
11	MAY 7101P280-60
12	MAY 4804F036-60
12	MAY 74001159
13	MAY 3605F174-51
14	MAY 8004P024-60
15	MAY 7101P334-60
16	WPW10245259 Whirlpool Terminal Block
17	MAY 8009P024-60
18	SCREW, LEVER
19	MAY 3804F103-51
20	MAY 7106P056-60
21	SCREW (10-24X5/16-NI)
22	MAY 74001708
22	MAY 7403P363-60
23	MAY 7112P112-60
24	MAY 7101P130-60
25	BRACKET, SWITCH ACTUATOR
26	MAY 74001628
27	MAY 74001626
28	MAY 7101P330-60
30	MAY 74001630
31	MAY 74001631
32	MAY 74001598
33	COVER, VENT
34	MAY 74001133
35	MAY 7402P050-60
