CRE8700CDL 03 – DOOR/DRAWER – Aparts

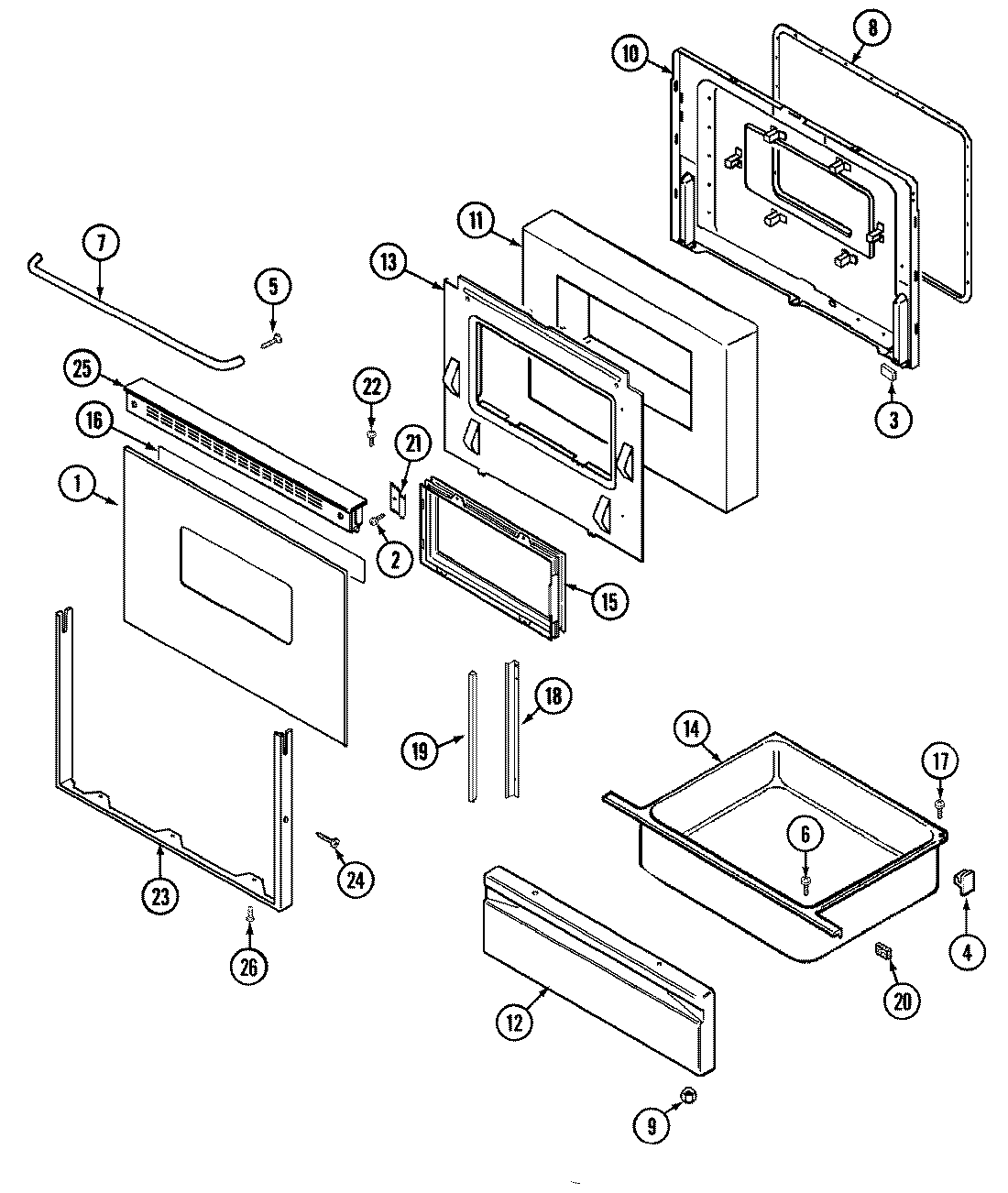

CRE8700CDL 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 7902P361-60
2	MAY 7208P011-60
3	MAY 8010P085-60
4	WP8004P026-60 Whirlpool Support
6	WP4159193 Whirlpool Screw
7	MAY 7701P149-60
7	MAY 7103P045-60
8	GASKT-DOOR OVEN
9	WPW10131078 Whirlpool Nut Assembly
10	NUT, SNAP (ROUND-WHT)
10	MAY 2402W209-19
10	MAY 7103P136-60
10	WP7103P114-60 Whirlpool Snap Nut
11	MAY 4804F051-60
12	MAY 2416F039-64
13	MAY 3601F236-47
14	MAY 3405F019-80
15	MAY 7907P021-60
16	TAPE, FOIL (3`` WIDE)
17	SCREW
18	MAY 3818F052-80
19	MAY 7208P002-60
21	MAY 3805F002-34
23	MAY 7706P309-60
24	WP98008545 Whirlpool Screw
25	MAY 7706P305-60
26	MAY 7101P290-60
