CRE8700CDW 03 – DOOR/DRAWER

CRE8700CDW 03 – DOOR/DRAWER

Written by

in

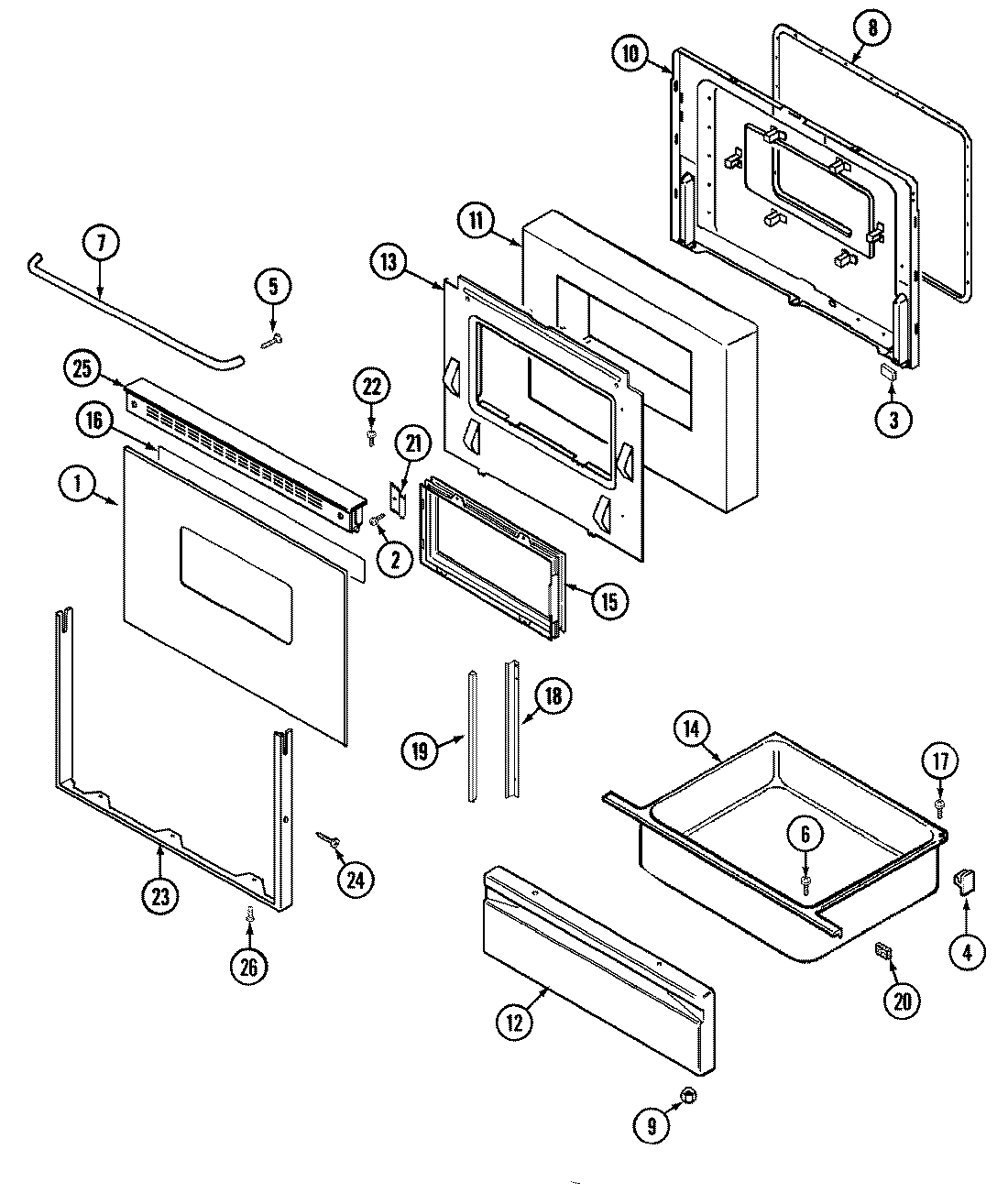

CRE8700CDW 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 7902P361-60
2MAY 7208P011-60
3MAY 8010P085-60
4WP8004P026-60 Whirlpool Support
6WP4159193 Whirlpool Screw
7MAY 7701P149-60
7MAY 7103P045-60
8GASKT-DOOR OVEN
9WPW10131078 Whirlpool Nut Assembly
10NUT, SNAP (ROUND-WHT)
10MAY 2402W209-19
10WP7103P114-60 Whirlpool Snap Nut
10MAY 7103P136-60
11MAY 4804F051-60
12MAY 2416F039-62
13MAY 3601F236-47
14MAY 3405F019-80
15MAY 7907P021-60
16TAPE, FOIL (3“ WIDE)
17SCREW
18MAY 3818F052-80
19MAY 7208P002-60
21MAY 3805F002-34
23MAY 7706P309-60
24WP98008545 Whirlpool Screw
25MAY 7706P305-60
26MAY 7101P290-60
