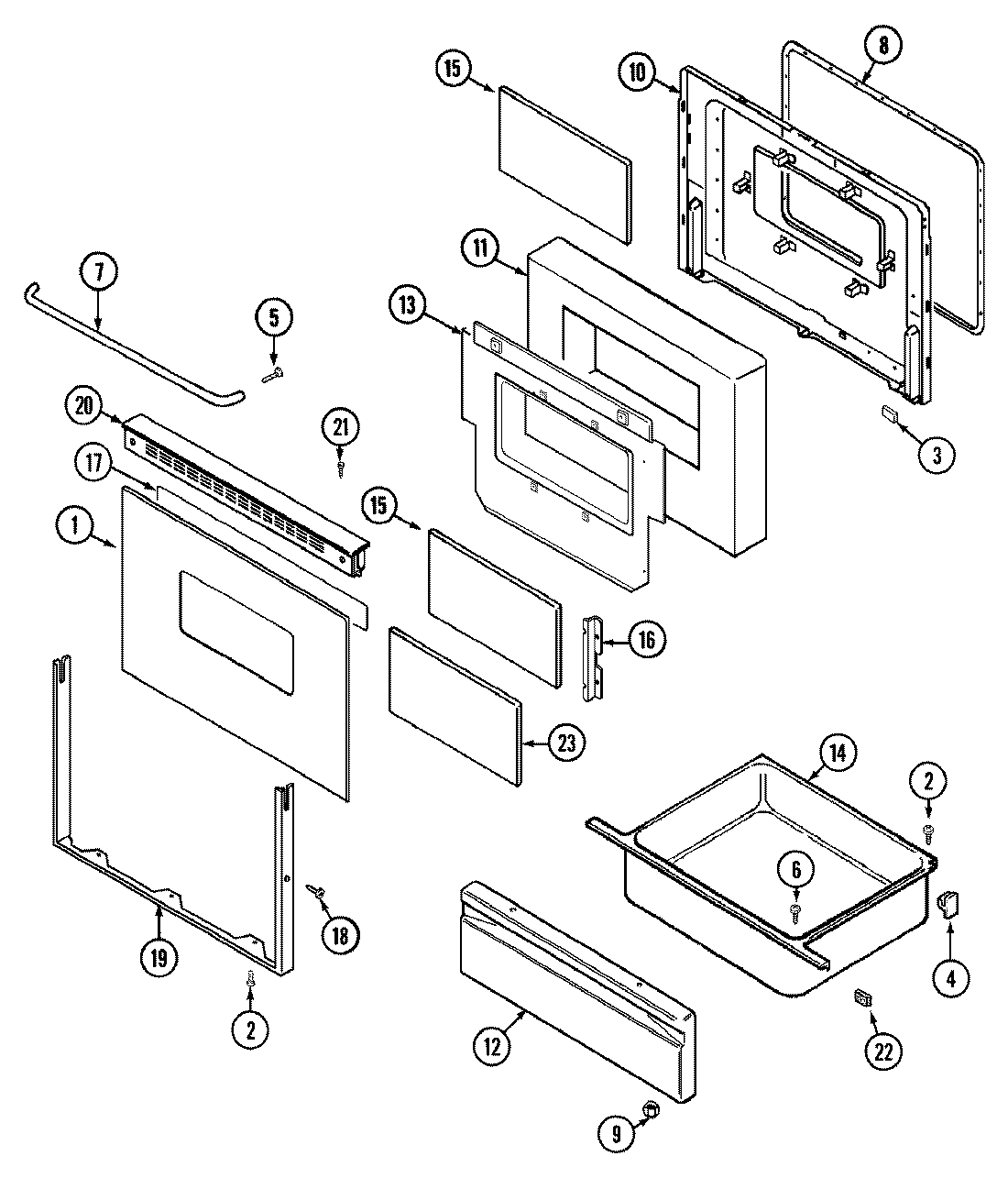

CRE8700CDW 04 – DOOR/DRAWER (CDL/CDW SERIES 19)

CRE8700CDW 04 – DOOR/DRAWER (CDL/CDW SERIES 19)

Written by

in

CRE8700CDW 04 – DOOR/DRAWER (CDL/CDW SERIES 19)

Products

PositionProduct
1MAY 7902P361-60
3MAY 8010P085-60
4WP8004P026-60 Whirlpool Support
7MAY 7701P149-60
8GASKT-DOOR OVEN
9WPW10131078 Whirlpool Nut Assembly
10NUT, SNAP (ROUND-WHT)
10NUT, SNAP (ROUND-BLK)
10MAY 2402W209-19
10MAY 7103P136-60
11MAY 74001842
12MAY 2416F039-62
13MAY 74001843
14MAY 3405F019-80
15MAY 74001841
16MAY 74001844
17TAPE, FOIL (3“ WIDE)
19MAY 7706P309-60
20MAY 7706P305-60
20SCREW
21WP98008545 Whirlpool Screw
22MAY 7208P011-60
23MAY 74002002
