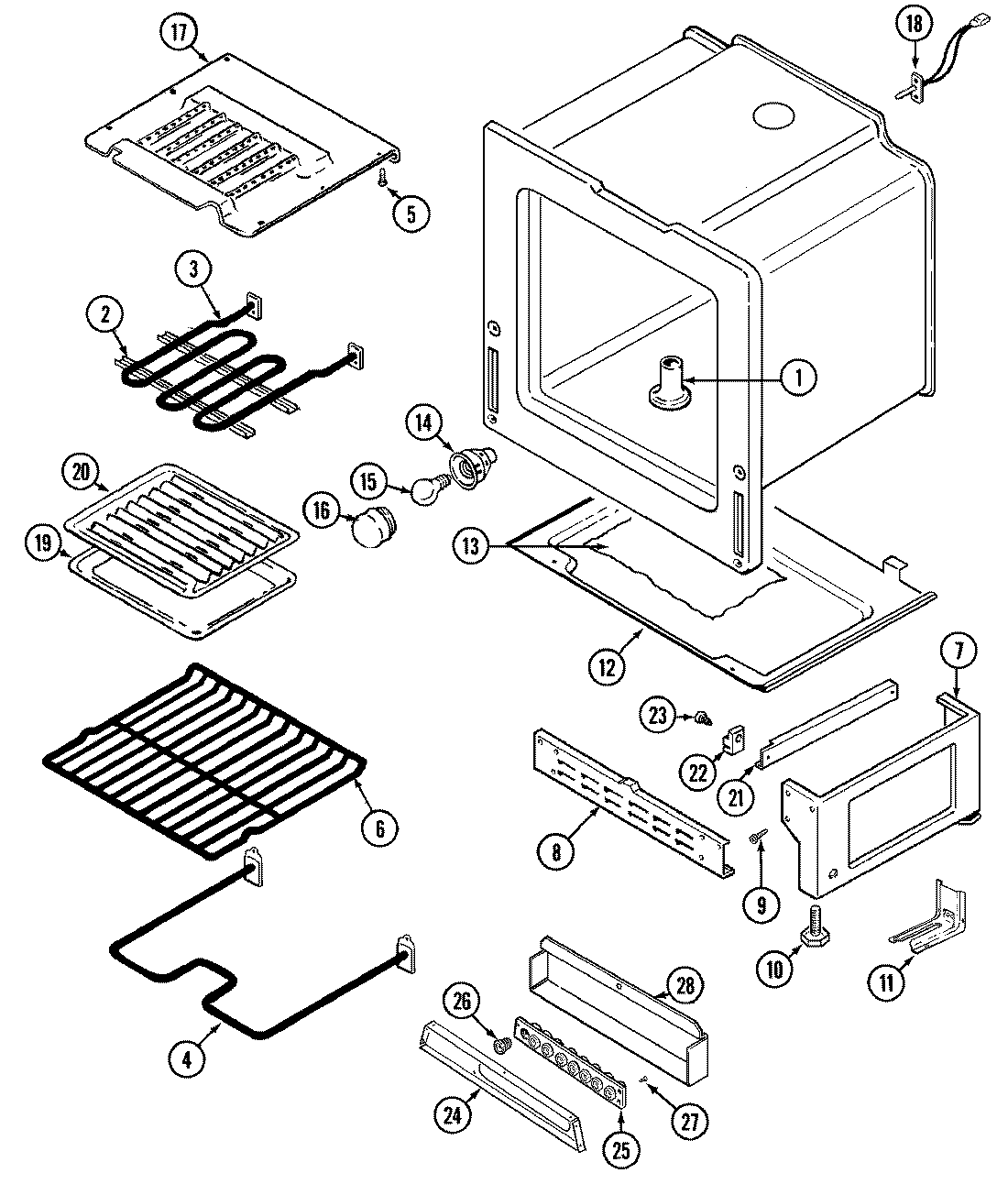

CRE8700DDE 04 – OVEN/BASE

Products

Position	Product
1	MAY 8026P019-60
2	MAY 3807F387-45
2	WP400021-1 Whirlpool Screw
3	WPY04000059 Whirlpool Bake Element
4	MAY Y04000058
6	WPW10282492 Whirlpool Oven Rack
7	MAY 74003016
7	MAY 4020W017-80
8	MAY 4020F001-80
10	W11665456 Whirlpool Range Level Foot
10	MAY 74001311
11	MAY 3801F218-51
11	MAY 7101P344-60
12	MAY 3804F112-51
13	MAY 8312P058-60
14	WP7407P182-60 Whirlpool Lamp
14	MAY 74003125
15	RANGE ONLY 40W 120V APPL BULB
16	WP9781049 Whirlpool Light Lens
17	MAY 3601F237-47
18	MAY 7430P010-60
19	MAY Y3401F02019
20	MAY Y3413F01619
21	MAY 3406F028-51
21	RUNNER, DRAWER
22	MAY 8004P033-60
22	MAY 74003566
22	WP488130 Whirlpool Air Conditioner Nut
23	SCREW
23	MAY 74001449
24	MAY 74001339
25	MAY 7401P031-60
26	MAY 7416P006-60
26	MAY 7416P005-60
26	MAY 7416P004-60
27	MAY 7101P068-60
28	MAY 4005F445-51
28	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
