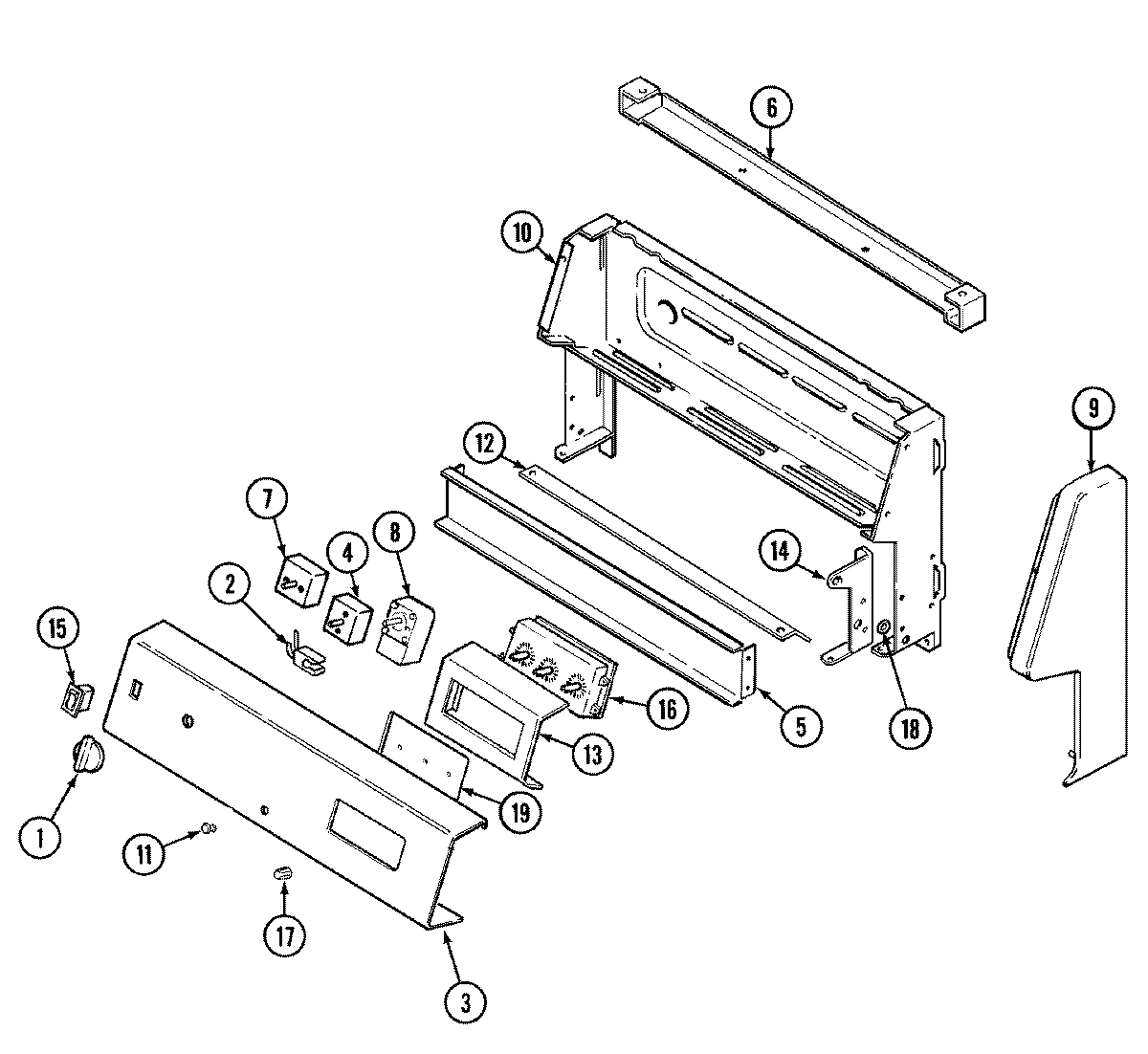

CRE9300CCL 02 – CONTROL PANEL

Products

Position	Product
NI	MAY 74001013
NI	MAY 74001202
NI	MAY 5195D093-60
NI	MAY 16000327
1	MAY 7737P035-60
1	MAY 7735P040-60
1	MAY 7739P047-60
2	W10852510 Whirlpool Indicator Light
3	MAY 74001192
4	MAY 7403P342-60
5	MAY 3802F088-51
6	MAY 4001F064-51
7	WP7403P239-60 Whirlpool Oven Switch
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
8	MAY 7404P100-60
8	SCREW
9	MAY 74001352
9	MAY 74001355
10	MAY 74002162
10	SCREW
11	W11690131 Whirlpool Light Lens
12	MAY 3604F201-80
13	WPY706189 Whirlpool Stove Screw
13	MAY 3801F264-45
14	SCREW (8BX3/8-NI)
14	MAY 8114P348-60
14	MAY 3418D098-60
14	MAY 3418D097-60
15	7403P067-60 Whirlpool Light Switch
16	MAY 7601P170-60
16	MAY 7201P056-60
17	MAY 7711P466-60
18	WP3195558 Whirlpool Nut
19	MAY 7902P109-60
