CRE9300CCL 03 – DOOR/DRAWER

CRE9300CCL 03 – DOOR/DRAWER

Written by

in

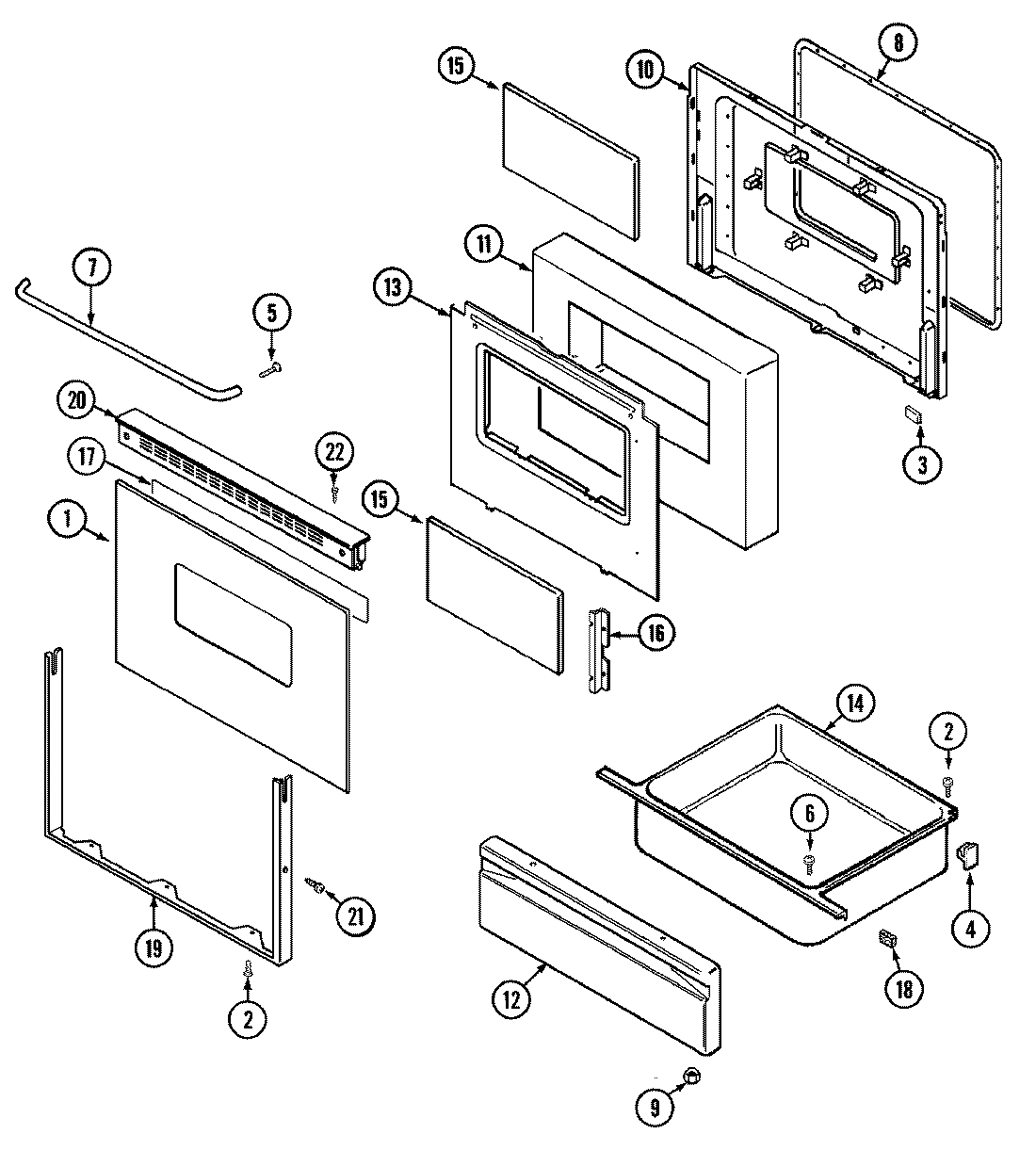

CRE9300CCL 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 7902P361-60
3MAY 8010P085-60
4MAY 74003566
4WP488130 Whirlpool Air Conditioner Nut
4WP8004P026-60 Whirlpool Support
5SCREW
6WP7101P072-60 Whirlpool Screw
7MAY 7701P149-60
8GASKT-DOOR OVEN
9WPW10131078 Whirlpool Nut Assembly
10NUT, SNAP (ROUND-WHT)
10NUT, SNAP (ROUND-BLK)
10MAY 7103P136-60
10MAY 74003244
10MAY 2402W209-19
11MAY 74001842
12MAY 7101P290-60
12MAY 2416F039-64
13MAY 74001843
14MAY 3405F019-80
14MAY 74003618
15MAY 74001841
16MAY 74001844
17MAY 8270P078-60
18MAY 7208P011-60
19MAY 7706P309-60
20MAY 7706P305-60
20SCREW
21WP98008545 Whirlpool Screw
22SCREW (8ABX1/2“-BLK)
