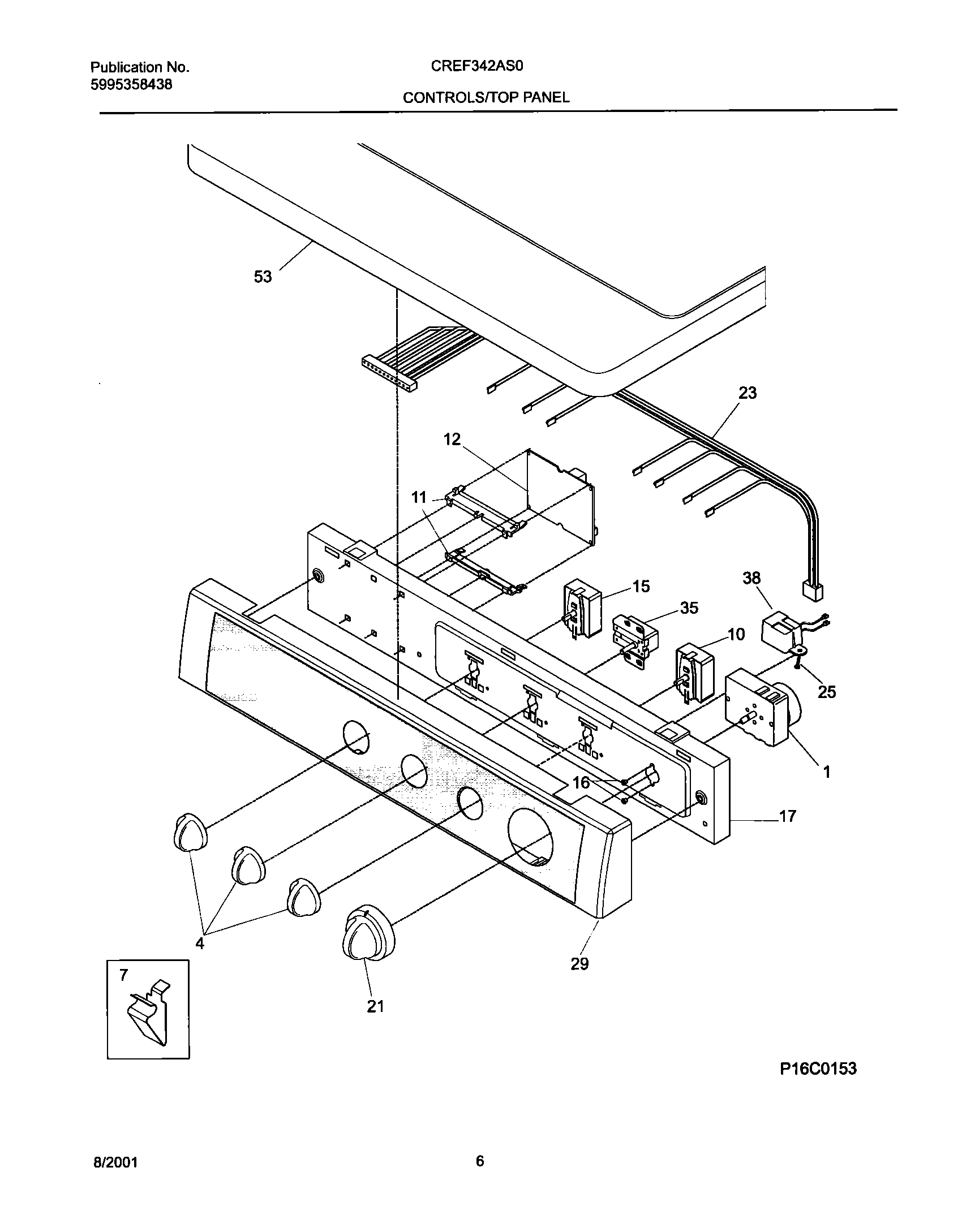

CREF342AS0 07 – CONTROL PANEL

Products

PositionProduct
NIWCI 134006200
1131789200 Frigidaire L-Dryer P-1 Timer
4134042800 Frigidaire Washer Rotary Knob
73205821 Frigidaire Clip
10134398300 Frigidaire Washer Dryer Turn-to-Start Switch
11BRACKET-CONTROL BOARD
12CONTROL BOARD,MOISTURE SENSOR
15Switch,temperature ,4 posn rotary
16218359202 Frigidaire Refrigerator Screw
17BRKT-CONT MTG-STACK DRYER
21DRYER TIMER KNOB WHITE
23WIRING HARNESS, CONTROL
255303015671 Frigidaire Bracket Termination Screw
29Console,frame ,white ,w/trim & tape
35Switch,2 position
38WCI 5303210285
53PANEL-TOP WHITE
