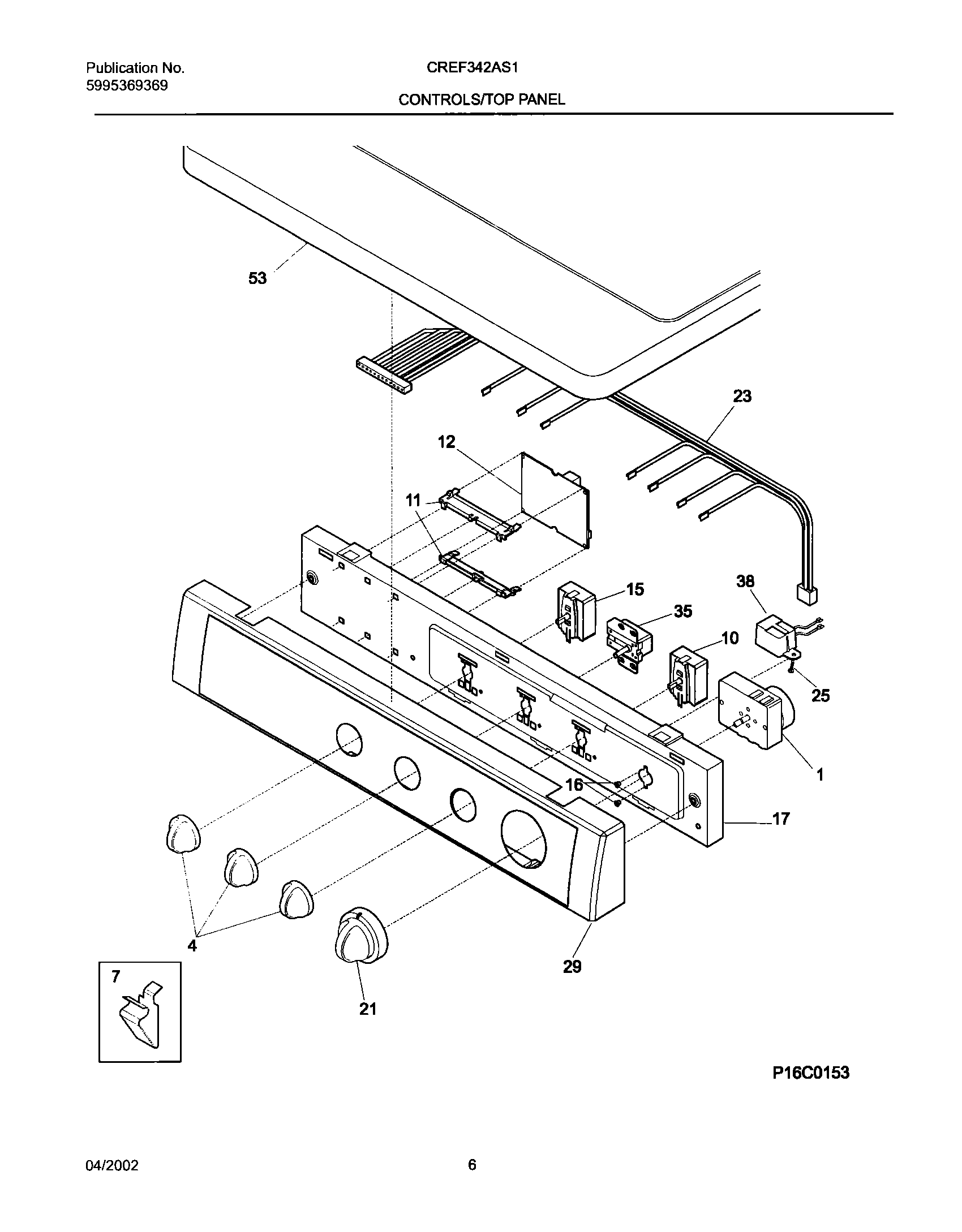

CREF342AS1 07 – CONTROL PANEL

Products

Position	Product
NI	WIRING HARNESS, MAIN
1	131789200 Frigidaire L-Dryer P-1 Timer
4	134042800 Frigidaire Washer Rotary Knob
7	3205821 Frigidaire Clip
10	134398300 Frigidaire Washer Dryer Turn-to-Start Switch
11	BRACKET-CONTROL BOARD
12	CONTROL BOARD,MOISTURE SENSOR
15	Switch,temperature ,4 posn rotary
16	218359202 Frigidaire Refrigerator Screw
17	BRKT-CONT MTG-STACK DRYER
21	DRYER TIMER KNOB WHITE
23	WIRING HARNESS, CONTROL
25	5303015671 Frigidaire Bracket Termination Screw
29	Console,frame ,white ,w/trim & tape
35	Switch,2 position
38	WCI 5303210285
53	PANEL-TOP WHITE
