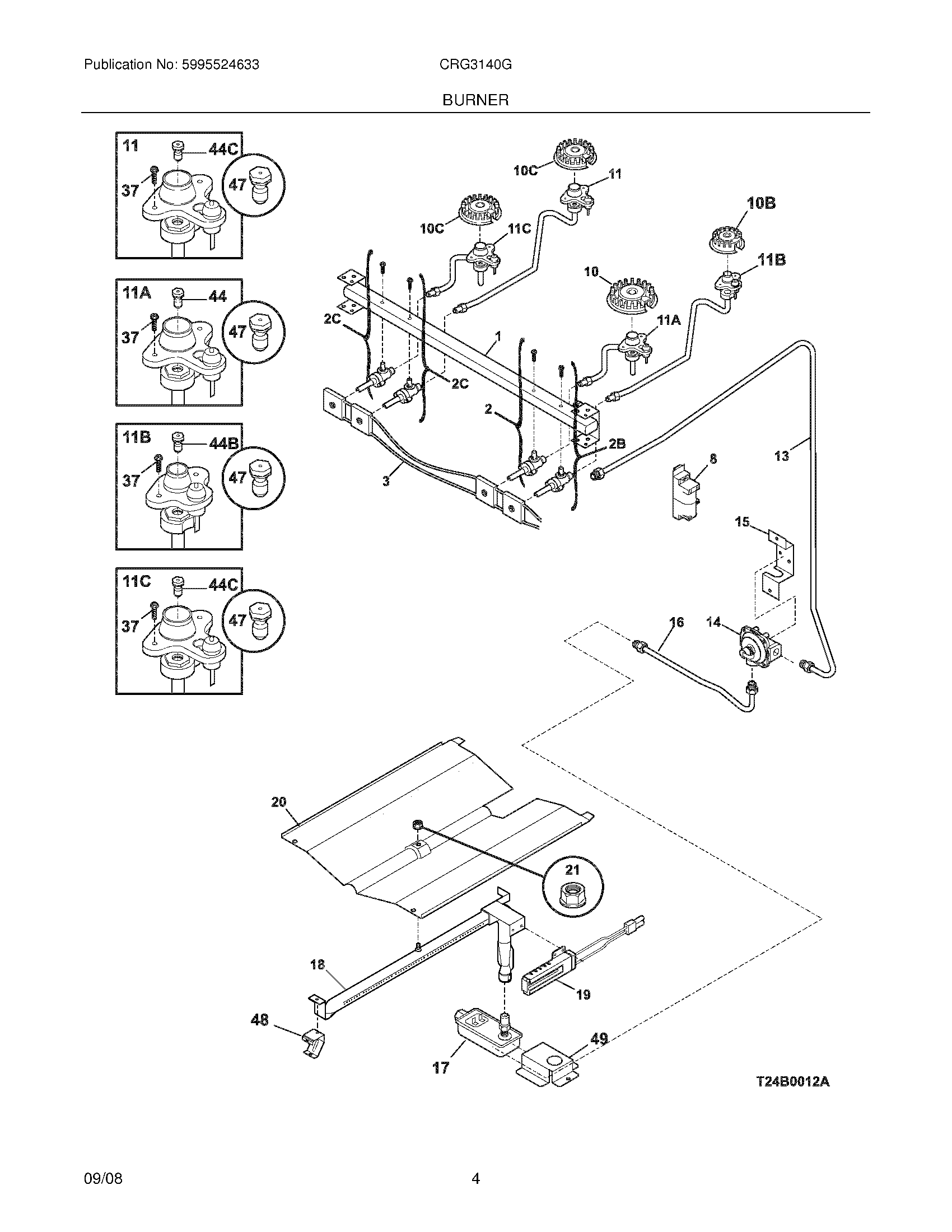

CRG3140GBBE 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	316248105 Frigidaire Instructions /Lp Conversion Kit Ns
NI	WIRING HARNESS,IGNITOR MODU
NI	316215600 Frigidaire Oven Screw
NI	5303271648 Frigidaire Oven Screw
1	316417900 Frigidaire Pipe Manifold
2C	316536000 Frigidaire Top Burner Valve
2B	316536003 Frigidaire Valve-Top Burner
2	316536001 Frigidaire Oven Valve
3	WCI 316219016
8	5304505695 Frigidaire Oven Module
10C	316558300 Frigidaire Oven 9.5L Sealed Burner
10	316438000 Frigidaire Sealed Burner 12K Assembly
10B	316438200 Frigidaire Range Sealed Burner, 5K
11	316536600 Frigidaire Igniter Assembly
11A	316536608 Frigidaire Orifice Igniter Assembly
11B	316536610 Frigidaire Igniter Assembly/Orifice
11C	316536602 Frigidaire Oven Igniter/Orifice Assembly
13	WCI 316447100
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	316065006 Frigidaire Tube P1
17	3203459 Frigidaire Oven Range Dual Gas Safety Valve
18	316114300 Frigidaire Oven Burner
19	5304509706 Frigidaire Range Oven Igniter
20	WCI 316496001
21	5303013272 Frigidaire Oven Nut
37	316240600 Frigidaire Igniter Mounting Screw
44	316527502 Frigidaire Oven Orifice
44C	316527500 Frigidaire Oven Burner Orifice
44B	316527504 Frigidaire Oven Orifice
47	GRLP3 Frigidaire Oven LP Conversion Kit
48	WCI 3018603
49	WCI 316416300
