CRG3480GSSB 05 – BURNER

CRG3480GSSB 05 – BURNER

Written by

in

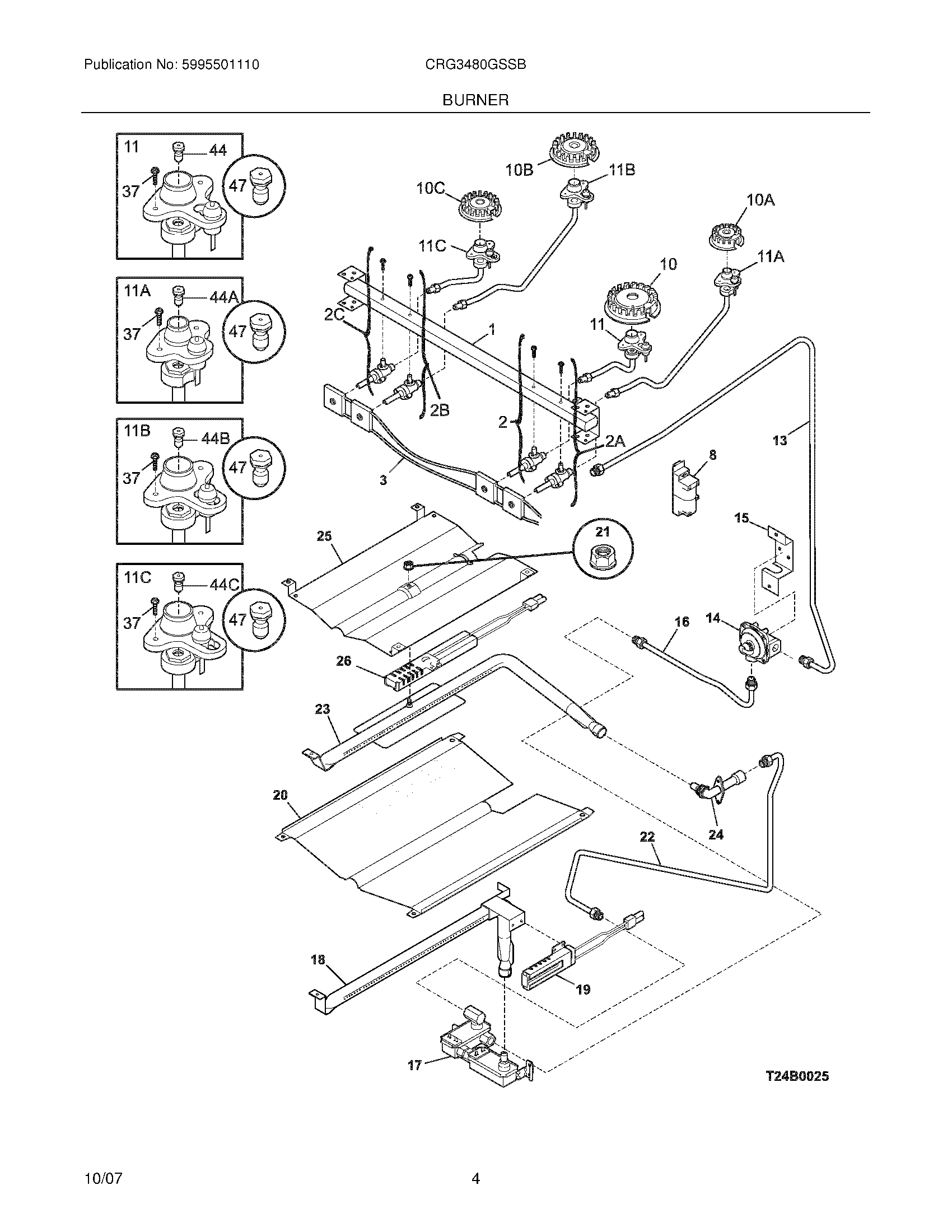

CRG3480GSSB 05 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NI316001017 Frigidaire Screw
NI316248105 Frigidaire Instructions /Lp Conversion Kit Ns
NIWIRING HARNESS,IGNITOR MODU
NI316498100 Frigidaire Shield
NI316215600 Frigidaire Oven Screw
NI316401500 Frigidaire Oven Cover
NI5303271648 Frigidaire Oven Screw
1316417900 Frigidaire Pipe Manifold
2CWCI 5303935234
2WCI 5303935236
2AWCI 5303935235
2B5303935232 Frigidaire Oven Valve
3IGNITOR SWITCH WIRE HARNESS
85304505695 Frigidaire Oven Module
10C316212400 Frigidaire Oven Primary Burner
10WCI 316223400
10BWCI 316212300
10AWCI 316206400
11316272000 Frigidaire Igniter Holder and Orifice
11A316237707 Frigidaire Igniter/Orifice Assembly
11BWCI 316237702
11C316237805 Frigidaire Orifice Assembly Igniter
13316489100 Frigidaire Oven Tube
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
165304507348 Frigidaire Oven Tube
17316404901 Frigidaire Oven Valve
18316404400 Frigidaire Oven Burner
195304534663 Frigidaire Igniter
205304519024 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
22WCI 316405401
23WCI 316404300
245304516894 Frigidaire Oven Elbow
25WCI 316401301
26316489401 Frigidaire Igniter Assembly
37316240600 Frigidaire Igniter Mounting Screw
44316237900 Frigidaire Oven Orifice Assembly
44C316237902 Frigidaire Orifice Top Burner
44AWCI 316237903
44B316237901 Frigidaire Oven Orifice
47GRLP3 Frigidaire Oven LP Conversion Kit
