CRG3490LSE 05 – BURNER

CRG3490LSE 05 – BURNER

Written by

in

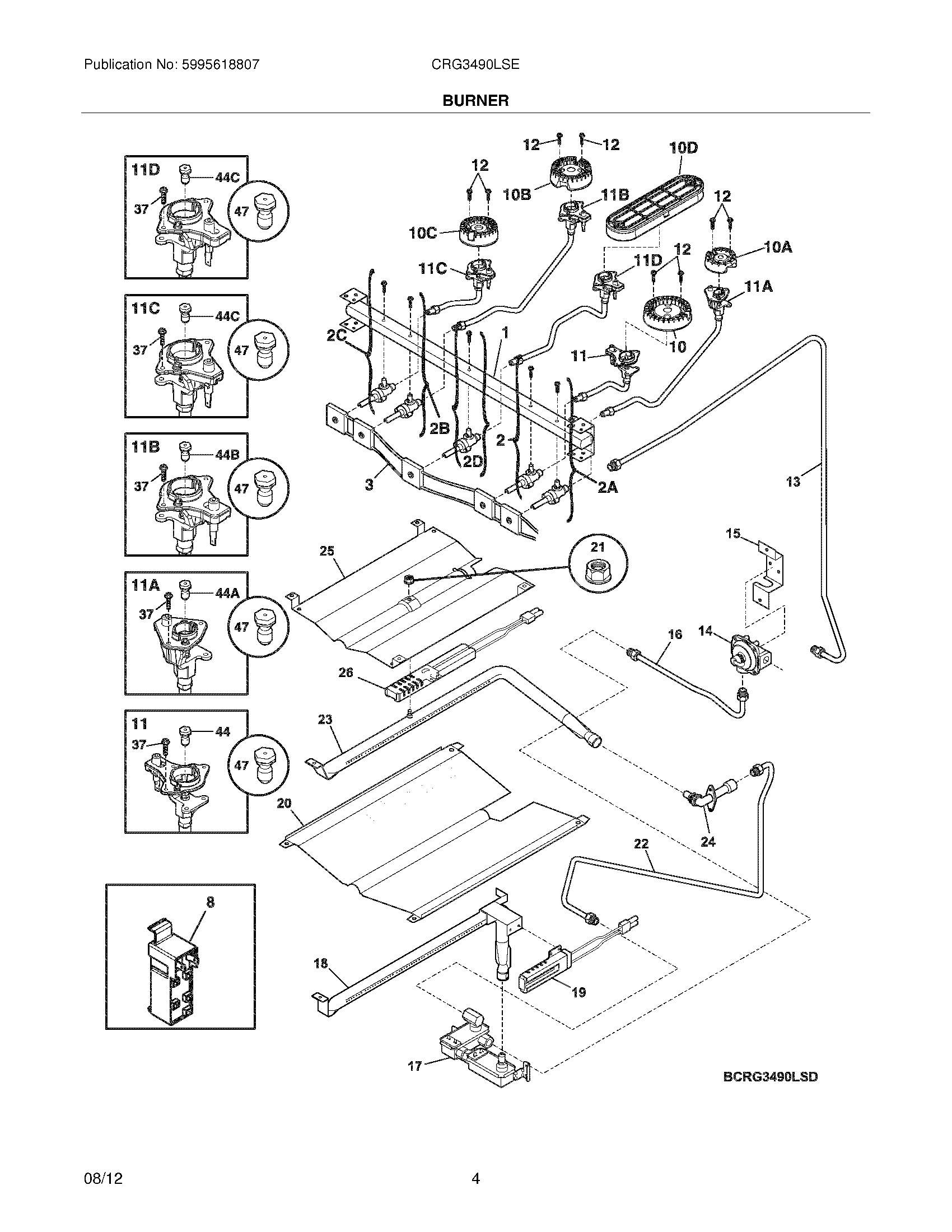

CRG3490LSE 05 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NI316001017 Frigidaire Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI241853202 Frigidaire Refrigerator Screw
NI5304494425 Frigidaire Oven Harness
NI316498100 Frigidaire Shield
NI316401500 Frigidaire Oven Cover
NI316257400 Frigidaire Oven Bracket
NI316021105 Frigidaire Oven Screw
NI316215600 Frigidaire Oven Screw
1316417901 Frigidaire Oven Manifold
2WCI 5303935236
2D5303935309 Frigidaire Top Burner Valve
2C5303935305 Frigidaire Oven Valve
2A5303935308 Frigidaire Oven Valve
2B5303935306 Frigidaire Oven Valve
3316580614 Frigidaire Oven Wiring Harness
85304508269 Frigidaire Oven Range Spark Module Kit
10D316559300 Frigidaire Oven Burner
10316438400 Frigidaire Range Sealed Burner, 16/17K
10A316438200 Frigidaire Range Sealed Burner, 5K
10B316438000 Frigidaire Sealed Burner 12K Assembly
10C316558300 Frigidaire Oven 9.5L Sealed Burner
11316536621 Frigidaire Igniter and Orifice Assembly
11D316536623 Frigidaire Igniter/Orifice Assembly
11C316536602 Frigidaire Oven Igniter/Orifice Assembly
11A316536610 Frigidaire Igniter Assembly/Orifice
11B316536612 Frigidaire Igniter Assembly/Orifice
12316540900 Frigidaire Oven Screw
13316489101 Frigidaire Suppl Tube-Manifold
14316091711 Frigidaire Regulator Assembly
15316091600 Frigidaire Oven Bracket
165304507348 Frigidaire Oven Tube
17316404901 Frigidaire Oven Valve
18316404400 Frigidaire Oven Burner
195304506545 Frigidaire Gas Oven Range Igniter
205304519024 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
225304507768 Frigidaire Oven Tube
23316404302 Frigidaire Oven Burner
245304516894 Frigidaire Oven Elbow
25WCI 316401301
26BAKE IGNITOR
37316240600 Frigidaire Igniter Mounting Screw
44B316527502 Frigidaire Oven Orifice
44A316527504 Frigidaire Oven Orifice
44C316527500 Frigidaire Oven Burner Orifice
44316527508 Frigidaire Oven Orifice
47GRLP4 Frigidaire Oven LP Conversion Kit
