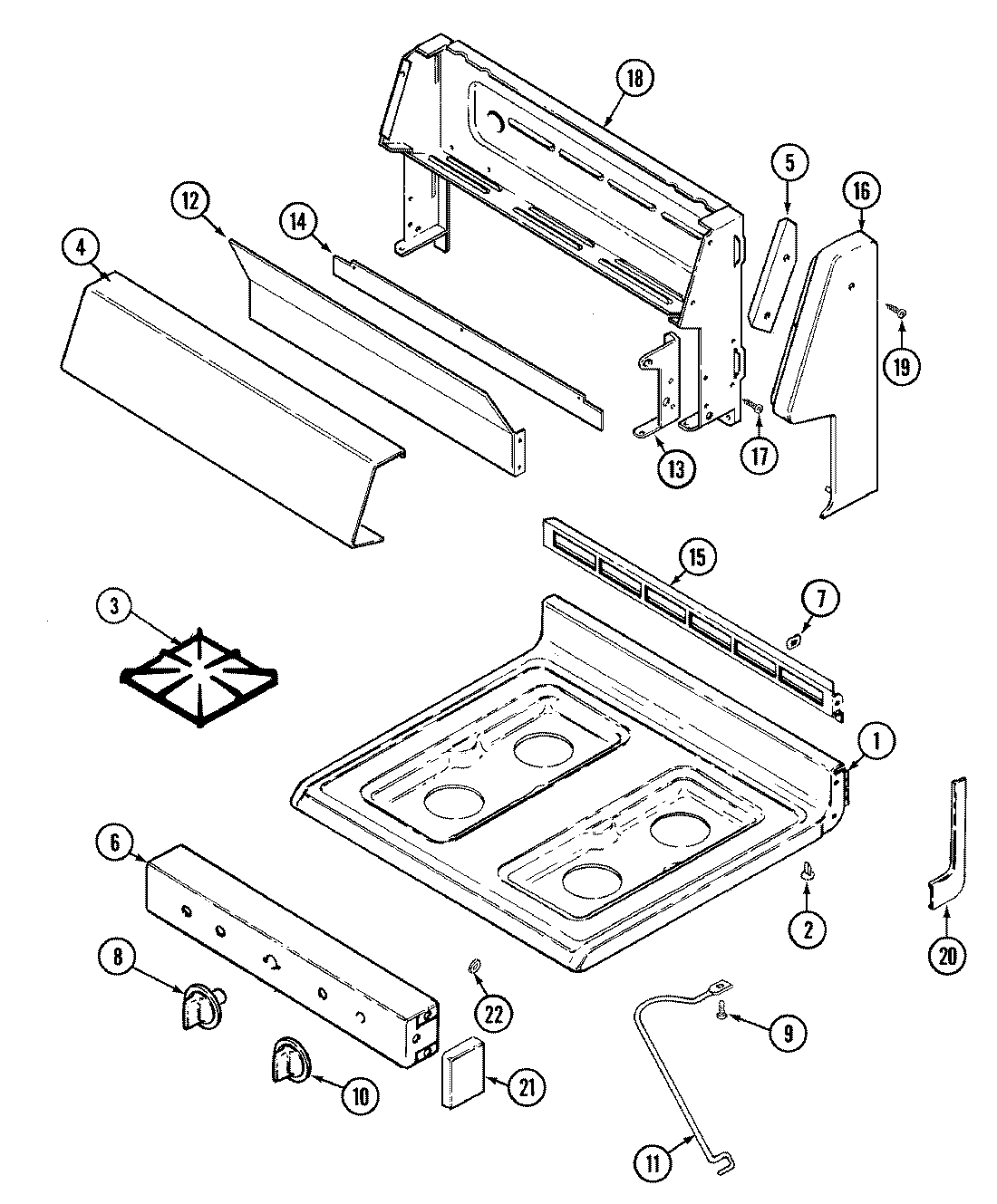

CRGA300AAW 05 – TOP ASSEMBLY/CONTROL PANEL
Written by
in
CRGA300AAW 05 – TOP ASSEMBLY/CONTROL PANEL
Products
Position
Product
NI
MAY 8113P042-60
NI
MAY 16002079
1
MAY 2001W086-81
2
MAY 8016P015-60
3
MAY 2003W026-00
4
MAY 4851S043-59
5
MAY 3807F450-45
5
MAY 3807F449-45
6
MAY 2616F102-09
6
MAY 7101P329-60
7
WP3195558 Whirlpool Nut
8
MAY 7731P085-60
9
MAY 7101P280-60
10
WP7711P135-60 Whirlpool Knob
11
MAY 7809P020-60
12
MAY 3604F188-09
13
MAY 3418D098-60
13
MAY 8114P348-60
13
MAY 3418D097-60
14
MAY 8036P003-60
15
MAY 3608F042-09
16
MAY 7726P052-60
16
MAY 7726P051-60
16
MAY 7101P317-60
17
SCREW (8BX3/8-NI)
18
MAY 4001F091-51
18
MAY 4005F448-45
19
WP98008545 Whirlpool Screw
20
MAY 7746P030-60
20
MAY 7746P031-60
21
MAY 7713P018-60
22
MAY 7112P092-60
←
