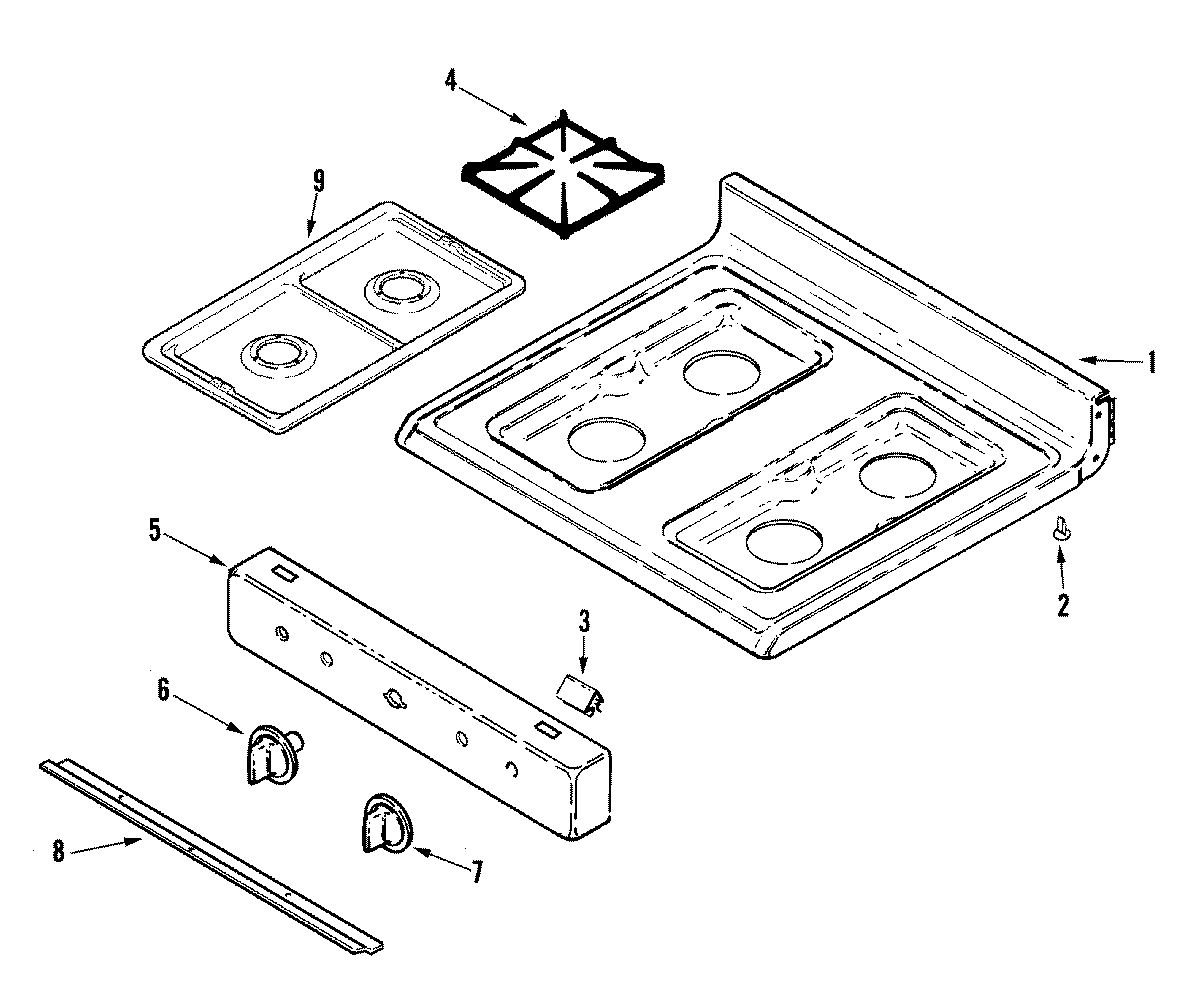

CRGA400BAW 06 – TOP ASSEMBLY

CRGA400BAW 06 – TOP ASSEMBLY

Written by

in

CRGA400BAW 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74002440
2MAY 8016P015-60
3MAY 7112P087-60
4MAY 74001653
4WP7518P464-60 Whirlpool Burner Grate
4MAY 2003W027-00
5MAY 74002516
5MAY 7101P074-60
5SCREW (8BX3/8-NI)
5MAY 7109P015-60
6MAY 7731P096-60
7WP7733P508-60 Whirlpool Knob
7MAY 74002744
8SCREW
8MAY 74002447
9MAY 5401A452-60
