CRGA700AAW 05 – OVEN/BASE – Aparts

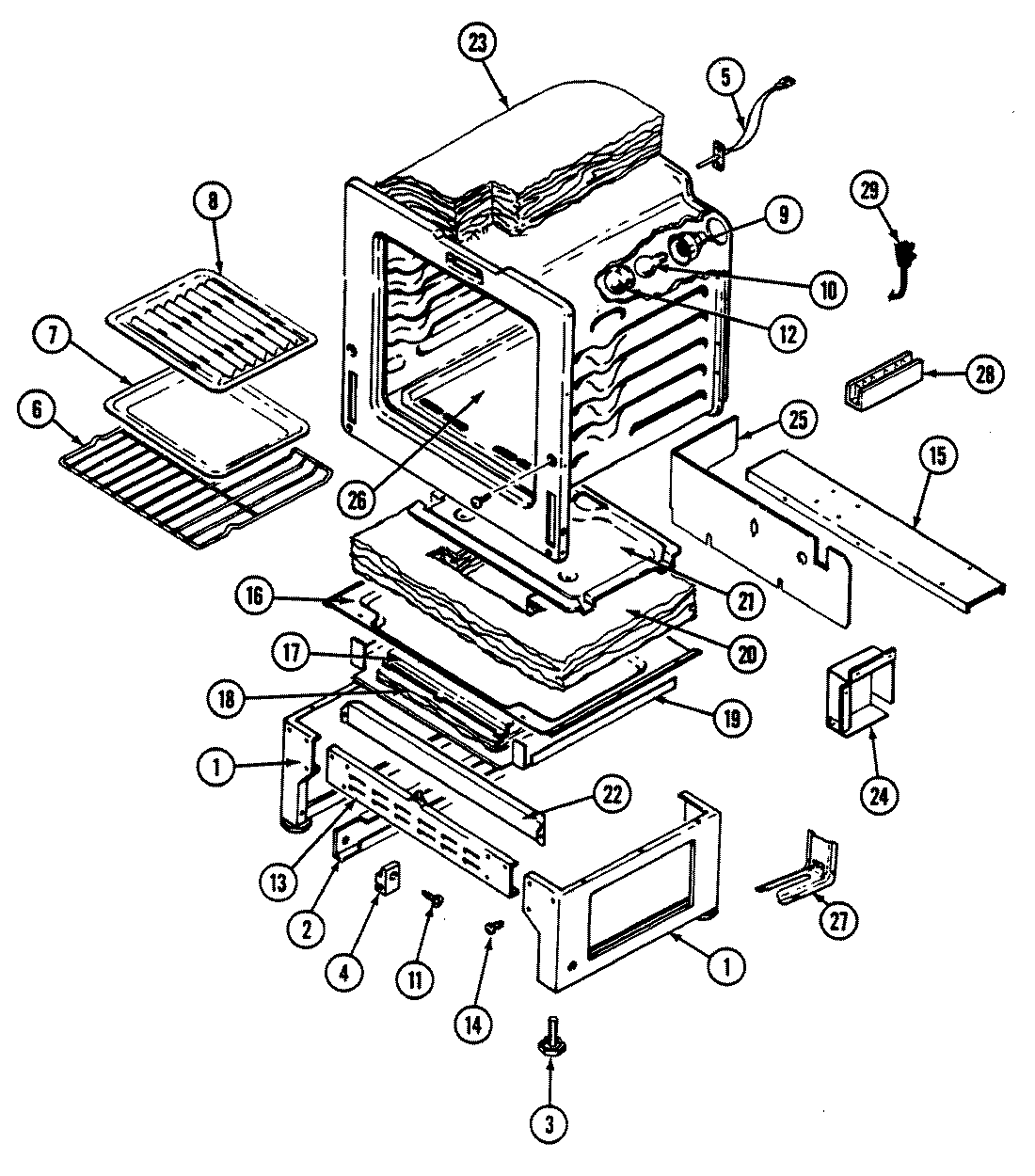

CRGA700AAW 05 – OVEN/BASE

Products

Position	Product
NI	MAY 5185D280-60
NI	MAY 5170P204-60
1	MAY 4020W011-80
2	MAY 3406F028-51
3	MAY 7101P306-60
4	MAY 8004P033-60
5	MAY 7430P009-60
6	MAY 7801P047-60
7	MAY Y3401F02019
8	MAY Y3413F01619
9	WP7407P182-60 Whirlpool Lamp
10	RANGE ONLY 40W 120V APPL BULB
11	SCREW
12	WP9781049 Whirlpool Light Lens
13	MAY 4020F001-80
14	MAY 7101P290-60
15	MAY 3807F447-51
16	MAY 3804F112-47
17	MAY 3604F204-51
18	INSULATION, DRAWER & SHIELD
19	MAY 3604F205-51
20	MAY 4804F014-60
21	MAY 3401F025-47
22	MAY 3601F208-45
23	MAY 4804F036-60
23	MAY 4804F038-60
24	MAY 3807F421-51
25	MAY 4005F429-51
26	MAY 5504M004-19
27	MAY 3801F218-51
27	MAY 7101P289-60
28	MAY 7401P037-60
29	MAY 7402P043-60
