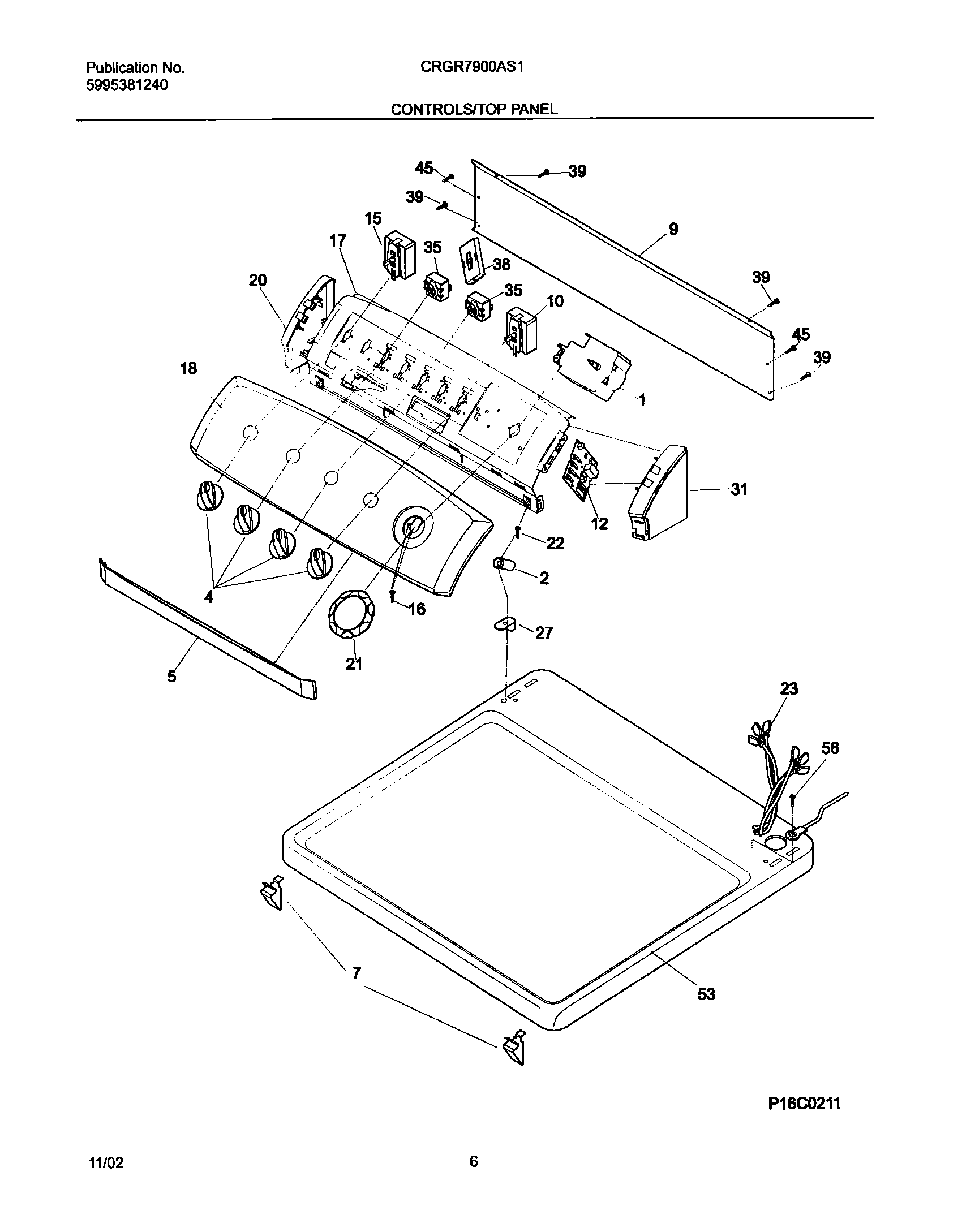

CRGR7900AS1 07 – CONTROLS/TOP PANEL

Products

Position	Product
1	131930600 Frigidaire Dryer Timer P1 "T"
2	WCI 134096100
4	134844410 Frigidaire Washer Dryer Selector Knob White
5	WCI 134019900
7	3205821 Frigidaire Clip
9	WCI 131992900
10	134398300 Frigidaire Washer Dryer Turn-to-Start Switch
12	CONTROL BOARD,MOISTURE SENSOR
15	WCI 131641900
16	218359202 Frigidaire Refrigerator Screw
17	Bracket,control mtg.
18	WCI 134155600
20	WCI 134019610
21	134886700 Frigidaire Dryer Timer Knob
22	WCI 131266300
23	WCI 134134000
27	CLIP-CONSOLE MTG
31	WCI 134019600
35	Switch,2 position
38	WCI 131959200
39	131168200 Frigidaire Dryer Screw
45	131205100 Frigidaire Screw
53	WCI 134086802
56	131243800 Frigidaire Screw
