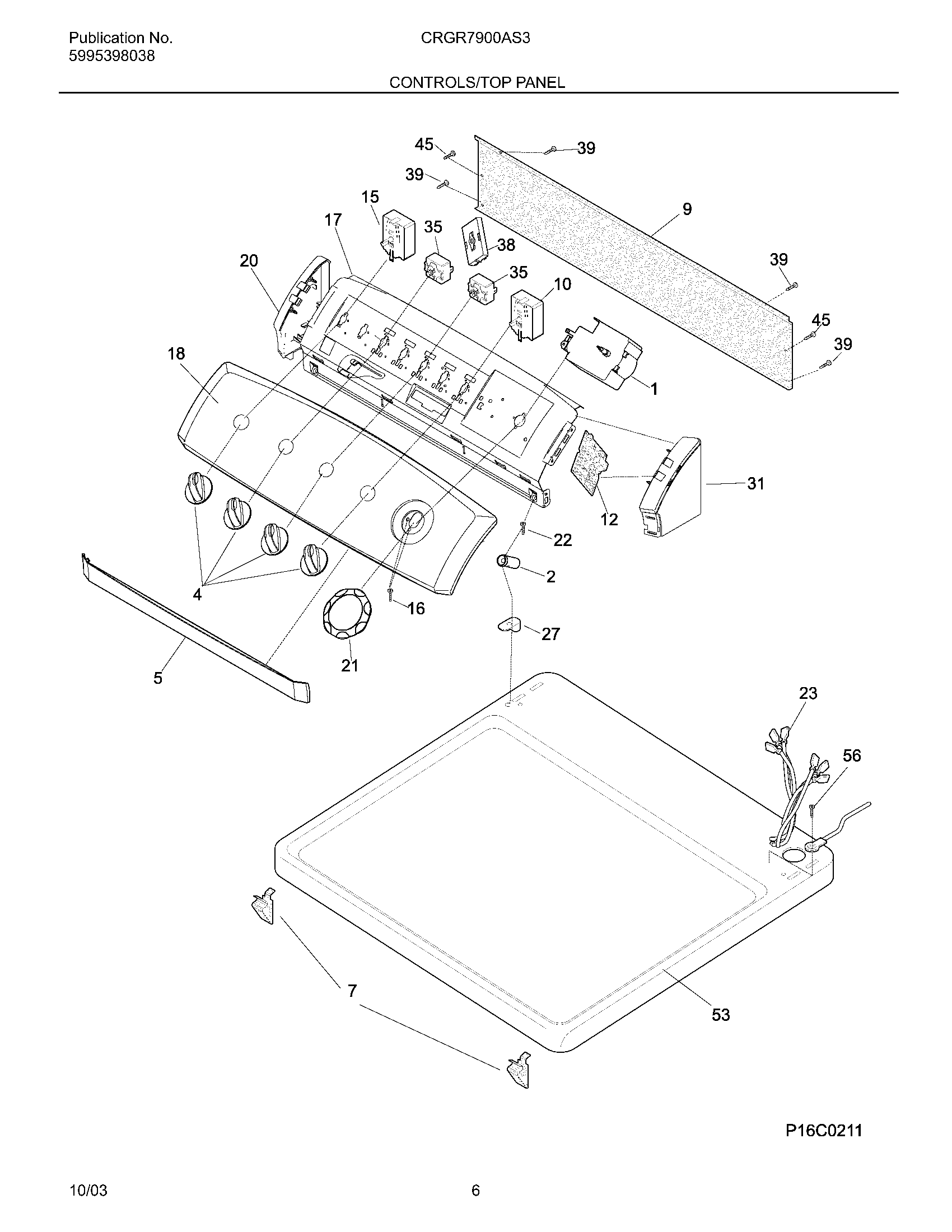

CRGR7900AS3 07 – CONTROLS/TOP PANEL

CRGR7900AS3 07 – CONTROLS/TOP PANEL

Written by

in

CRGR7900AS3 07 – CONTROLS/TOP PANEL

Products

PositionProduct
1131930600 Frigidaire Dryer Timer P1 "T"
2WCI 134096100
4134844410 Frigidaire Washer Dryer Selector Knob White
5WCI 134019900
73205821 Frigidaire Clip
9WCI 131992900
10134398300 Frigidaire Washer Dryer Turn-to-Start Switch
12WCI 134216300
15WCI 131641900
16218359202 Frigidaire Refrigerator Screw
17Bracket,control mtg.
18WCI 134155600
20WCI 134019610
21134886700 Frigidaire Dryer Timer Knob
22WCI 131266330
23WCI 134134000
27CLIP-CONSOLE MTG
31WCI 134019600
35Switch,2 position
38WCI 131959200
39131168200 Frigidaire Dryer Screw
45131205100 Frigidaire Screw
53WCI 134086802
56131243800 Frigidaire Screw
