CRL5300CXL 01 – BODY

CRL5300CXL 01 – BODY

Written by

in

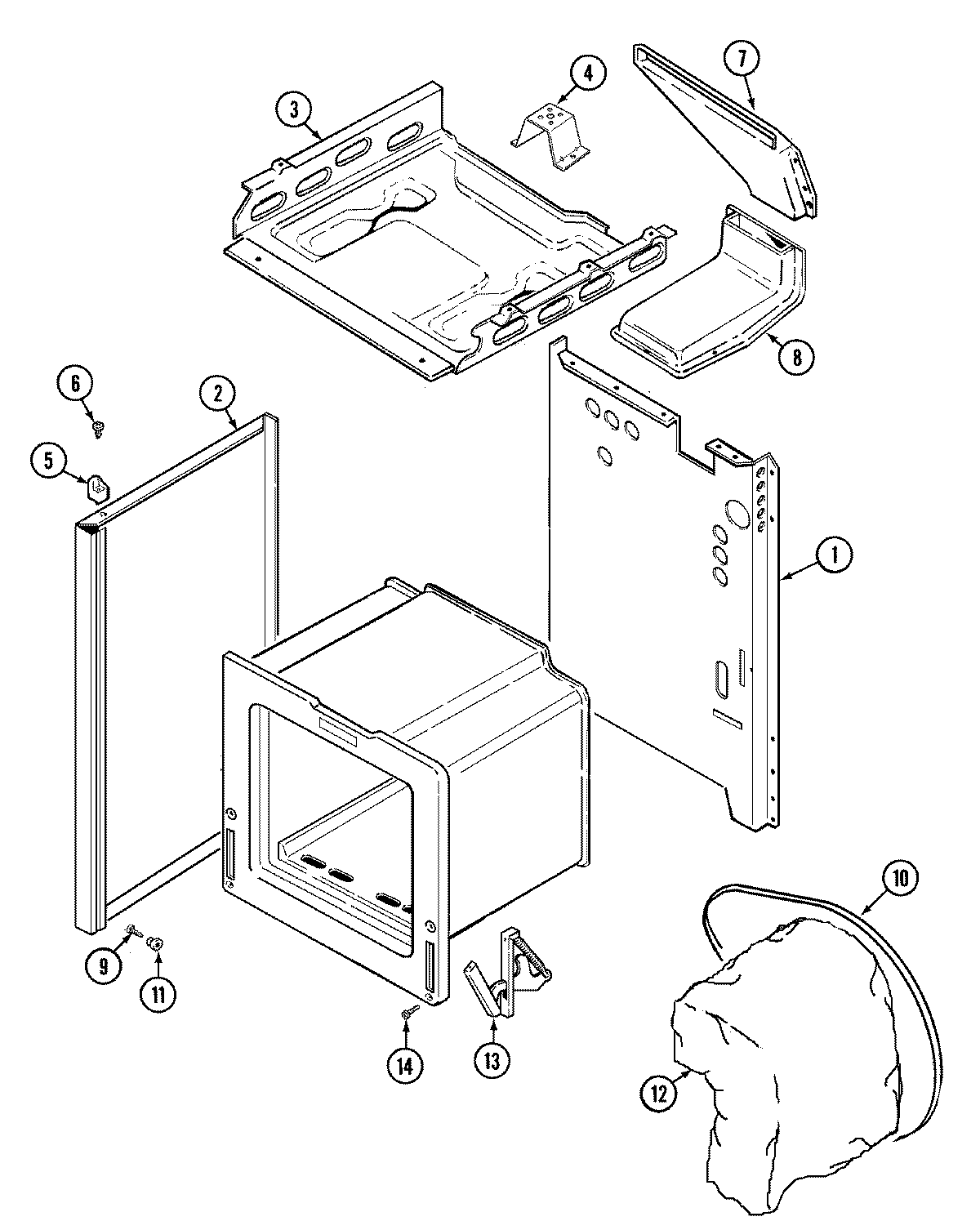

CRL5300CXL 01 – BODY

Products

PositionProduct
1MAY 74002364
2MAY 7003P067-60
2MAY 74002273
3MAY 74002357
4MAY 74002427
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6MAY 7101P313-60
7SCREW
7MAY 74002412
8MAY 74002367
8WP74003976 Whirlpool Screw
9MAY Y707347
10MAY 74002369
11MAY 8004P024-60
12MAY 74002634
12MAY 74002370
13MAY 7106P055-60
13W10876639 Whirlpool Door Hinge Assembly
14SCREW (10-24X5/16-NI)
