CRL5300CXW 02 – CONTROL PANEL/TOP ASSEMBLY – Aparts

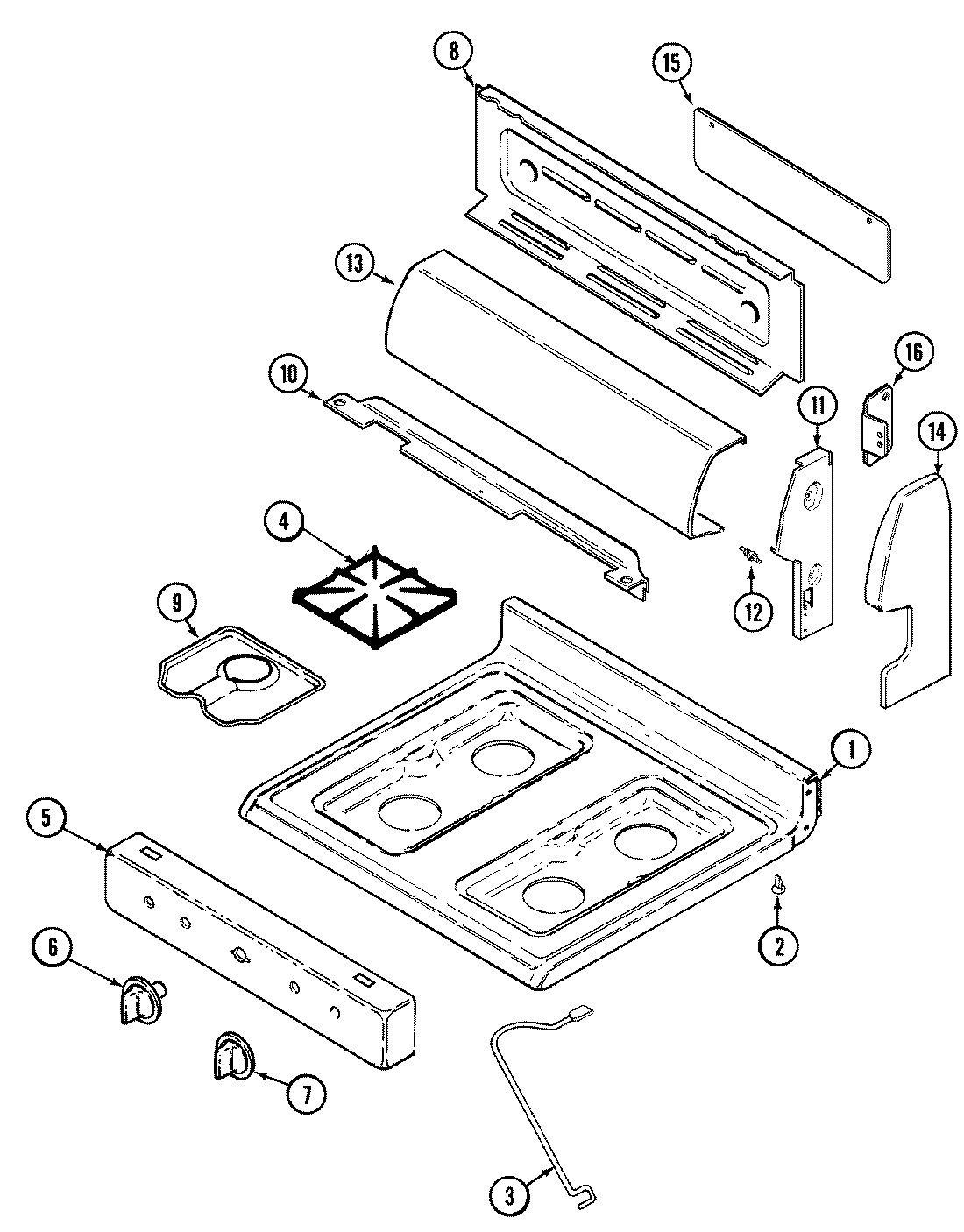

CRL5300CXW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
NI	MAY 16000327
NI	MAY 74002355
1	MAY 74002410
2	MAY 8016P015-60
3	MAY 74001170
4	MAY 2003W027-00
4	WP7518P464-60 Whirlpool Burner Grate
5	MAY 74002411
5	MAY 7101P074-60
5	MAY 7109P015-60
6	WP74002419 Whirlpool Thermal Knob
7	WP74002353 Whirlpool Control Knob
8	MAY 74002450
9	MAY 5401A433-60
10	MAY 74002401
10	MAY 74002409
11	MAY 74002402
11	MAY 74002403
11	SCREW (8BX3/8-NI)
12	MAY 74002404
13	MAY 74002964
13	MAY 74003868
14	WPY706189 Whirlpool Stove Screw
14	MAY 74002636
14	MAY 74002637
15	MAY 74002448
16	MAY 74002639
16	SCREW
