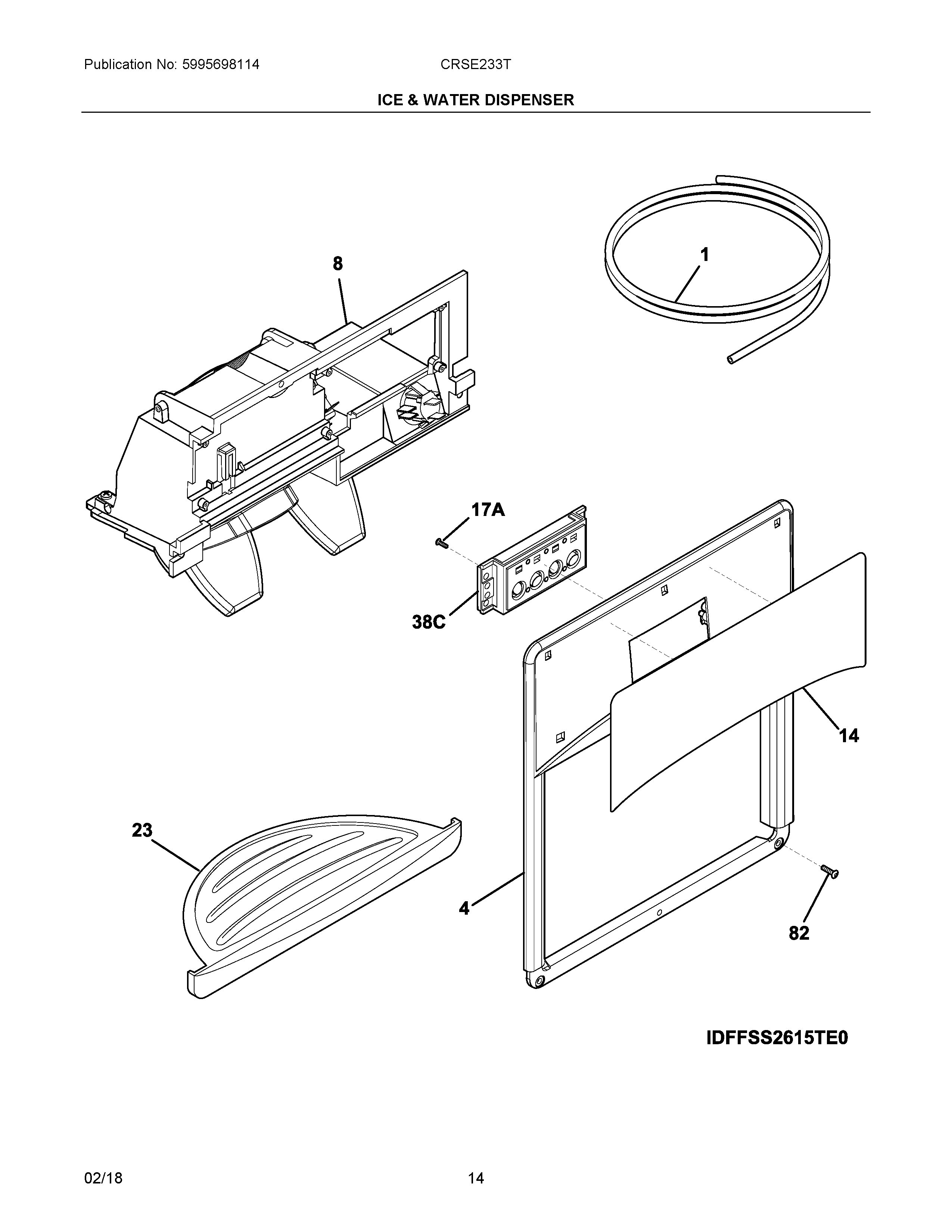

CRSE233TS0 08 – ICE & WATER DISPENSER

CRSE233TS0 08 – ICE & WATER DISPENSER

Written by

in

CRSE233TS0 08 – ICE & WATER DISPENSER

Products

PositionProduct
NI5303918596 Frigidaire Refrigerator Dispenser Heater Kit
NICA5304521693 Frigidaire Refrigerator Harness-Facade W/Li
NIA218976439 Frigidaire Refrigerator Water Inlet Tube
1218976438 Frigidaire Refrigerator Tube
4241679009 Frigidaire Dispenser Front Panel
8240563639 Frigidaire Refrigerator Dispenser Module
14LABEL-MODULE COVER, BLACK
17A241679901 Frigidaire Refrigerator Screw
23241649007 Frigidaire Drip Tray Assembly (Grey)
38C5304525097 Frigidaire Refrigerator 4 Button Switch Assembly
825304453707 Frigidaire Oven Screw
