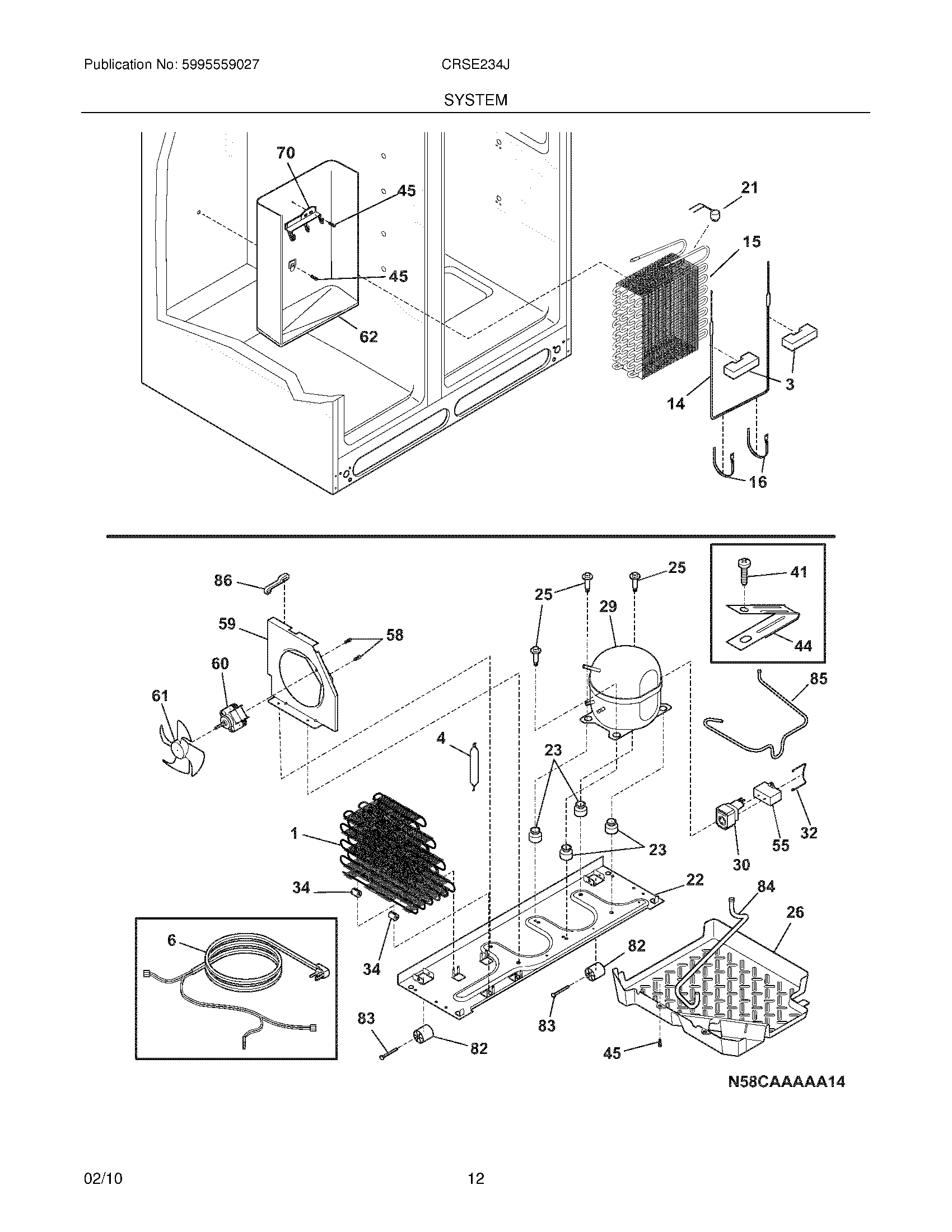

CRSE234JW3 13 – SYSTEM

Products

Position	Product
NI	218252201 Frigidaire Refrigerator Screw
NI	240359403 Frigidaire Refrigerator Fan Shroud Screw
NI	WCI 5303918222
NI	240346701 Frigidaire Refrigerator Foam Seal Tape
NI	5303918328 Frigidaire Refrigerator OS1 Heat Exchanger Kit
NI	WCI 241737801
1	WCI 240333602
3	218679613 Frigidaire Refrigerator Evaporator Coil Block
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	WCI 241586801
14	242044113 Frigidaire Refrigerator Defrost Heater Assembly
15	5303918286 Frigidaire Refrigerator Evaporator Kit P-1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
21	5303918214 Frigidaire Refrigerator Defrost Thermostat Kit
22	WCI 240330010
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 240491503
26	241697603 Frigidaire Defrost Pan
29	5304475098 Frigidaire Refrigerator Compressor Kit
30	241707709 Frigidaire Refrigerator Starter
32	241715901 Frigidaire Strap-Cover
34	240405201 Frigidaire Refrigerator Grommet
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
44	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455650 Frigidaire Refrigerator Screw
55	5304464438 Frigidaire Compressor Run Capacitor
58	240569202 Frigidaire Refrigerator Screw
59	241946106 Frigidaire Refrigerator Shroud-Cond Fan
60	297279500 Frigidaire Refrigerator Condenser Fan Motor
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
62	241719606 Frigidaire Refrigerator Trough
70	218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	241957901 Frigidaire Refrigerator Tube-Drain
85	WCI 241844801
86	240409302 Frigidaire Refrigerator Condenser Tube Spacer
