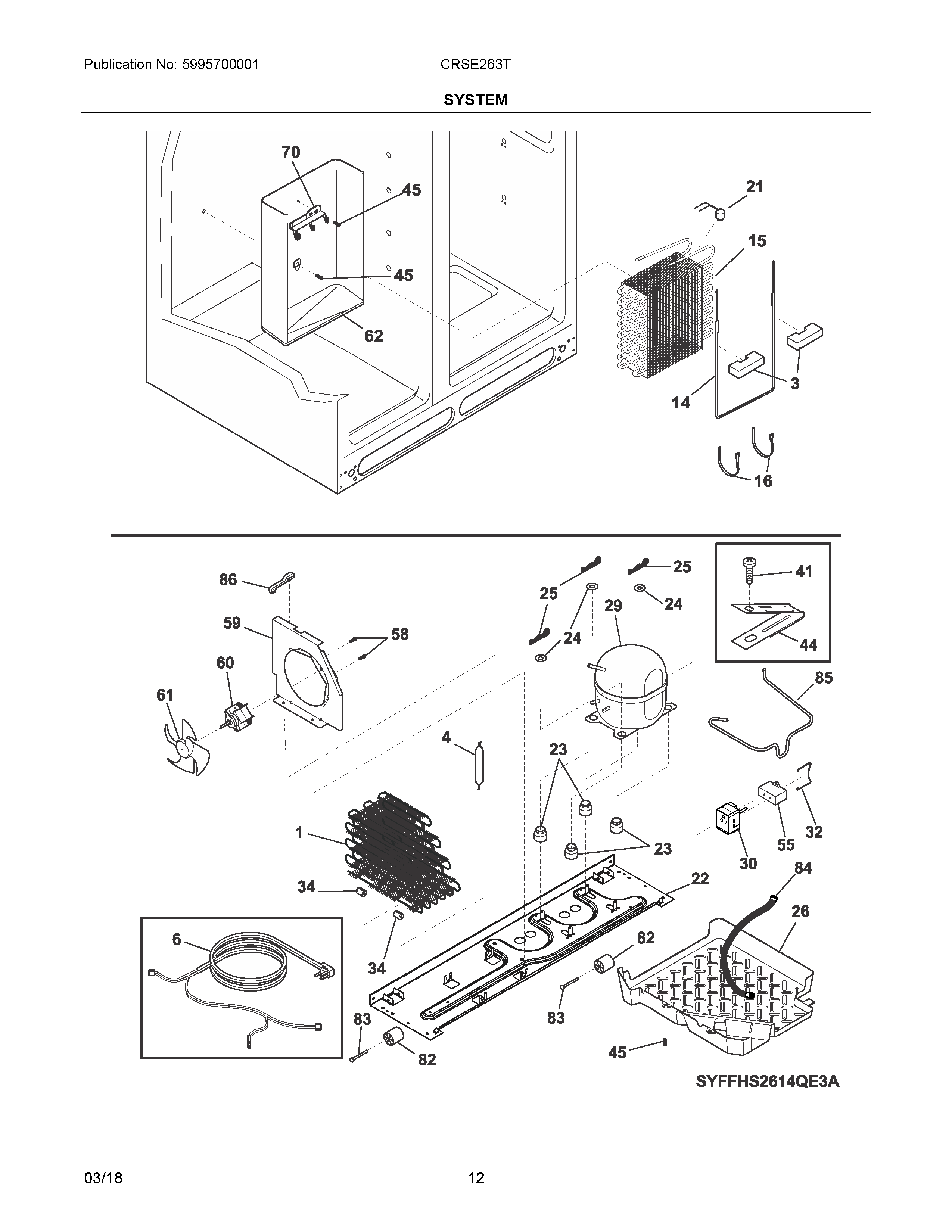

CRSE263TB0 07 – SYSTEM

CRSE263TB0 07 – SYSTEM

Written by

in

CRSE263TB0 07 – SYSTEM

Products

PositionProduct
NIA218252201 Frigidaire Refrigerator Screw
NIA240346701 Frigidaire Refrigerator Foam Seal Tape
NIA242036801 Frigidaire Refrigerator Plastic Clip
NIB240359403 Frigidaire Refrigerator Fan Shroud Screw
NIA5304521777 Frigidaire Refrigerator Wiring Harness
1242106605 Frigidaire Refrigerator Condenser
3218679614 Frigidaire Refrigerator Evaporator Coil Block
45303305677 Frigidaire Replacement Filter Dryer Filters
65304521699 Frigidaire Refrigerator Machine Wiring Harness
14242044113 Frigidaire Refrigerator Defrost Heater Assembly
155303918284 Frigidaire Refrigerator Evaporator Kit P-1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
215303918214 Frigidaire Refrigerator Defrost Thermostat Kit
22240330014 Frigidaire Refrigerator Compressor Base
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24241812301 Frigidaire Refrigerator Compressor Mount Washer
25242037702 Frigidaire Refrigerator Spring Clip
26241697603 Frigidaire Defrost Pan
295304524545 Frigidaire Refrigerator Compressor
30297259515 Frigidaire Refrigerator Start Relay
32216954300 Frigidaire Refrigerator Clip
34240405201 Frigidaire Refrigerator Grommet
41240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455650 Frigidaire Refrigerator Screw
55297286803 Frigidaire Refrigerator Run Capacitor
58240569202 Frigidaire Refrigerator Screw
59241946106 Frigidaire Refrigerator Shroud-Cond Fan
60MOTOR-CONDENSER FAN
61241639502 Frigidaire Refrigerator Condenser Fan Blade
625304532798 Frigidaire Refrigerator Drain Trough
70218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
82240335202 Frigidaire Refrigerator Roller
835304455655 Frigidaire Refrigerator Rivet
84241830905 Frigidaire Lower Drain Tube
85241856909 Frigidaire Refrigerator Connector Tube
86240409302 Frigidaire Refrigerator Condenser Tube Spacer
