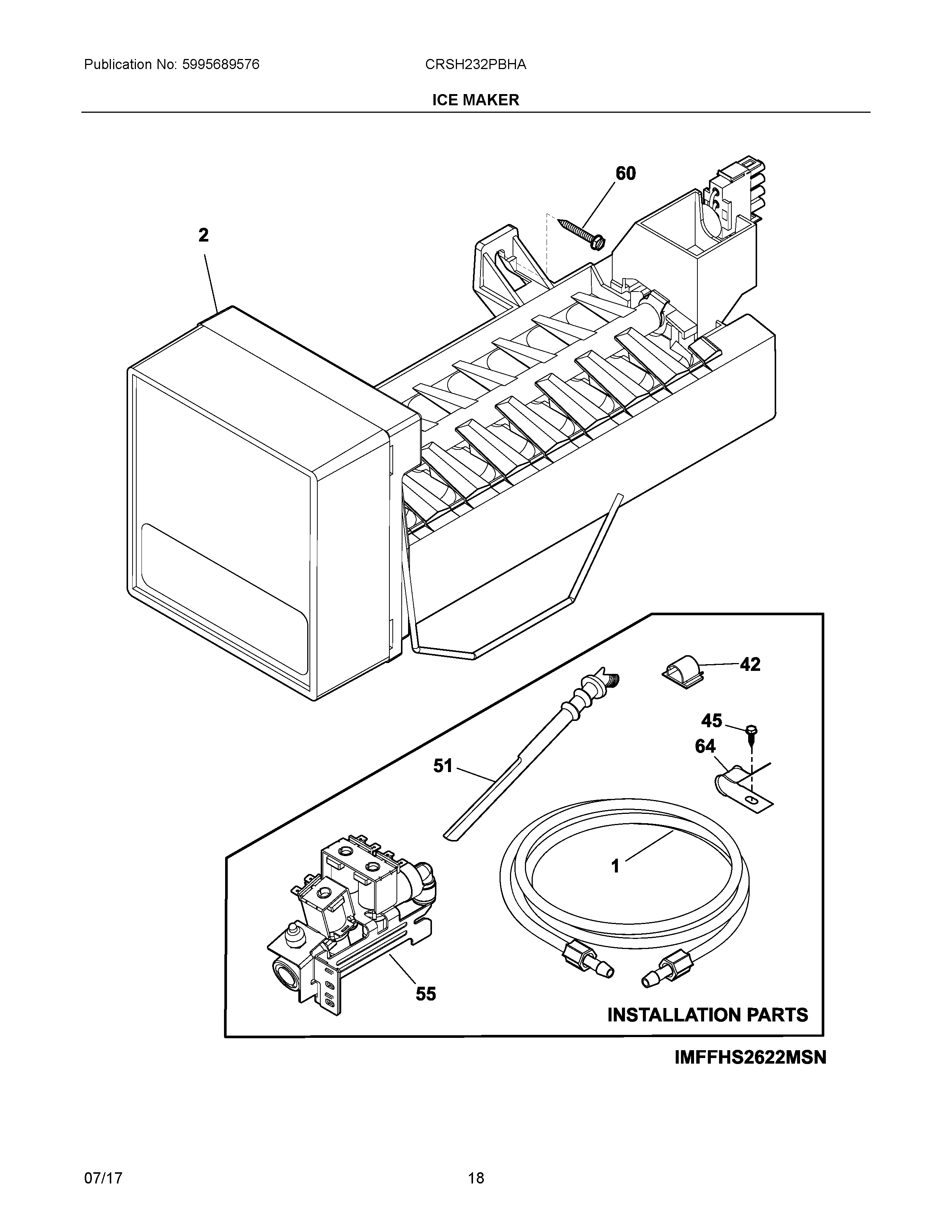

CRSH232PBHA 10 – ICE MAKER

CRSH232PBHA 10 – ICE MAKER

Written by

in

CRSH232PBHA 10 – ICE MAKER

Products

PositionProduct
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NID242220206 Frigidaire Refrigerator Water Inlet Tube
NIA218976439 Frigidaire Refrigerator Water Inlet Tube
NIB240363602 Frigidaire Refrigerator Shoulder Screw
NI241806601 Frigidaire Refrigerator Water Connector
NIB241850615 Frigidaire Ice Maker Fill Tube Assembly
NIC240561701 Frigidaire Refrigerator Seal
NIA5304521765 Frigidaire Refrigerator Wiring Harness
1218976438 Frigidaire Refrigerator Tube
2241798231 Frigidaire Refrigerator Ice Maker Assembly
42218515403 Frigidaire Refrigerator Clip-Grille
455304455650 Frigidaire Refrigerator Screw
51241796405 Frigidaire Refrigerator Fill Water Tube
55242252702 Frigidaire Refrigerator Water Inlet Valve Triple Solenoid
645304455846 Frigidaire Refrigerator Clamp
