CRSS262QW0 08 – ICE & WATER DISPENSER

CRSS262QW0 08 – ICE & WATER DISPENSER

Written by

in

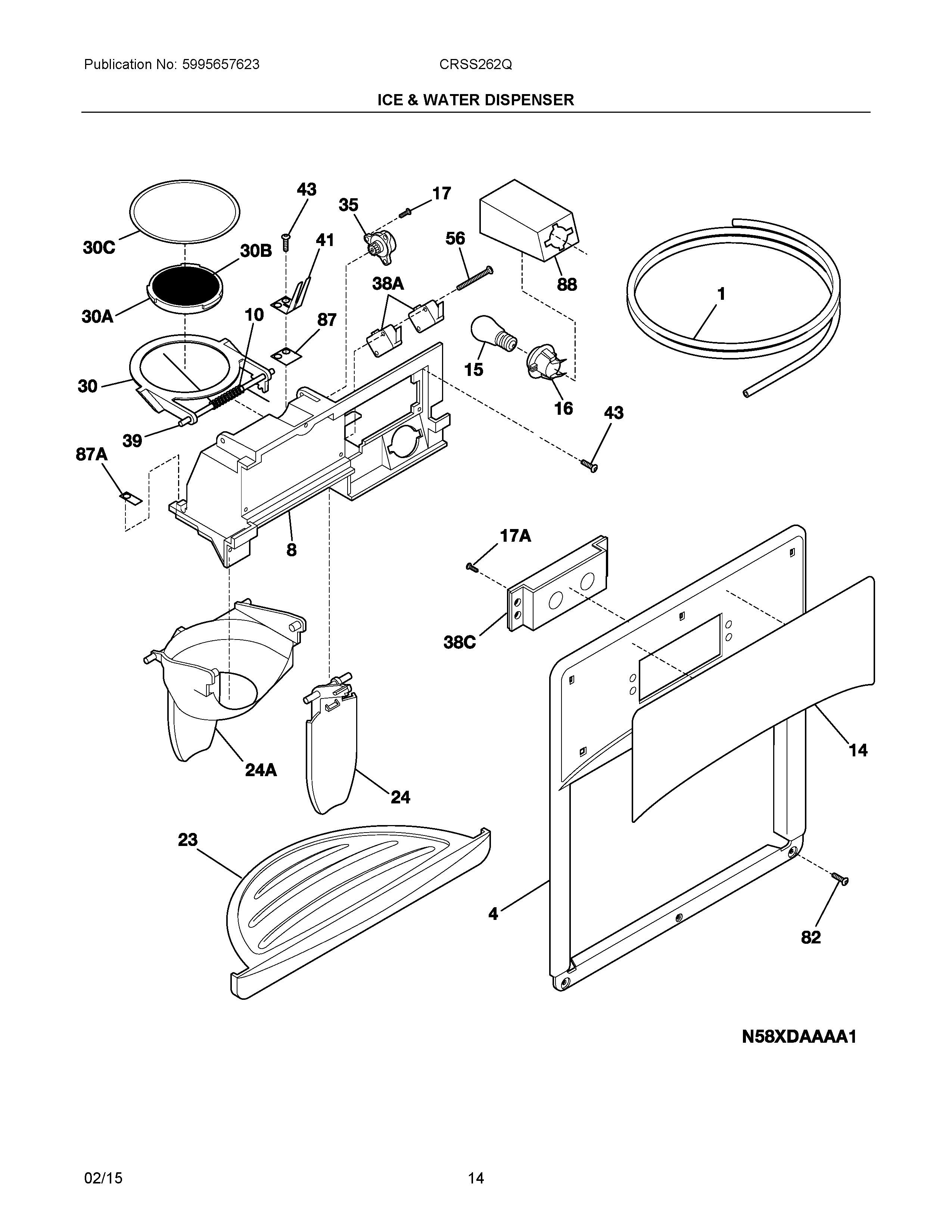

CRSS262QW0 08 – ICE & WATER DISPENSER

Products

PositionProduct
NIB218976429 Frigidaire Refrigerator Tube
NIA218976419 Frigidaire Refrigerator Tube
NI218515403 Frigidaire Refrigerator Clip-Grille
NICA5304521693 Frigidaire Refrigerator Harness-Facade W/Li
NIAA241679201 Frigidaire Refrigerator Wiring Harness
NIC241850615 Frigidaire Ice Maker Fill Tube Assembly
NID240561701 Frigidaire Refrigerator Seal
1218976409 Frigidaire Refrigerator Water Tube
4241679001 Frigidaire Dispenser Cover
8WCI 241680505
10241688901 Frigidaire Refrigerator Torsion Spring
14240570236 Frigidaire Refrigerator Label-Module Cover
15WCI 5304506475
16240548901 Frigidaire Refrigerator P-1 Socket
17241679801 Frigidaire Screw
17A241679901 Frigidaire Refrigerator Screw
23241649007 Frigidaire Drip Tray Assembly (Grey)
24241682001 Frigidaire Actuator Lever
24A241681901 Frigidaire Refrigerator Ice Actuator
30C241688701 Frigidaire Refrigerator Door Seal
30B241688601 Frigidaire Refrigerator Door Insulation
30A241688501 Frigidaire Refrigerator Door Center
30241688401 Frigidaire Ice Door Bracket
35241689301 Frigidaire Refrigerator Rotary Damper
38A241689106 Frigidaire Refrigerator Micro Switch
38CB5304525097 Frigidaire Refrigerator 4 Button Switch Assembly
39241688801 Frigidaire Refrigerator Pin-Hinge
41241689001 Frigidaire Refrigerator Actuator Spring
43WCI 215296301
56241689201 Frigidaire Refrigerator Screw-Micro Switch
825304453707 Frigidaire Oven Screw
87A241688301 Frigidaire Refrigerator Bearing Plate
87241688302 Frigidaire Refrigerator Bearing Plate
88WCI 241686101
