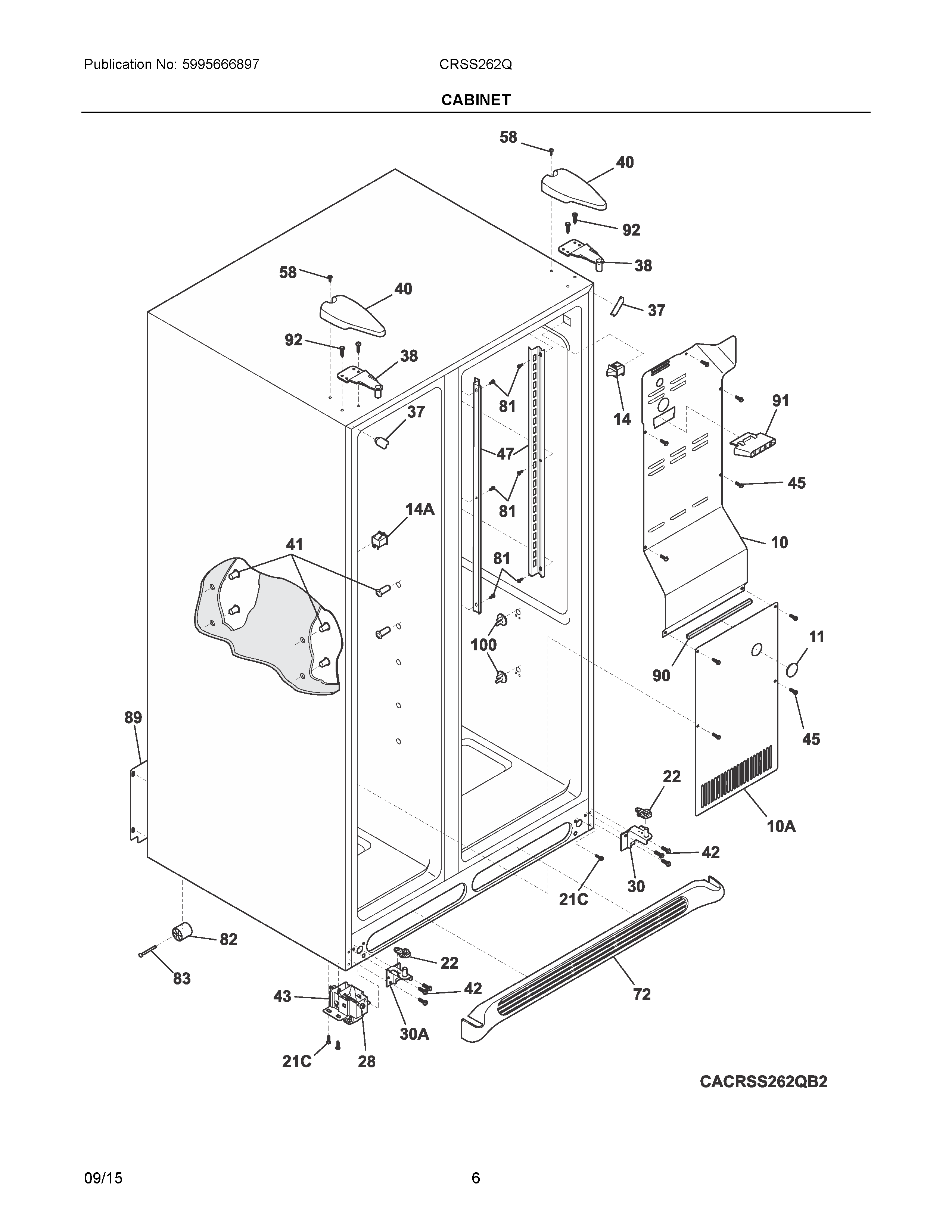

CRSS262QW4 04 – CABINET

Products

Position	Product
NI	240494001 Frigidaire Refrigerator Plug Button
NIA	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
NIA	241993001 Frigidaire Refrigerator Left Crisper Cover Support
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
NI	CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
10A	241719711 Frigidaire Refrigerator Evaporator Coil Cover
10	240435912 Frigidaire Refrigerator Cover-Air Duct
11	5303208309 Frigidaire Refrigerator Plug Hole
14	240505801 Frigidaire Light Switch
14A	241547902 Frigidaire Refrigerator Light Switch
21C	218252201 Frigidaire Refrigerator Screw
22	241856501 Frigidaire Refrigerator Door Closer Plate
30	242034601 Frigidaire Refrigerator Bracket-Lower Hinge
30A	242034604 Frigidaire Refrigerator Lower Hinge Bracket
37	242161201 Frigidaire Refrigerator Cabinet Corner Trim
38	240327207 Frigidaire Refrigerator Bracket Upper Hinge
40	240327005 Frigidaire Refrigerator P-1 Upper Hinge Cover
41	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
47	CHANNEL-SHELF MTG, SIDE, (2)
58	218781101 Frigidaire Handle Screw
72	240324409 Frigidaire Refrigerator Grille/Kickplate
81	5304455650 Frigidaire Refrigerator Screw
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
89	5304520905 Frigidaire Assembly Cover Refrigerator
90	218249808 Frigidaire Refrigerator Seal-Coil Cover
91	240380101 Frigidaire Refrigerator Ice Maker Duct
92	241710601 Frigidaire Refrigerator Screw
100	CRISPER COVER SUPPORT
