CRT151QW0 09 – SYSTEM

CRT151QW0 09 – SYSTEM

Written by

in

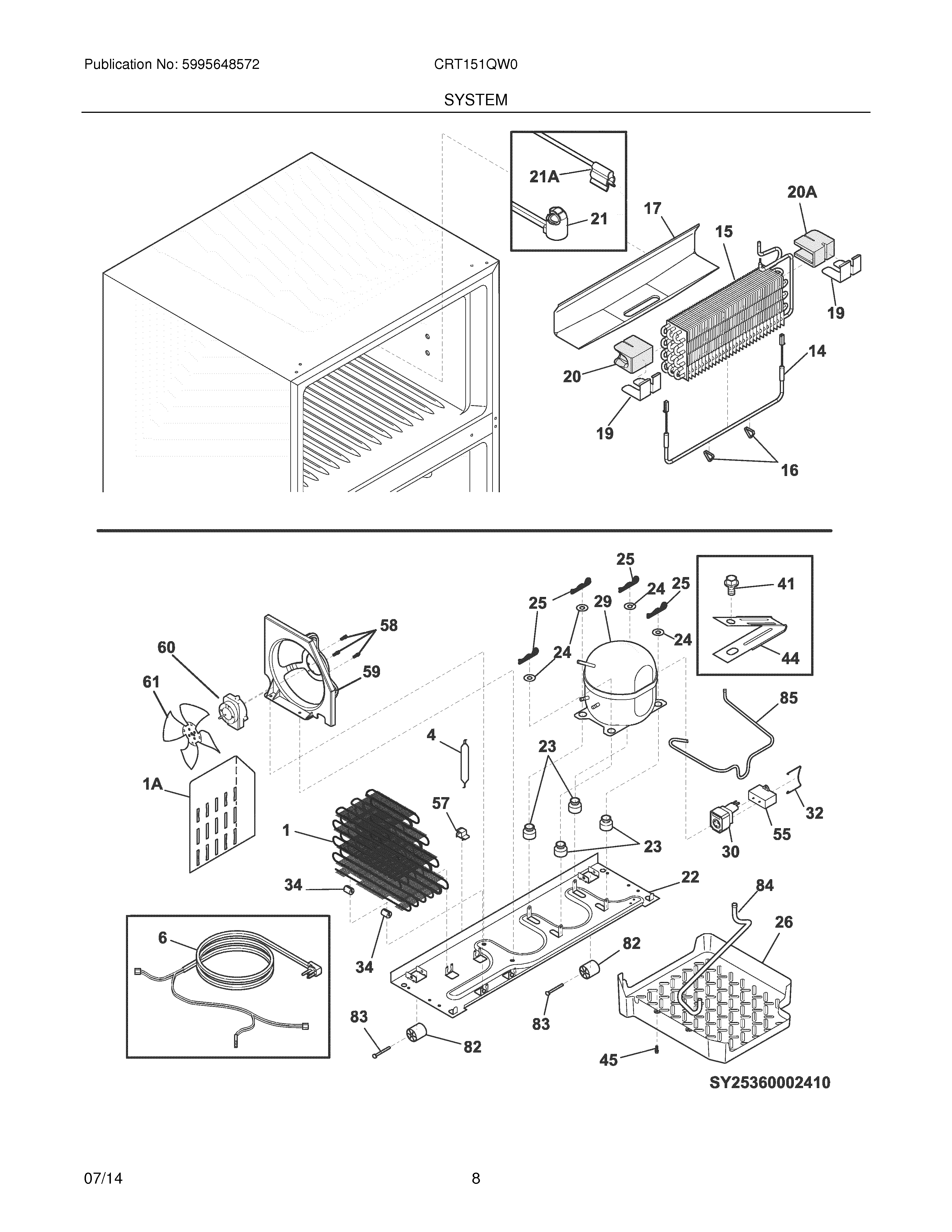

CRT151QW0 09 – SYSTEM

Products

PositionProduct
NI218843801 Frigidaire Refrigerator Screw
NI218252201 Frigidaire Refrigerator Screw
NI242213801 Frigidaire Refrigerator Harness Assembly
NI240346701 Frigidaire Refrigerator Foam Seal Tape
NI240396801 Frigidaire Refrigerator Tube Clamp
NI240359403 Frigidaire Refrigerator Fan Shroud Screw
1A242213901 Frigidaire Refrigerator Deflector
1241785404 Frigidaire Refrigerator Condenser
45303305677 Frigidaire Replacement Filter Dryer Filters
65304521786 Frigidaire Refrigerator Wiring Harness
14242044007 Frigidaire Refrigerator Defrost Heater
155303918275 Frigidaire Refrigerator Evaporator Kit P1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17241801302 Frigidaire Refrigerator Trough-Drain
19242320401 Frigidaire Refrigerator Shield
20A5304527430 Frigidaire Refrigerator Block
205304527429 Frigidaire Refrigerator Block
21A242213501 Frigidaire Refrigerator Harness
22241665605 Frigidaire Refrigerator Base Compressor
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24241812301 Frigidaire Refrigerator Compressor Mount Washer
25242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26241920605 Frigidaire Refrigerator Defrost Pan
29807681801 Frigidaire Refrigerator Compressor
30297259528 Frigidaire Refrigerator Start Relay
325304497418 Frigidaire Refrigerator Clip
34240405201 Frigidaire Refrigerator Grommet
41240433204 Frigidaire Refrigerator Screw
445304456288 Frigidaire Refrigerator Clamp
45241500305 Frigidaire Refrigerator Screw
55297286803 Frigidaire Refrigerator Run Capacitor
57240542601 Frigidaire Clip-WIRING Harness
58240569202 Frigidaire Refrigerator Screw
59242050604 Frigidaire Refrigerator Shroud
60MOTOR-CONDENSER FAN
61241639502 Frigidaire Refrigerator Condenser Fan Blade
82240335202 Frigidaire Refrigerator Roller
835304455655 Frigidaire Refrigerator Rivet
84240500801 Frigidaire Refrigerator P-1 Tube-Drain
85241856910 Frigidaire Refrigerator Connector Tube
