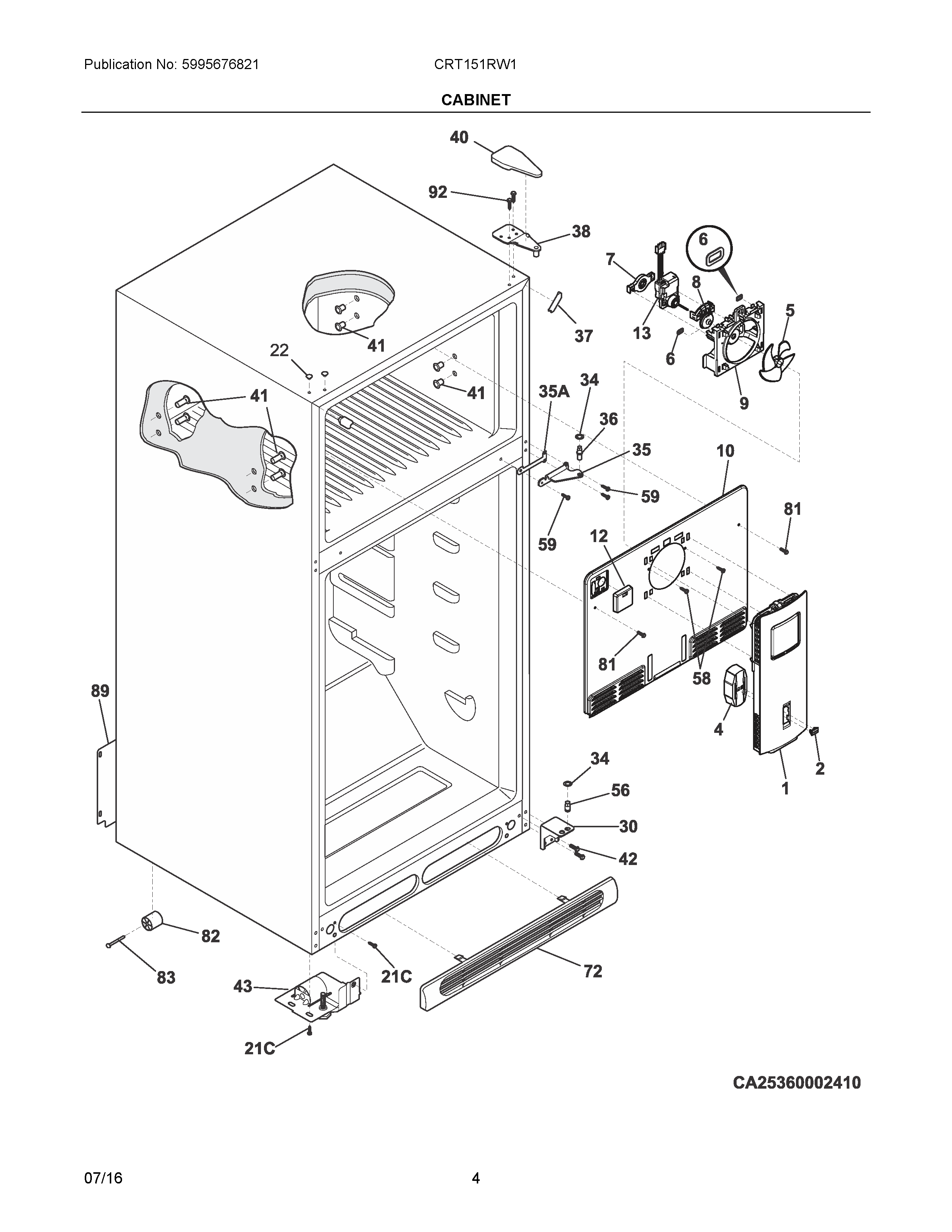

CRT151RW1 03 – CABINET

CRT151RW1 03 – CABINET

Written by

in

CRT151RW1 03 – CABINET

Products

PositionProduct
NIA218515401 Frigidaire Refrigerator Clip
NIA241586701 Frigidaire Refrigerator Plug
NIA241889001 Frigidaire Refrigerator Roller Assembly
NI240494001 Frigidaire Refrigerator Plug Button
NIA5304523788 Frigidaire Defrost Thermostat
NIA5304434189 Frigidaire Refrigerator Seal Kit
NIA241500305 Frigidaire Refrigerator Screw
NIB5304453707 Frigidaire Oven Screw
1242230902 Frigidaire Refrigerator Cover
2242229401 Frigidaire Refrigerator Knob
4242294704 Frigidaire Refrigerator Fan Cover & Damper
5242219302 Frigidaire Refrigerator Evaporator Fan Blade
65304497413 Frigidaire Refrigerator Ring
7242287501 Frigidaire Refrigerator Grommet
8242237301 Frigidaire Grommet
9242229301 Frigidaire Refrigerator Shroud Bracket
10242229805 Frigidaire Cover
115303208309 Frigidaire Refrigerator Plug Hole
12242249201 Frigidaire Refrigerator Cover
13242077705 Frigidaire Refrigerator Fan Motor
21C218252201 Frigidaire Refrigerator Screw
22215774901 Frigidaire Refrigerator Button Plug
30240314011 Frigidaire Refrigerator Lower Bracket Hinge
34240311303 Frigidaire Refrigerator Hinge Nylon Washer
35A240336802 Frigidaire Refrigerator Hinge Spacer
35240313802 Frigidaire Refrigerator Center Hinge Bracket
36241708002 Frigidaire Refrigerator Center Hinge Pin
37242161201 Frigidaire Refrigerator Cabinet Corner Trim
38240313703 Frigidaire Refrigerator Hinge
40240354401 Frigidaire Upper Hinge Cover
415304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42240578902 Frigidaire Screw Mounting Hinge
43241889002 Frigidaire Refrigerator Roller Assembly
56240516502 Frigidaire Refrigerator Lower Hinge Pin
58240433204 Frigidaire Refrigerator Screw
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72240368301 Frigidaire Refrigerator Kickplate Grille 530447011
815304455650 Frigidaire Refrigerator Screw
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
89241733906 Frigidaire Refrigerator Access Cover
92241710601 Frigidaire Refrigerator Screw
