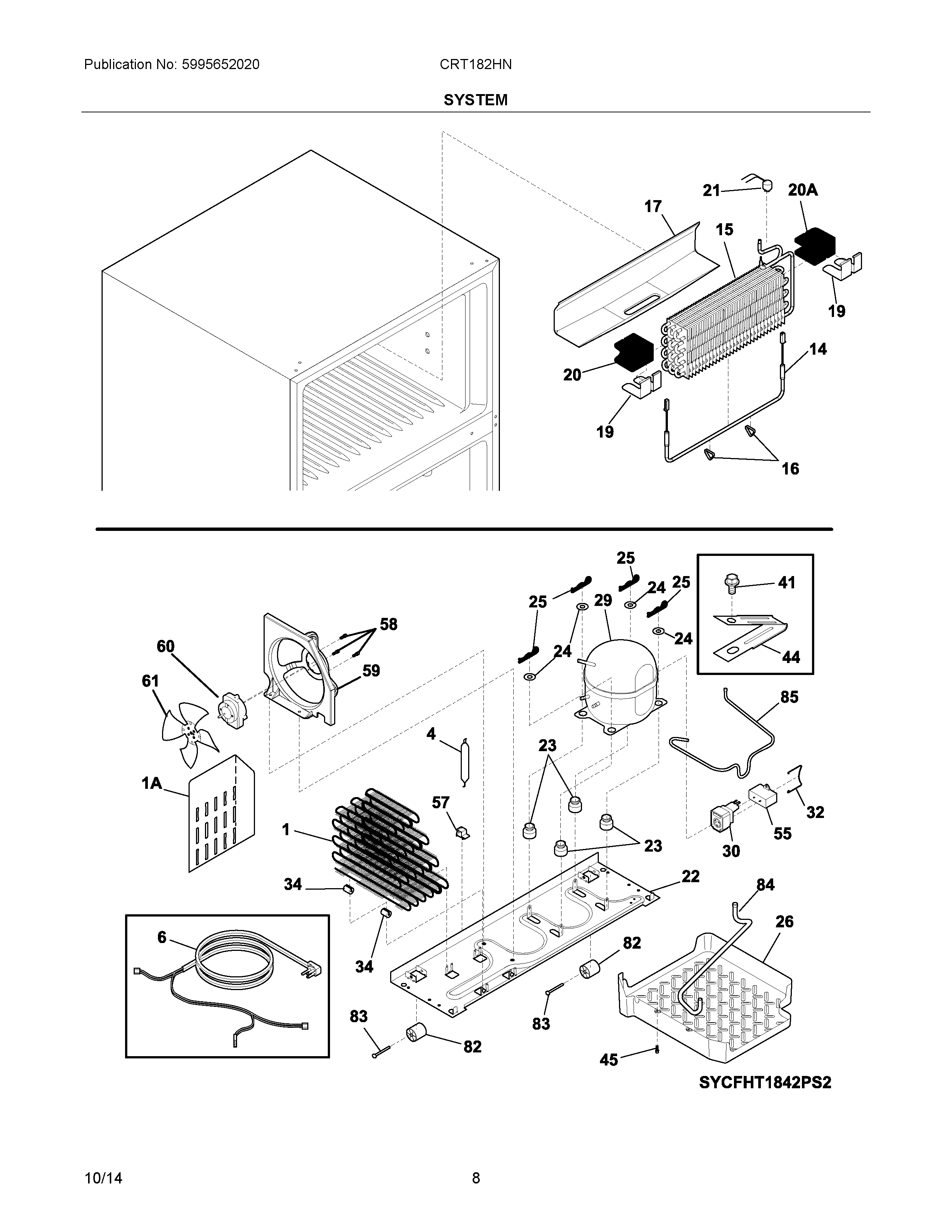

CRT182HNW5 05 – SYSTEM

CRT182HNW5 05 – SYSTEM

Written by

in

CRT182HNW5 05 – SYSTEM

Products

Position	Product
NI	5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NI	WCI 5303918222
NIA	240346701 Frigidaire Refrigerator Foam Seal Tape
NI	218515401 Frigidaire Refrigerator Clip
NIB	240359403 Frigidaire Refrigerator Fan Shroud Screw
NIA	240388701 Frigidaire Refrigerator Wiring Harness
NI	240396801 Frigidaire Refrigerator Tube Clamp
NIA	218252201 Frigidaire Refrigerator Screw
1	WCI 241785402
1A	242213901 Frigidaire Refrigerator Deflector
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	5304521786 Frigidaire Refrigerator Wiring Harness
15	242214411 Frigidaire Refrigerator Evaporator
17	241801301 Frigidaire Refrigerator Drain Trough
21	5303918634 Frigidaire Kit Thermostat
22	241665606 Frigidaire Refrigerator Compressor Base
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26	241920605 Frigidaire Refrigerator Defrost Pan
29	5303918659 Frigidaire Refrigerator Compressor Kit
30	WCI 241707720
32	5304497418 Frigidaire Refrigerator Clip
34	240405201 Frigidaire Refrigerator Grommet
41	240433204 Frigidaire Refrigerator Screw
44	5304456288 Frigidaire Refrigerator Clamp
45	241500305 Frigidaire Refrigerator Screw
55	297286803 Frigidaire Refrigerator Run Capacitor
57	240542601 Frigidaire Clip-WIRING Harness
58	240569202 Frigidaire Refrigerator Screw
59	242050604 Frigidaire Refrigerator Shroud
60	MOTOR-CONDENSER FAN
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
83	5304455655 Frigidaire Refrigerator Rivet
84	240500801 Frigidaire Refrigerator P-1 Tube-Drain
