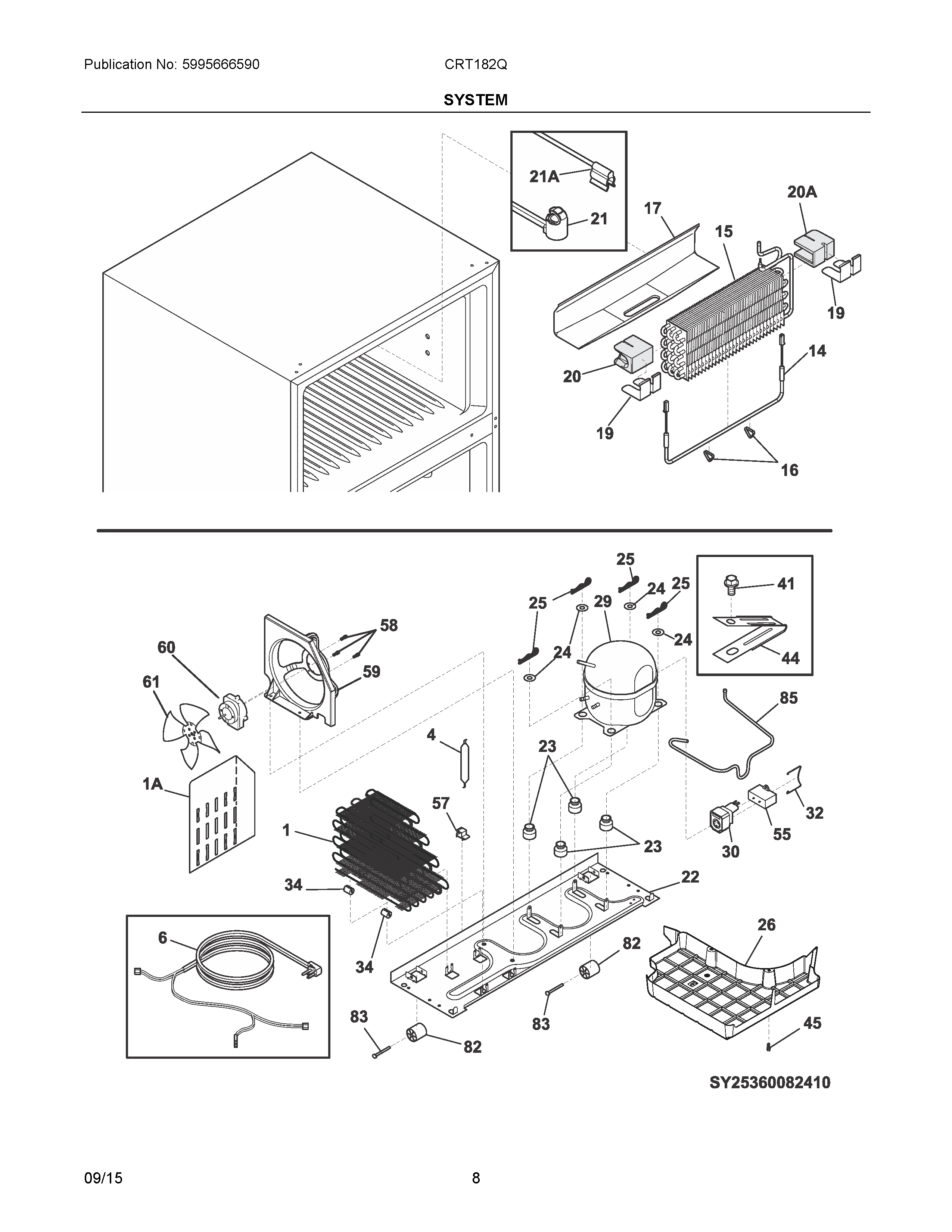

CRT182QW1 05 – SYSTEM

Products

Position	Product
NI	218843801 Frigidaire Refrigerator Screw
NIA	218252201 Frigidaire Refrigerator Screw
NIA	240346701 Frigidaire Refrigerator Foam Seal Tape
NIB	240359403 Frigidaire Refrigerator Fan Shroud Screw
1A	242213901 Frigidaire Refrigerator Deflector
1	241785407 Frigidaire Refrigerator Condenser
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	5304521786 Frigidaire Refrigerator Wiring Harness
14	242044008 Frigidaire Defrost Heater
15	5303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241801301 Frigidaire Refrigerator Drain Trough
19	242320401 Frigidaire Refrigerator Shield
20	5304527429 Frigidaire Refrigerator Block
20A	5304527430 Frigidaire Refrigerator Block
21A	242213501 Frigidaire Refrigerator Harness
22	241665504 Frigidaire Refrigerator Compressor Base
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26	241920605 Frigidaire Refrigerator Defrost Pan
29	5303918659 Frigidaire Refrigerator Compressor Kit
30	297259528 Frigidaire Refrigerator Start Relay
32	5304497418 Frigidaire Refrigerator Clip
34	240405201 Frigidaire Refrigerator Grommet
41	240433204 Frigidaire Refrigerator Screw
44	5304456288 Frigidaire Refrigerator Clamp
45	241500305 Frigidaire Refrigerator Screw
55	297286803 Frigidaire Refrigerator Run Capacitor
57	240542601 Frigidaire Clip-WIRING Harness
58	240569202 Frigidaire Refrigerator Screw
59	242050604 Frigidaire Refrigerator Shroud
60	MOTOR-CONDENSER FAN
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
74	215503203 Frigidaire Refrigerator Door Handle Screw
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	240500801 Frigidaire Refrigerator P-1 Tube-Drain
85	242014601 Frigidaire Refrigerator Connector Tube
