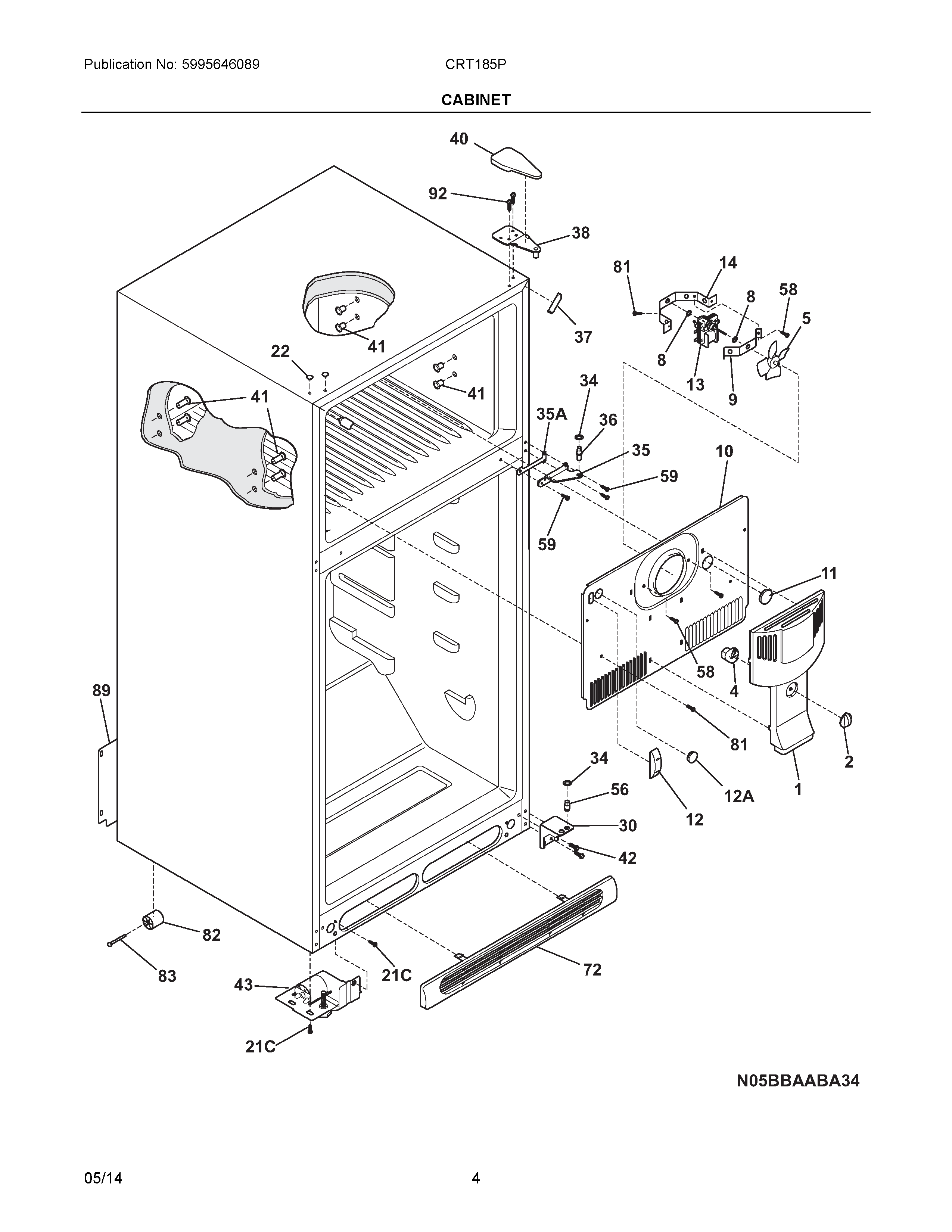

CRT185PW4 03 – CABINET

CRT185PW4 03 – CABINET

Written by

in

CRT185PW4 03 – CABINET

Products

Position	Product
NIA	240433204 Frigidaire Refrigerator Screw
NIB	241889001 Frigidaire Refrigerator Roller Assembly
NIA	218843801 Frigidaire Refrigerator Screw
NIA	215474201 Frigidaire Refrigerator Washer
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
NI	218515401 Frigidaire Refrigerator Clip
NIA	5304434189 Frigidaire Refrigerator Seal Kit
NIA	241500305 Frigidaire Refrigerator Screw
NIAA	241586701 Frigidaire Refrigerator Plug
1	241652301 Frigidaire 241259700 Evaporator Fan Cover
2	240367001 Frigidaire Refrigerator Air Damper Control Knob
4	WCI 241523701
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	240438003 Frigidaire Refrigerator Bracket & Bushing
9	WCI 5303292396
10	242239305 Frigidaire Refrigerator Cover
11	5303208309 Frigidaire Refrigerator Plug Hole
12	242193602 Frigidaire Refrigerator Plug Hole
12A	WCI 240374401
13	241854301 Frigidaire Refrigerator Evaporator Fan Motor
21C	218252201 Frigidaire Refrigerator Screw
22	215774901 Frigidaire Refrigerator Button Plug
30	240314011 Frigidaire Refrigerator Lower Bracket Hinge
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35	WCI 240313806
35A	240336802 Frigidaire Refrigerator Hinge Spacer
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	242161201 Frigidaire Refrigerator Cabinet Corner Trim
38	240313703 Frigidaire Refrigerator Hinge
40	240354401 Frigidaire Upper Hinge Cover
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	241889002 Frigidaire Refrigerator Roller Assembly
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
57	240542601 Frigidaire Clip-WIRING Harness
58A	WCI 5304456287
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72	241839405 Frigidaire Refrigerator Kickplate/Grille
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	241733911 Frigidaire Refrigerator Access Cover
92	241710601 Frigidaire Refrigerator Screw
