CRT206QB5 03 – CABINET

CRT206QB5 03 – CABINET

Written by

in

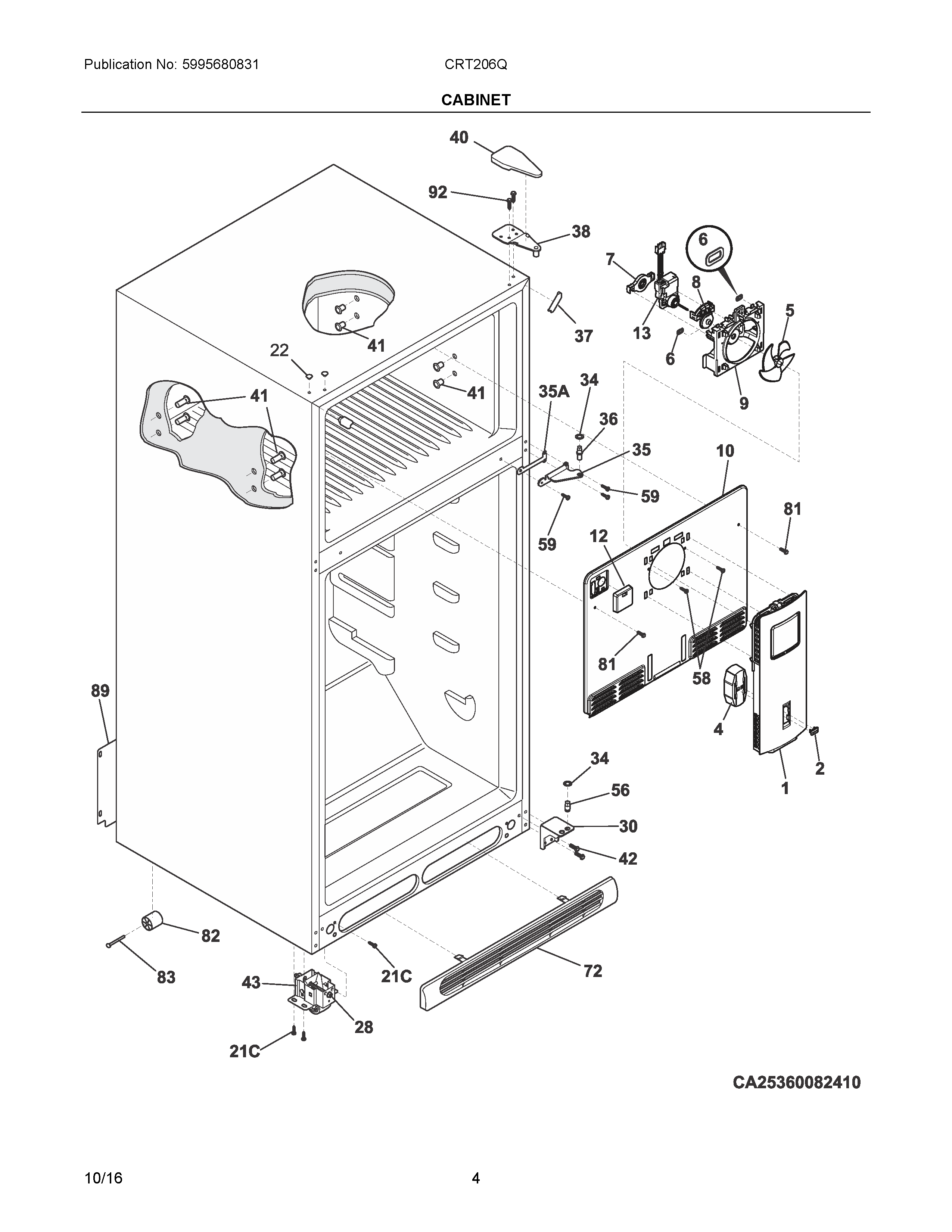

CRT206QB5 03 – CABINET

Products

PositionProduct
NIA241500303 Frigidaire Refrigerator Screw
NIA241586701 Frigidaire Refrigerator Plug
NIA240568606 Frigidaire Refrigerator Coil Cover Seal
NIB5304453707 Frigidaire Oven Screw
NIC5304523788 Frigidaire Defrost Thermostat
NI218990901 Frigidaire Clip
NID5304521789 Frigidaire Refrigerator Harness
NIA218515401 Frigidaire Refrigerator Clip
NI240494001 Frigidaire Refrigerator Plug Button
15303918833 Frigidaire Refrigerator Cover Assembly Kit
2242229401 Frigidaire Refrigerator Knob
4242294704 Frigidaire Refrigerator Fan Cover & Damper
5242219302 Frigidaire Refrigerator Evaporator Fan Blade
65304497413 Frigidaire Refrigerator Ring
7242287501 Frigidaire Refrigerator Grommet
8242237301 Frigidaire Grommet
9242229301 Frigidaire Refrigerator Shroud Bracket
10242239404 Frigidaire Refrigerator Cover
12242249201 Frigidaire Refrigerator Cover
13242077705 Frigidaire Refrigerator Fan Motor
21C218252201 Frigidaire Refrigerator Screw
22215774918 Frigidaire Refrigerator Button Plug
30240314011 Frigidaire Refrigerator Lower Bracket Hinge
34240311303 Frigidaire Refrigerator Hinge Nylon Washer
35A240336803 Frigidaire Refrigerator Hinge Spacer
35240313803 Frigidaire Refrigerator Center Hinge Bracket
36241708002 Frigidaire Refrigerator Center Hinge Pin
37242161202 Frigidaire Refrigerator Trim-Cabinet Corner
38240313703 Frigidaire Refrigerator Hinge
40240354404 Frigidaire Refrigerator Upper Hinge Cover
415304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42240578902 Frigidaire Screw Mounting Hinge
435304499445 Frigidaire Refrigerator Roller Assembly
56240516502 Frigidaire Refrigerator Lower Hinge Pin
58240433204 Frigidaire Refrigerator Screw
59240442707 Frigidaire Refrigerator Screw #10-32 X 3/4
72241839407 Frigidaire Refrigerator Kickplate/Grille
815304455650 Frigidaire Refrigerator Screw
82240335202 Frigidaire Refrigerator Roller
835304455655 Frigidaire Refrigerator Rivet
89241733911 Frigidaire Refrigerator Access Cover
92241710601 Frigidaire Refrigerator Screw
