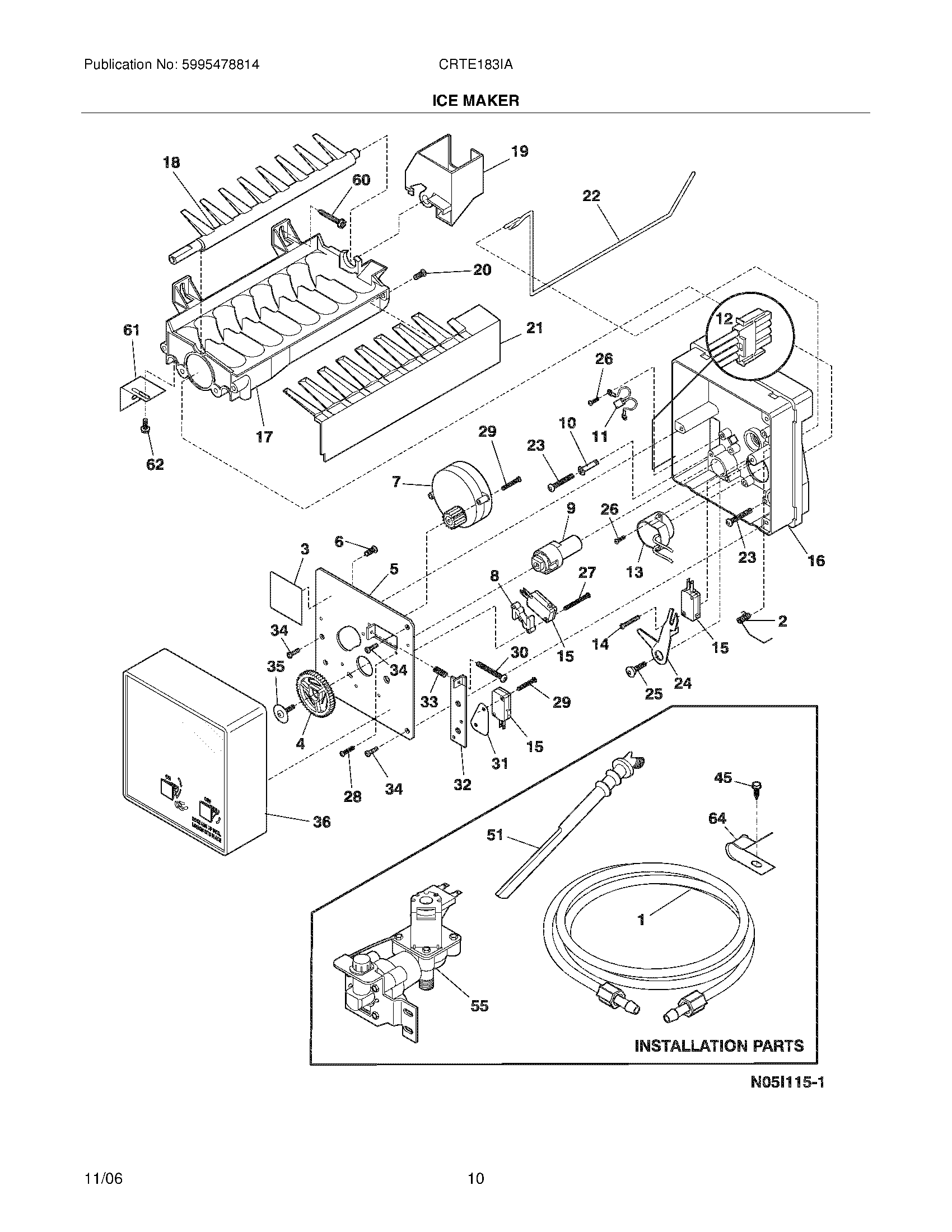

CRTE183IAB1 11 – ICE MAKER

Products

PositionProduct
NIWCI 5304456688
NI240561701 Frigidaire Refrigerator Seal
NI5304456690 Frigidaire LABEL
NI5304445223 Frigidaire SPRING BEAM
NI241798231 Frigidaire Refrigerator Ice Maker Assembly
1218976901 Frigidaire Refrigerator P1-Water Inlet Tube
2WCI 5304456650
35304456657 Frigidaire Ice Maker Label
45304469403 Frigidaire Gear
55304456659 Frigidaire Refrigerator Plate-Mounting
6WCI 5304456691
8WCI 5304456661
9WCI 5304456662
105304456689 Frigidaire Refrigerator Washer
11WCI 5304456663
125304456875 Frigidaire Refrigerator Wiring Harness
135304456665 Frigidaire Refrigerator Thermostat
14WCI 5304456666
155304456667 Frigidaire Refrigerator Micro Switch
165304456668 Frigidaire Refrigerator Support
18WCI 5304456670
205304455677 Frigidaire Screw
22WCI 5304456673
235304456674 Frigidaire Screw
245304456675 Frigidaire Refrigerator Lever Arm
25WCI 5304456676
265304455680 Frigidaire Refrigerator Screw
27WCI 5304456677
285304456660 Frigidaire Screw
295304456678 Frigidaire Screw
305304456679 Frigidaire Timing Adjustment Screw
31WCI 5304456680
325304456681 Frigidaire Plate-VALVE SWITCH
33WCI 5304456682
34241679901 Frigidaire Refrigerator Screw
355304456684 Frigidaire Screw
36WCI 5304456685
455304455650 Frigidaire Refrigerator Screw
51241796405 Frigidaire Refrigerator Fill Water Tube
55ICE MAKER WATER VALVE
60218362501 Frigidaire Refrigerator Screw
61218721500 Frigidaire Refrigerator Bracket-Leveling
62WCI 5304456687
645304455846 Frigidaire Refrigerator Clamp
