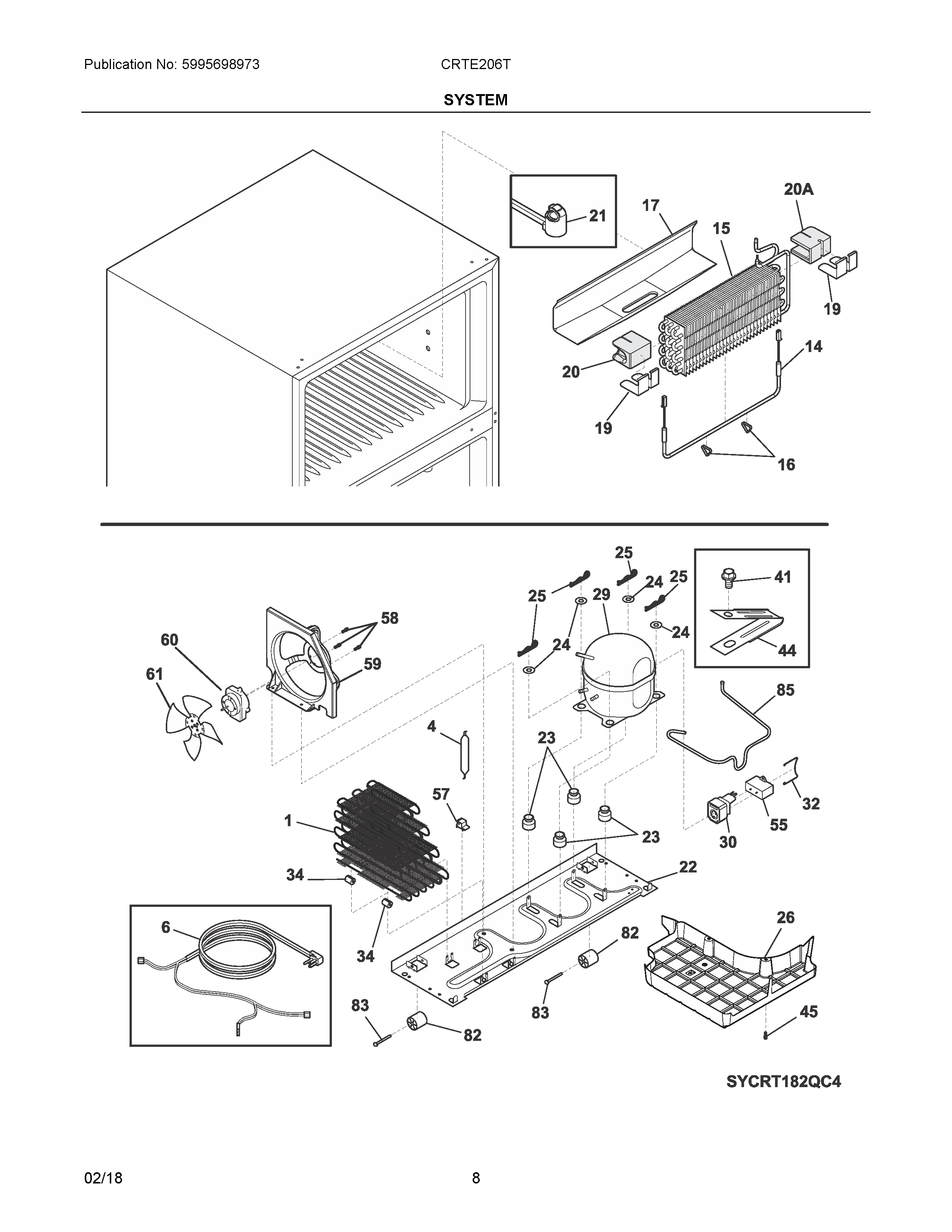

CRTE206TB1 05 – SYSTEM

CRTE206TB1 05 – SYSTEM

Written by

in

CRTE206TB1 05 – SYSTEM

Products

PositionProduct
NIA218252201 Frigidaire Refrigerator Screw
NIB218709101 Frigidaire Refrigerator Handle Mounting Screw
NIB240359403 Frigidaire Refrigerator Fan Shroud Screw
NIA240346701 Frigidaire Refrigerator Foam Seal Tape
NI5303918327 Frigidaire Refrigerator Heat Exchanger Kit
1241785405 Frigidaire Refrigerator Condenser
45303305677 Frigidaire Replacement Filter Dryer Filters
65304521786 Frigidaire Refrigerator Wiring Harness
14242044021 Frigidaire Refrigerator Defrost Heater
155303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17241801301 Frigidaire Refrigerator Drain Trough
19242320401 Frigidaire Refrigerator Shield
205304527429 Frigidaire Refrigerator Block
20A5304527430 Frigidaire Refrigerator Block
215303918634 Frigidaire Kit Thermostat
22241665504 Frigidaire Refrigerator Compressor Base
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24241812301 Frigidaire Refrigerator Compressor Mount Washer
25242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26PAN-DEFROST
295304537072 Frigidaire Compressor with Clip, Em2Z70Hlt
30241941005 Frigidaire Refrigerator Start Device
32297030500 Frigidaire Refrigerator Clip
34240405201 Frigidaire Refrigerator Grommet
41240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455650 Frigidaire Refrigerator Screw
55297286803 Frigidaire Refrigerator Run Capacitor
57240542601 Frigidaire Clip-WIRING Harness
58240569202 Frigidaire Refrigerator Screw
59241946106 Frigidaire Refrigerator Shroud-Cond Fan
60MOTOR-CONDENSER FAN
61241639502 Frigidaire Refrigerator Condenser Fan Blade
82240335202 Frigidaire Refrigerator Roller
835304455655 Frigidaire Refrigerator Rivet
85TUBE-CONNECTOR, SUCTION
