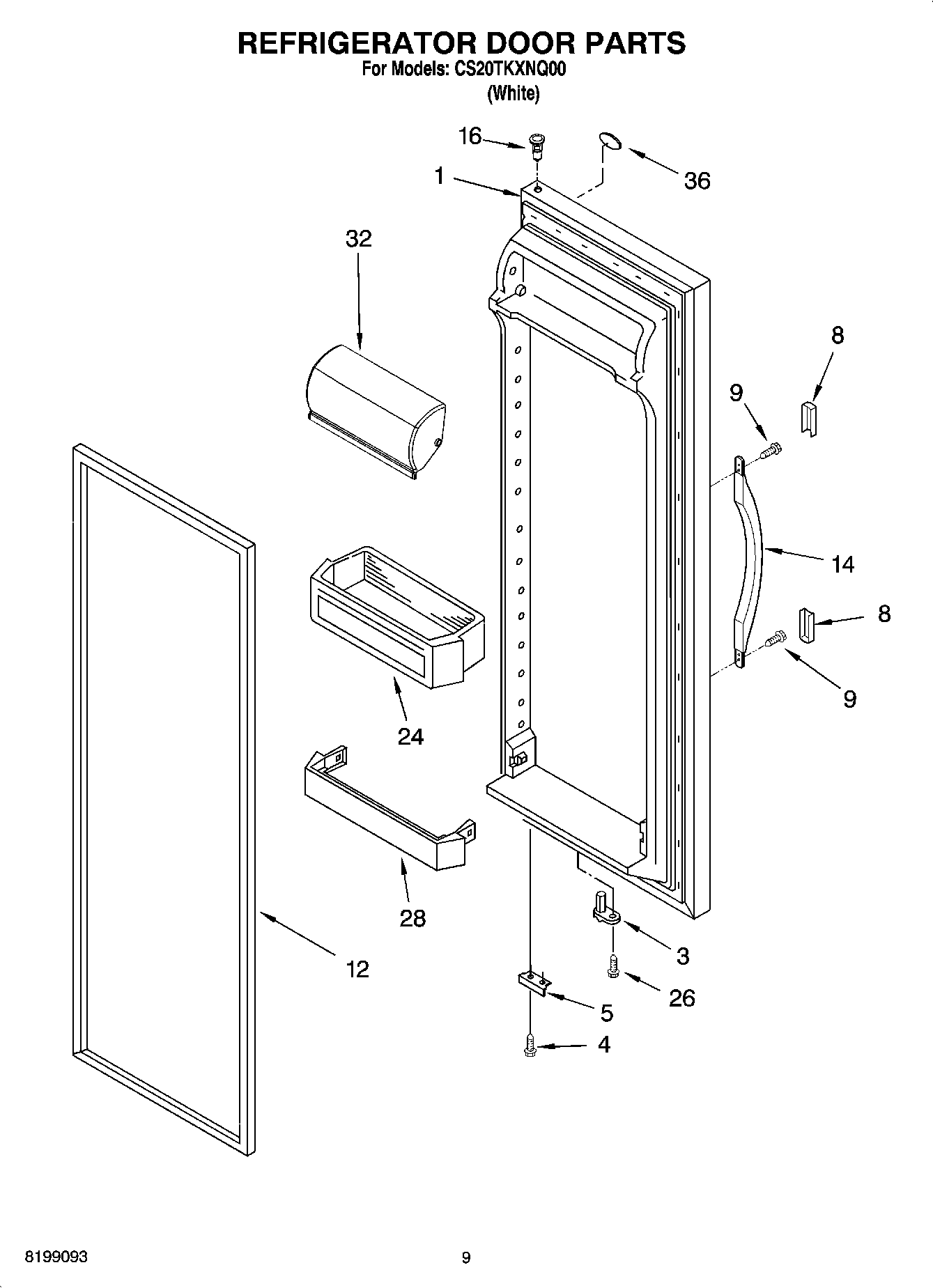

CS20TKXNQ00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (White)
3	WP2182179 Whirlpool Cam Closer
4	WP489483 Whirlpool Screw
5	WP2206629B Whirlpool Refrigerator Bracket
8	WP2193353W Whirlpool Refrigerator Trim Handle
9	WP489491 Whirlpool Refrigerator Screw
12	2159073 Whirlpool Refrigerator Door Gasket
14	Handle, Center (White)
16	WP2182181 Whirlpool Refrigerator Thimble
24	WP2187172 Whirlpool Refrigerator Door Shelf Bin
26	WP3400012 Whirlpool Refrigerator Screw
28	WP2177962K Whirlpool Refrigerator Door Trim
32	WP2256101 Whirlpool Dairy Door
36	Nameplate (White)
