CS20TKXNQ00 08 – CONTROL PARTS, PARTS NOT ILLUSTRATED

CS20TKXNQ00 08 – CONTROL PARTS, PARTS NOT ILLUSTRATED

Written by

in

CS20TKXNQ00 08 – CONTROL PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
WPL ARI21500A8
Torx Key
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI21501A6
WPL ARI21496A3
WPL ARI21497A2
WPL ARI21498A6
WPL ARI21499A7
WP542638 Whirlpool Refrigerator Grease
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
Almond (Uncut)
876370 Whirlpool Refrigerator Insulation
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint

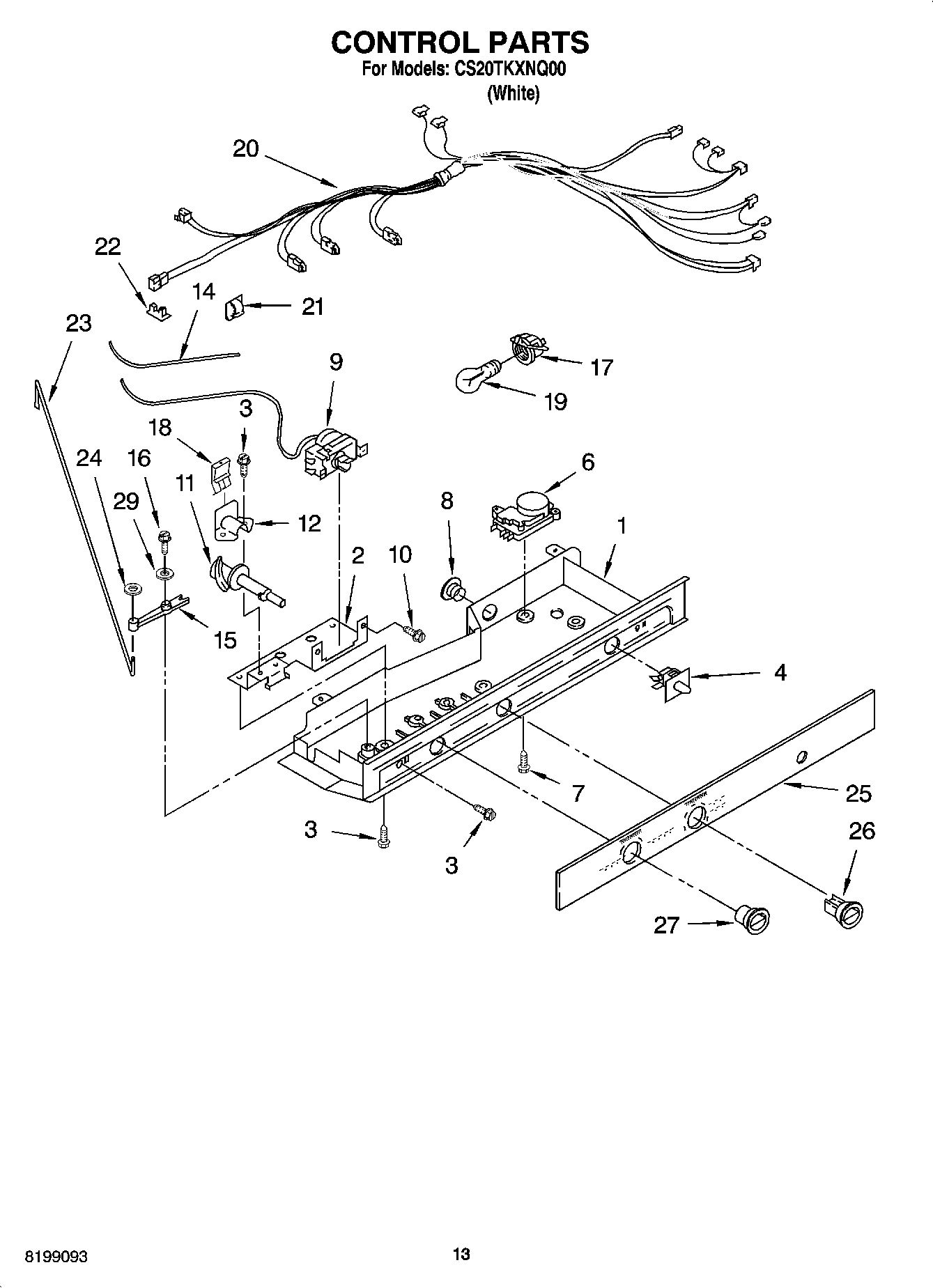

1Control Box
2Mounting Bracket
3WP3196557 Whirlpool Screw
4WP2149705 Whirlpool Refrigerator Door Switch
6W10822278 Whirlpool Defrost Timer
7489392 Whirlpool Refrigerator Screw
8940014 Whirlpool Refrigerator Primary Button Plug
9WP2198202 Whirlpool Refrigerator Temperature Thermostat
10WP965173 Whirlpool Dishwasher Screw
11WP2182195 Whirlpool Refrigerator Cam
121110560 Whirlpool Refrigerator Bearing
14WP2196003 Whirlpool Refrigerator Bar Riser
15Pivot Arm
16627068 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
18WP2196062 Whirlpool Refrigerator Clip
19RANGE ONLY 40W 120V APPL BULB
20Control Box Harness
21WP1115374 Whirlpool Refrigerator Clip
22CLIP, WIRING
23Connecting Rod
24Fastener, Push-On
25Escutcheon, Control Box
262182111 Whirlpool Refrigerator Thermal Knob
27Knob, Air Control
29489203 Whirlpool Refrigerator Washer
