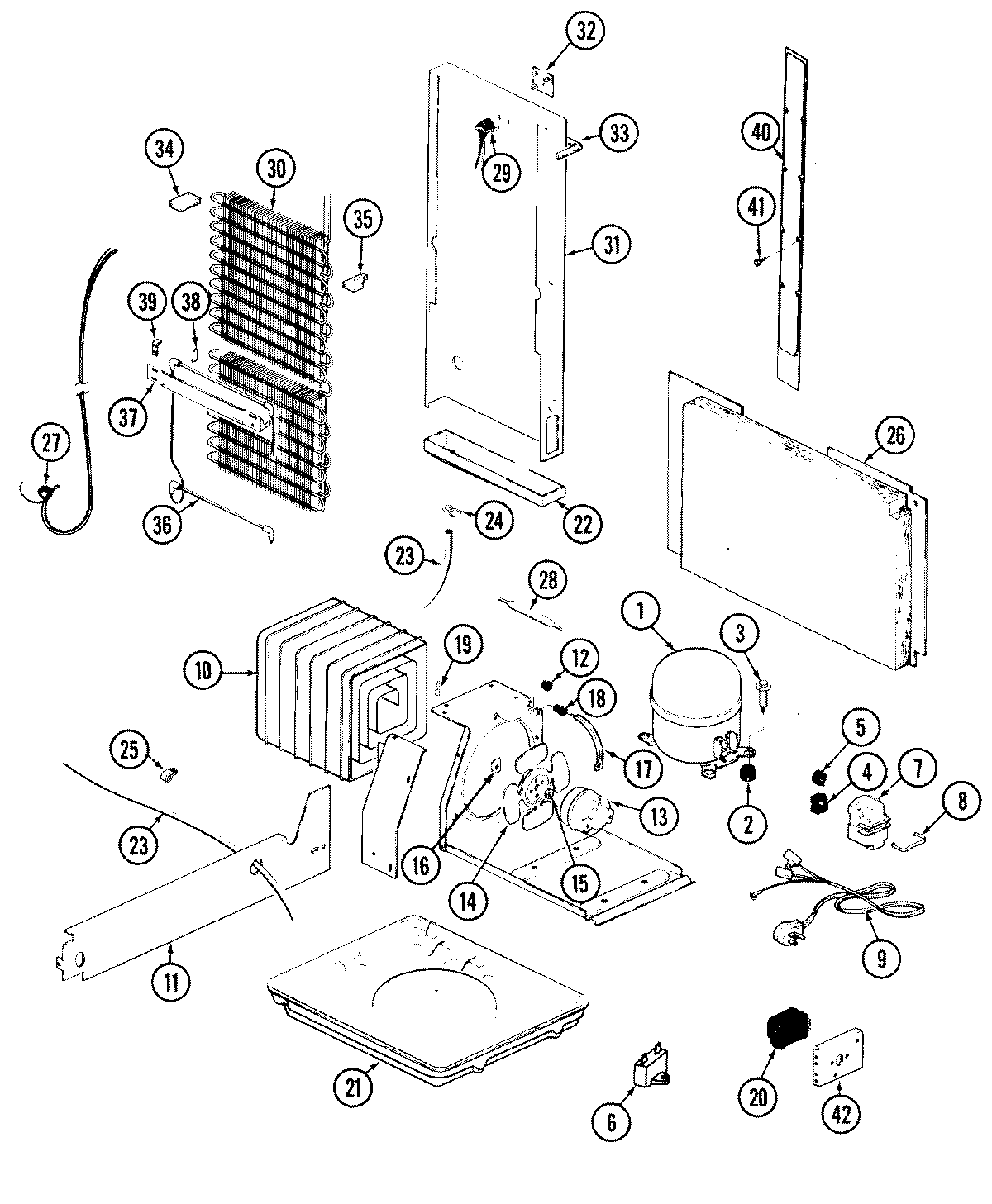

CS20Y6W 07 – UNIT COMPARTMENT & SYSTEM
Written by
in
CS20Y6W 07 – UNIT COMPARTMENT & SYSTEM
Products
Position
Product
NI
MAY 108429-3
1
W10309995 Whirlpool Refrigerator Compressor
1
MAY 12000058
1
MAY 12000006
2
MAY 17245-4
3
MAY 69062-1
3
MAY 61001017
3
MAY 65275-9
4
WP10097202 Whirlpool Refrigerator Start Device
4
WP10097204 Whirlpool Start Relay
4
MAY 66588-5
5
MAY 69105-3
5
MAY 63294-19
5
MAY 65887-1
5
MAY 63294-8
5
MAY 61001785
6
WP65889-4 Whirlpool Refrigerator Capacitor
6
WPW10662129 Whirlpool Refrigerator Run Capacitor
7
MAY 66589-2
7
MAY 69754-1
7
MAY 61002020
8
MAY 61002620
8
MAY 59596-1
8
MAY 65886-1
9
MAY 52890-2
10
MAY 64998-1
10
MAY 400062-1
10
MAY 60408-2
11
WP488729 Whirlpool Refrigerator Door Screw
11
MAY 70199-1
12
MAY 53351-1
13
MAY 61001016
13
MAY 67560-2
13
MAY 65275-33
13
833697 Whirlpool Condenser Fan Motor
14
WP12587601 Whirlpool Refrigerator Condenser Blade
15
MAY 19913-2
16
MAY 55042-1
17
MAY 64856-1
18
MAY 56933-1
19
MAY 57051-1
20
WP68233-3 Whirlpool Refrigerator Defrost Timer
20
MAY 405007-1
22
MAY 53523-1
23
MAY 26911-18
24
WP596669 Whirlpool Hose Clamp
25
MAY 53516-5
26
MAY 66339-3
27
MAY 26088-23
27
MAY 65013-25
27
MAY 65013-16
28
MAY 13900
29
MAY 52085-29
30
MAY 52551-21
31
MAY 68834-1
32
MAY 55878-1
33
MAY 66325-18
34
MAY 65063-1
35
MAY 65064-1
36
MAY 69848-1
37
MAY 29915-13
38
MAY 52067-1
39
MAY 52561-1
39
MAY 70267-1
40
MAY 66381-1
42
WP489478 Whirlpool Refrigerator Screw
42
MAY 29282-2
←
