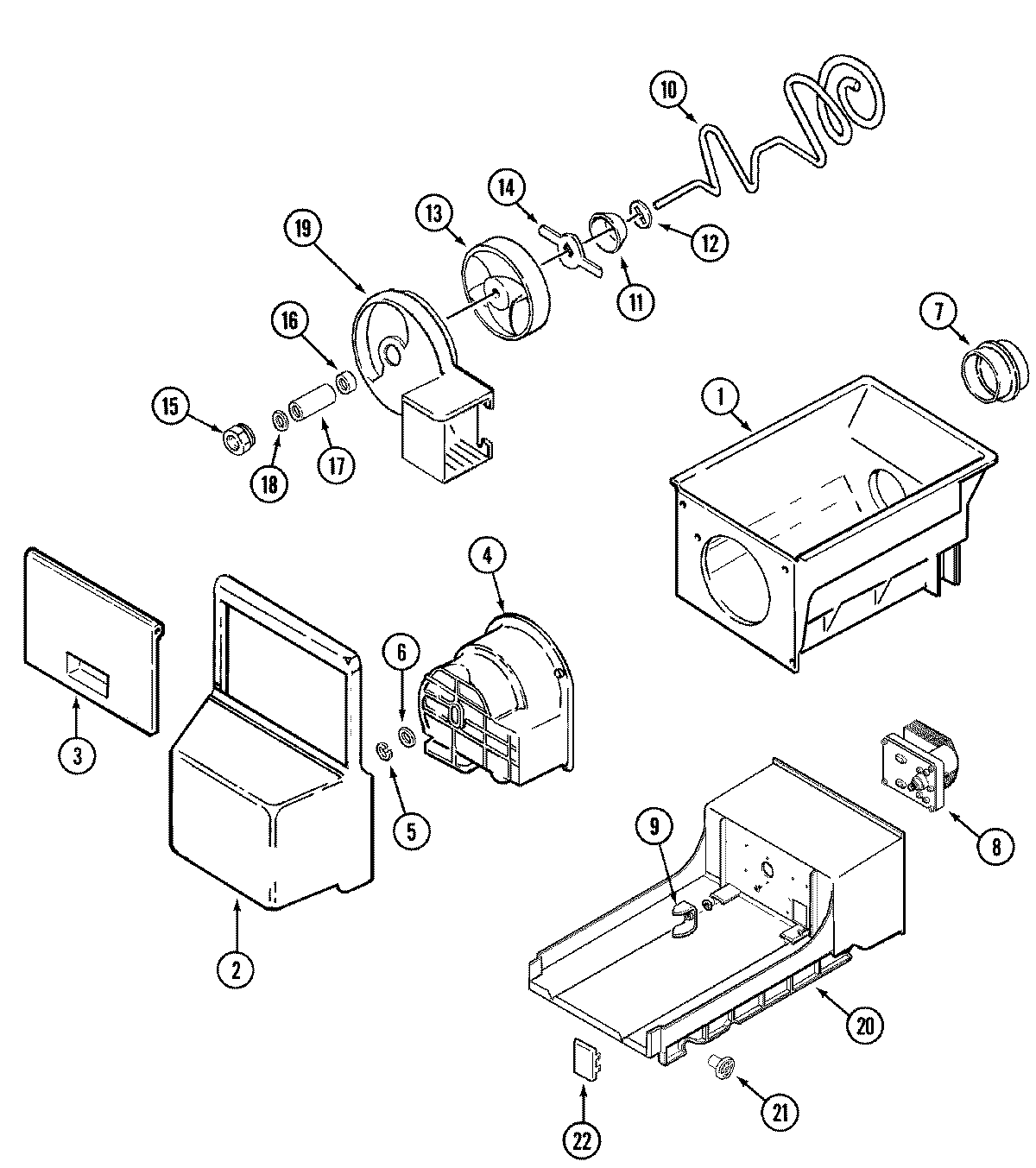

CS21B5DW 09 – ICE BIN (REV 10)

Products

Position	Product
1	MAY 61003319
2	MAY 61003320
3	MAY 61004327
4	415013-35 Whirlpool Refrigerator Screw
4	MAY 61003322
5	MAY 69704-1
6	489234 Whirlpool Refrigerator Washer
7	WP61003336 Whirlpool Refrigerator Drive Ring
8	MAY 61003325
8	12001773 Whirlpool Refrigerator Primary Auger Motor Y Assembly
8	2006253 Whirlpool Refrigerator Screw
9	MAY 63052-1
10	MAY 61003326
11	MAY 69699-1
12	MAY 69698-1
13	MAY 61003327
14	MAY 61003328
15	MAY 69709-1
16	MAY 69697-1
17	MAY 61003329
18	MAY 69696-2
19	MAY 61003334
20	MAY 61003335
21	MAY 61003333
21	WP67006908 Whirlpool Refrigerator Screw
22	MAY 61003330
