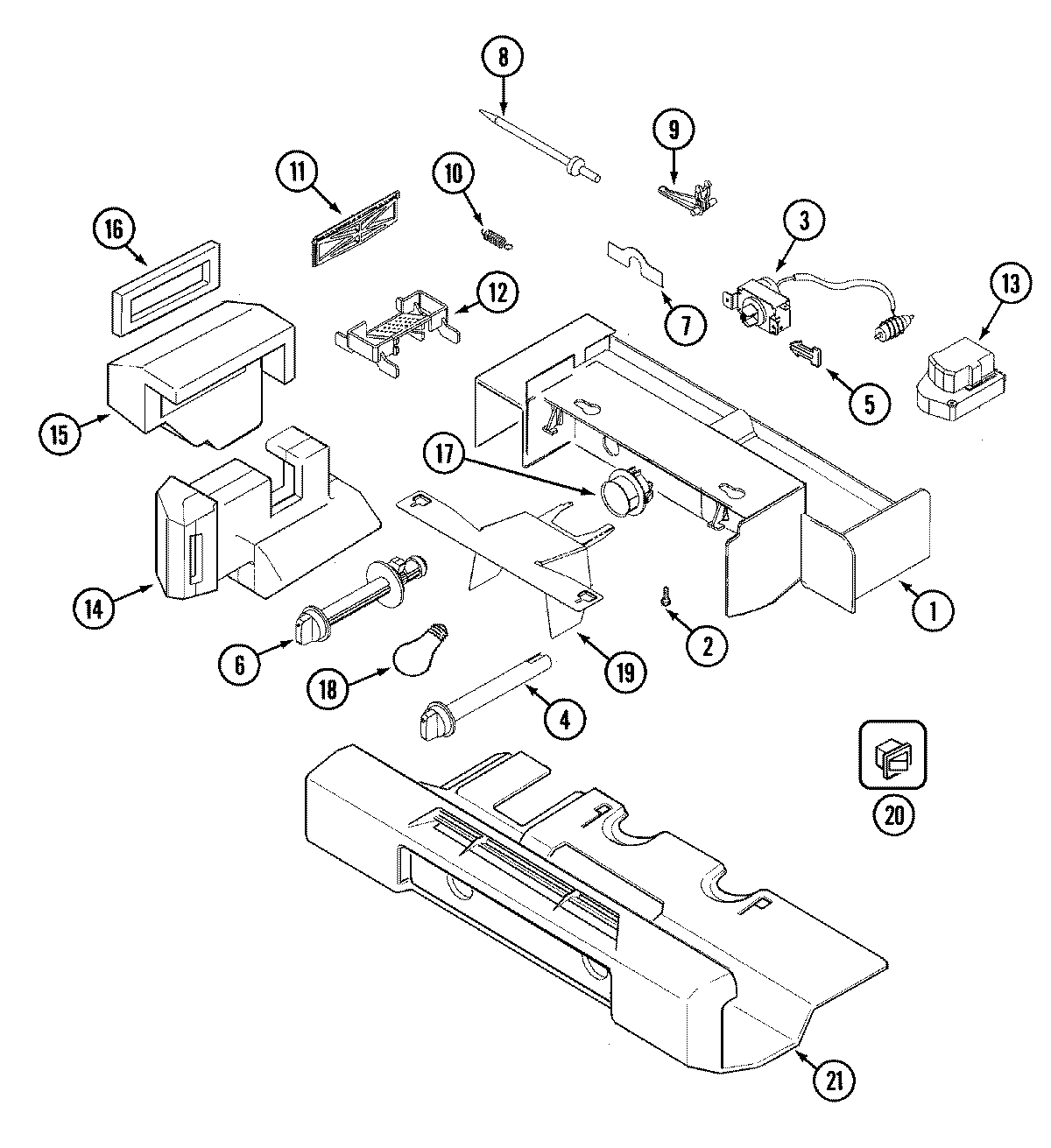

| NI | MAY 61006035 |
| NI | SEE NOTE GROUND WIRE, GREEN |
| NI | MAY 61004280 |
| NI | MAY 61003154 |
| 1 | MAY 61003152 |
| 1 | MAY 61004424 |
| 1 | MAY 61003135 |
| 2 | WPW10348409 Whirlpool Screw |
| 3 | WP61003456 Whirlpool Refrigerator Temperature Control |
| 4 | MAY 61003136 |
| 5 | MAY 61003137 |
| 6 | MAY 61003138 |
| 7 | MAY 61003139 |
| 8 | MAY 61003155 |
| 9 | MAY 61003140 |
| 10 | MAY 61003141 |
| 11 | MAY 61003142 |
| 12 | MAY 61004278 |
| 13 | WP68233-2 Whirlpool Refrigerator Defrost Timer |
| 13 | MAY 405007-1 |
| 14 | MAY 61004279 |
| 14 | MAY 61003144 |
| 15 | MAY 61005220 |
| 15 | MAY 61005075 |
| 16 | MAY 61003819 |
| 17 | SOCKET |
| 18 | W10887190 Whirlpool Refrigerator Light Bulb |
| 19 | MAY 61003149 |
| 20 | W11384469 Whirlpool Door Switch |
| 20 | MAY 61006157 |
| 21 | MAY 61003217 |
