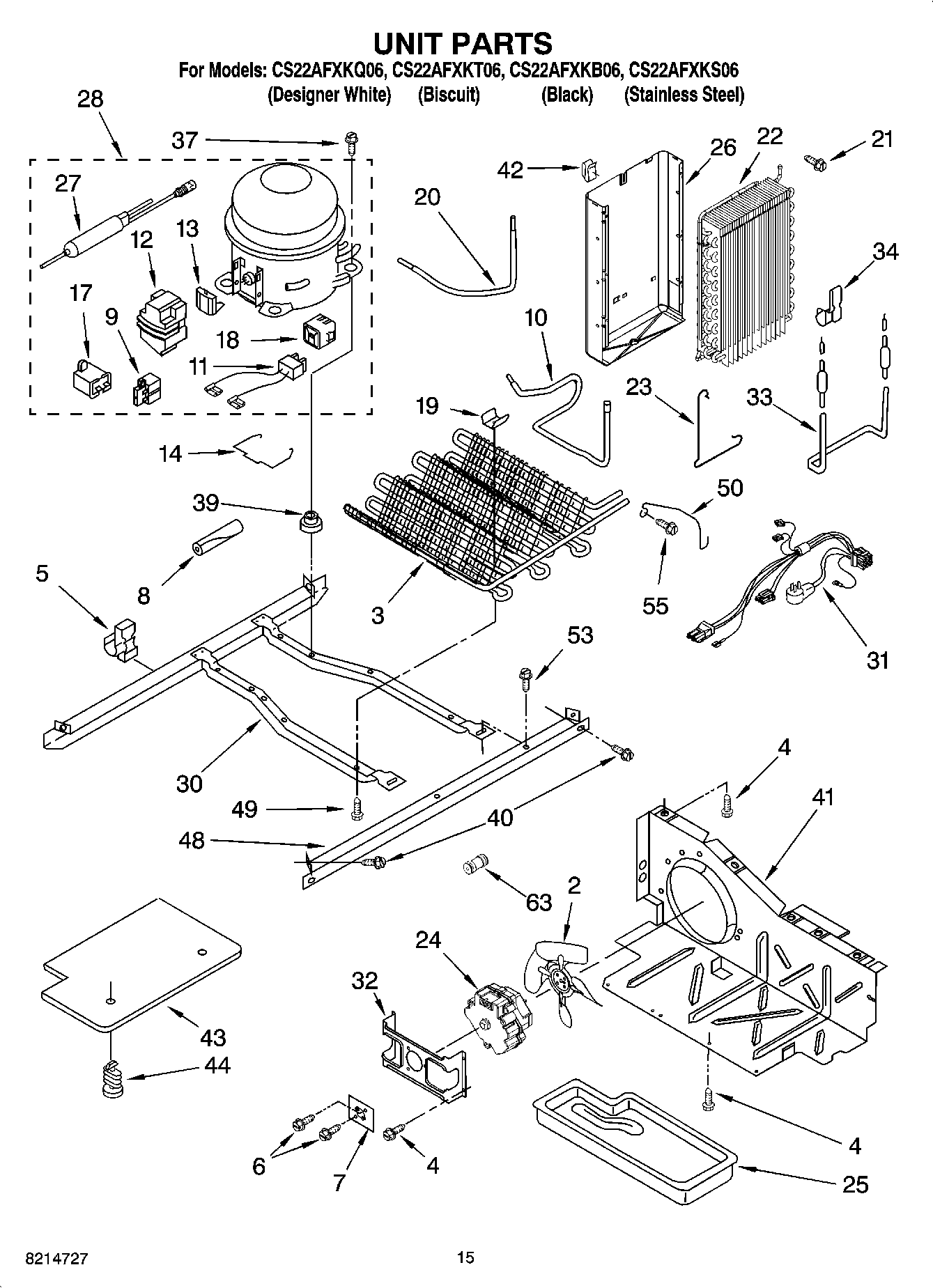

CS22AFXKB06 09 – UNIT PARTSadmin2025-04-26T09:35:55+00:00CS22AFXKB06 09 – UNIT PARTS ProductsPositionProduct2W11458267 Whirlpool Refrigerator Fan Blade32324712 Whirlpool Refrigerator Condenser4WP489464 Whirlpool Refrigerator Screw5Clip, Wire & Tube6681390 Whirlpool Refrigerator Screw8SLEEVE9W10920279 Whirlpool Refrigerator Start Relay102220642 Whirlpool Refrigerator Tube11WP2172890 Whirlpool Refrigerator Wire12WP2162358 Whirlpool Refrigerator Terminal Cover13WP2187145 Whirlpool Refrigerator Overload142255009 Whirlpool Retainer17WP65889-4 Whirlpool Refrigerator Capacitor17WPW10662129 Whirlpool Refrigerator Run Capacitor18WP2188831 Whirlpool Refrigerator Start Device19W10683556 Whirlpool Refrigerator Clip202261599 Whirlpool Refrigerator Tube21WP489478 Whirlpool Refrigerator Screw22WP2188822 Whirlpool Refrigerator Evaporator23Clamp24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade25WPW10614158 Whirlpool Refrigerator Evaporator Tray26Heat Shield27W10843121 Whirlpool Refrigerator Tube28W10309990 Whirlpool Refrigerator Compressor302304903 Whirlpool Refrigerator Frame31Unit, Harness32WP2181929 Whirlpool Refrigerator Bracket33WP2323197 Whirlpool Refrigerator Heater34W11623163 Whirlpool Refrigerator Clip39876811 Whirlpool Grommet40489340 Whirlpool Refrigerator Screw41W10896764 Whirlpool Refrigerator Air Baffle42Clip, Heat Shield43Unit Cover, Bottom44489396 Whirlpool Refrigerator Clip48Unit Mounting Rail49W11544659 Whirlpool Refrigerator Screw50Guard, Fan53WP489427 Whirlpool Refrigerator Screw55WPW10141625 Whirlpool Refrigerator Screw Assembly63VALVE, ACCESS (5/8``)63FOLLOWING PARTS NOT ILLUSTRATED63and Optional Parts Not Included63876764 Whirlpool Refrigerator Primary Valve63978027 Whirlpool Refrigerator Primary Valve63WP4373559 Whirlpool Fitting63978030 Whirlpool Refrigerator Valve63WP978025 Whirlpool Refrigerator Valve63VALVE, ACCESS (1/2``)63978026 Whirlpool Refrigerator Primary Valve63REFRIGERANT CHARGE 5.0 oz. (R-1
