CS22AFXKQ06 04 – FREEZER LINER PARTS

CS22AFXKQ06 04 – FREEZER LINER PARTS

Written by

in

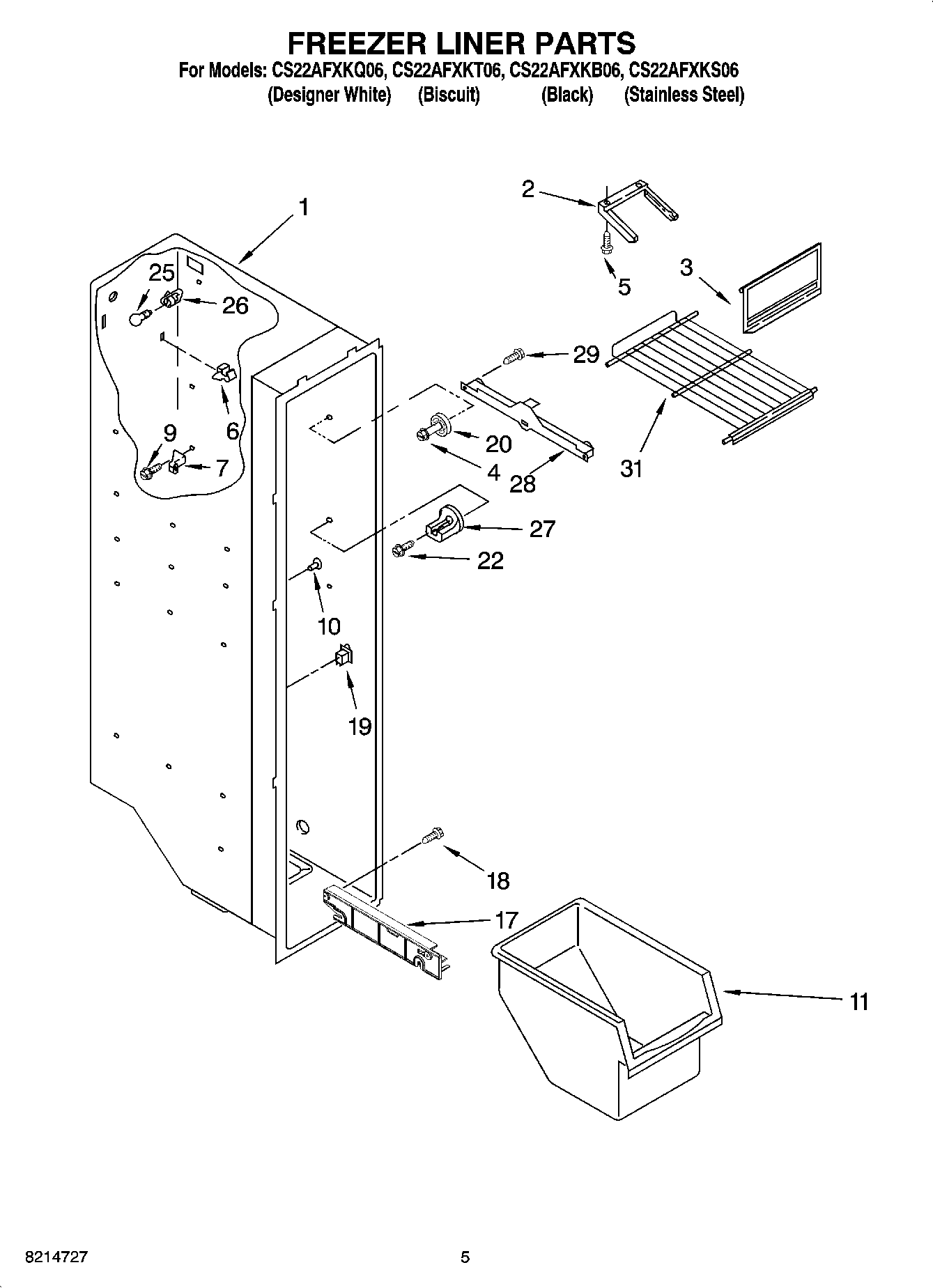

CS22AFXKQ06 04 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
4WP3400806 Whirlpool Screw
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
10Grommet
11Bin, Freezer
17W10845585 Whirlpool Refrigerator Track
17W10845583 Whirlpool Refrigerator Track
18W10759522 Whirlpool Screw
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20WP2196483 Whirlpool Refrigerator Shelf Stud
22W10142289 Whirlpool Air Conditioner Screw
25RANGE ONLY 40W 120V APPL BULB
264387478 Whirlpool Refrigerator Light Socket
27Stud, Rear
28WP2261449 Whirlpool Refrigerator Track
28Slide, Basket (Left Side)
29718257 Whirlpool Dishwasher Screw
31WP2174249K Whirlpool Refrigerator Wire Shelf
31Shelf (2)
