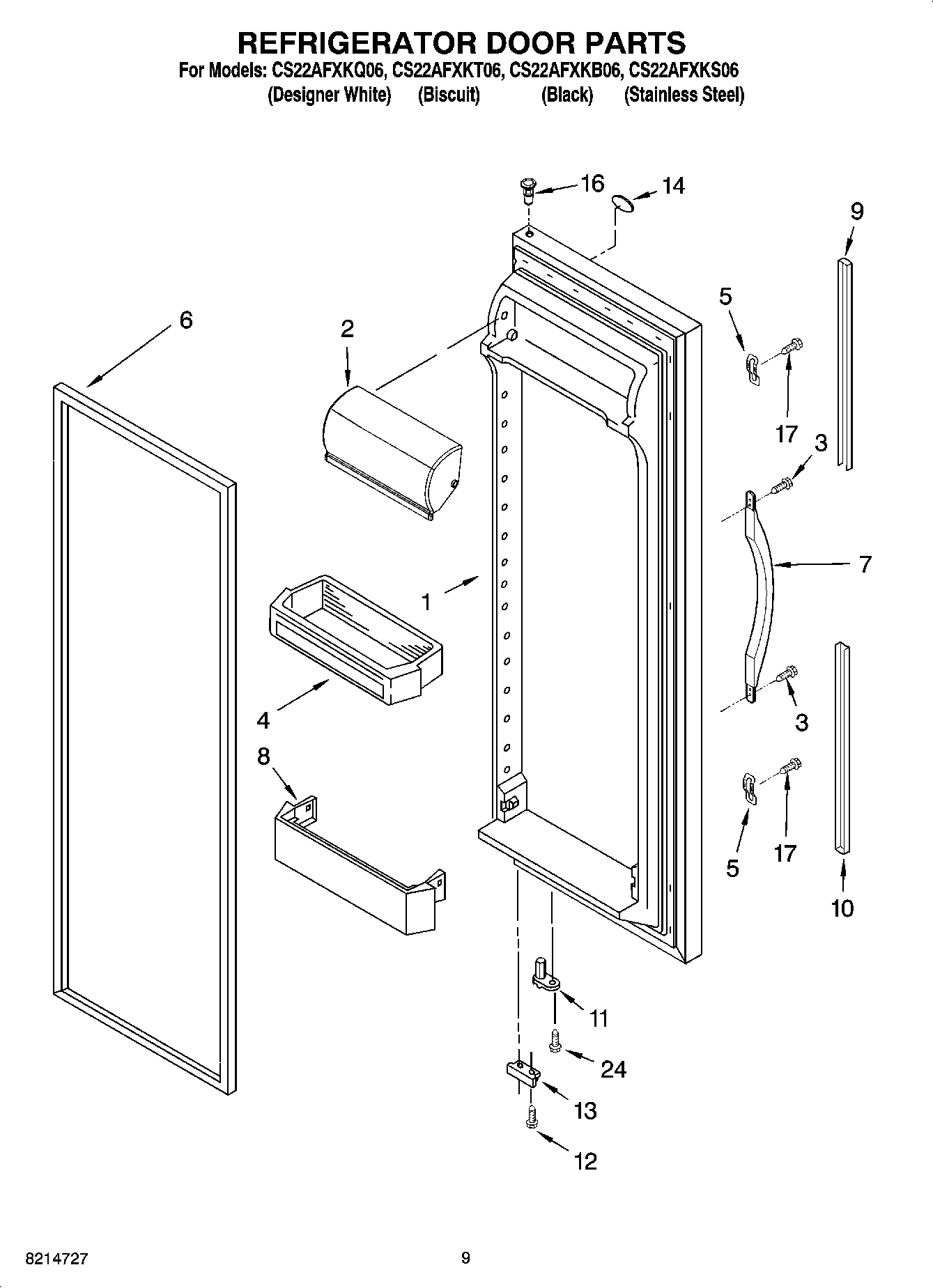

CS22AFXKQ06 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Stainless Steel)
1	Refrigerator Door (Includes Item 6) (Black)
1	Refrigerator Door (Includes Item 6) (Biscuit)
2	WP2256101 Whirlpool Dairy Door
3	WP489491 Whirlpool Refrigerator Screw
4	WP2187172 Whirlpool Refrigerator Door Shelf Bin
5	WP2195327 Whirlpool Refrigerator Clip
6	2159073 Whirlpool Refrigerator Door Gasket
6	2159081 Whirlpool Refrigerator Door Gasket
7	Handle, Center (White)
7	WP2186649B Whirlpool Refrigerator Handle
7	Handle, Center (Biscuit)
8	WP2177962K Whirlpool Refrigerator Door Trim
9	Extension, Top (Biscuit)
9	Extension, Top (White)
9	WP2194971B Whirlpool Refrigerator Handle Trim
10	Extension, Bottom (Biscuit)
10	WP2194969B Whirlpool Refrigerator Handle Trim
10	Extension, Bottom (White)
11	WP2182179 Whirlpool Cam Closer
12	WP489483 Whirlpool Screw
13	WP2206629B Whirlpool Refrigerator Bracket
14	Nameplate
14	Nameplate (Biscuit)
14	Nameplate (White)
16	WP2182181 Whirlpool Refrigerator Thimble
17	WP3400852 Whirlpool Refrigerator Screw
24	WP3400012 Whirlpool Refrigerator Screw
