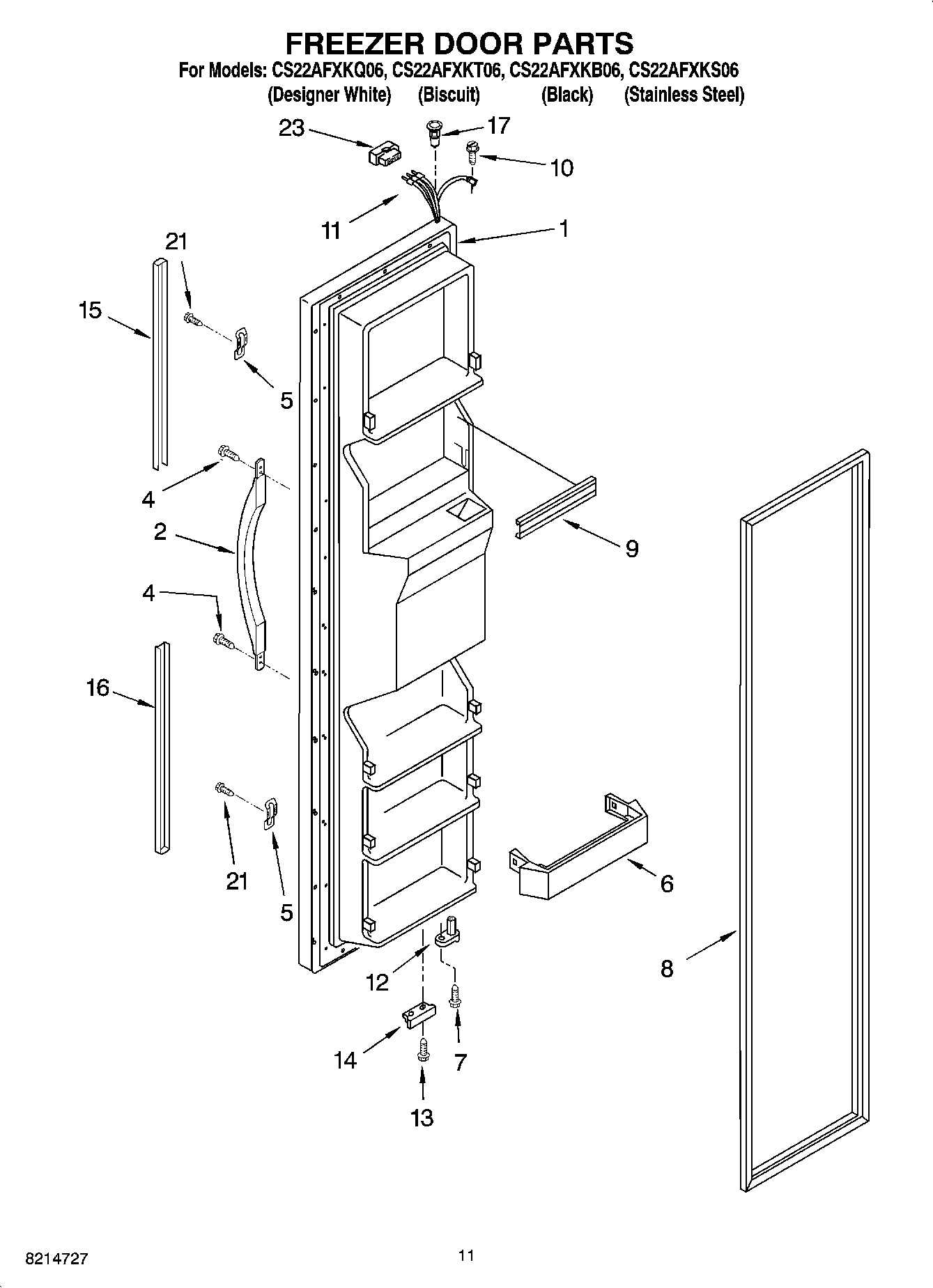

CS22AFXKQ06 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 8) (Stainless Steel And Dispenser Front Parts))
1	Freezer Door (Includes 8) (Black)
1	Freezer Door (Includes No.8) (White)
1	Freezer Door (Includes No.8) (Biscuit And Dispenser Front Parts))
2	WP2186649B Whirlpool Refrigerator Handle
2	Handle, Center (White)
2	Handle, Center (Biscuit)
4	WP489491 Whirlpool Refrigerator Screw
5	WP2195327 Whirlpool Refrigerator Clip
6	Shelf Bin (4)
7	WP3400012 Whirlpool Refrigerator Screw
8	2159072 Whirlpool Refrigerator FIP Gasket
8	2159080 Whirlpool Refrigerator Door Gasket
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP489128 Whirlpool Refrigerator Screw
11	2311642 Whirlpool Refrigerator Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	WP2206629B Whirlpool Refrigerator Bracket
15	WP2194971B Whirlpool Refrigerator Handle Trim
15	Extension, Top (White)
15	Extension, Top (Biscuit)
16	WP2194969B Whirlpool Refrigerator Handle Trim
16	Extension, Bottom (White)
16	Extension, Bottom (Biscuit)
17	WP2182181 Whirlpool Refrigerator Thimble
21	WP3400852 Whirlpool Refrigerator Screw
23	WP2154473 Whirlpool Refrigerator Connector
