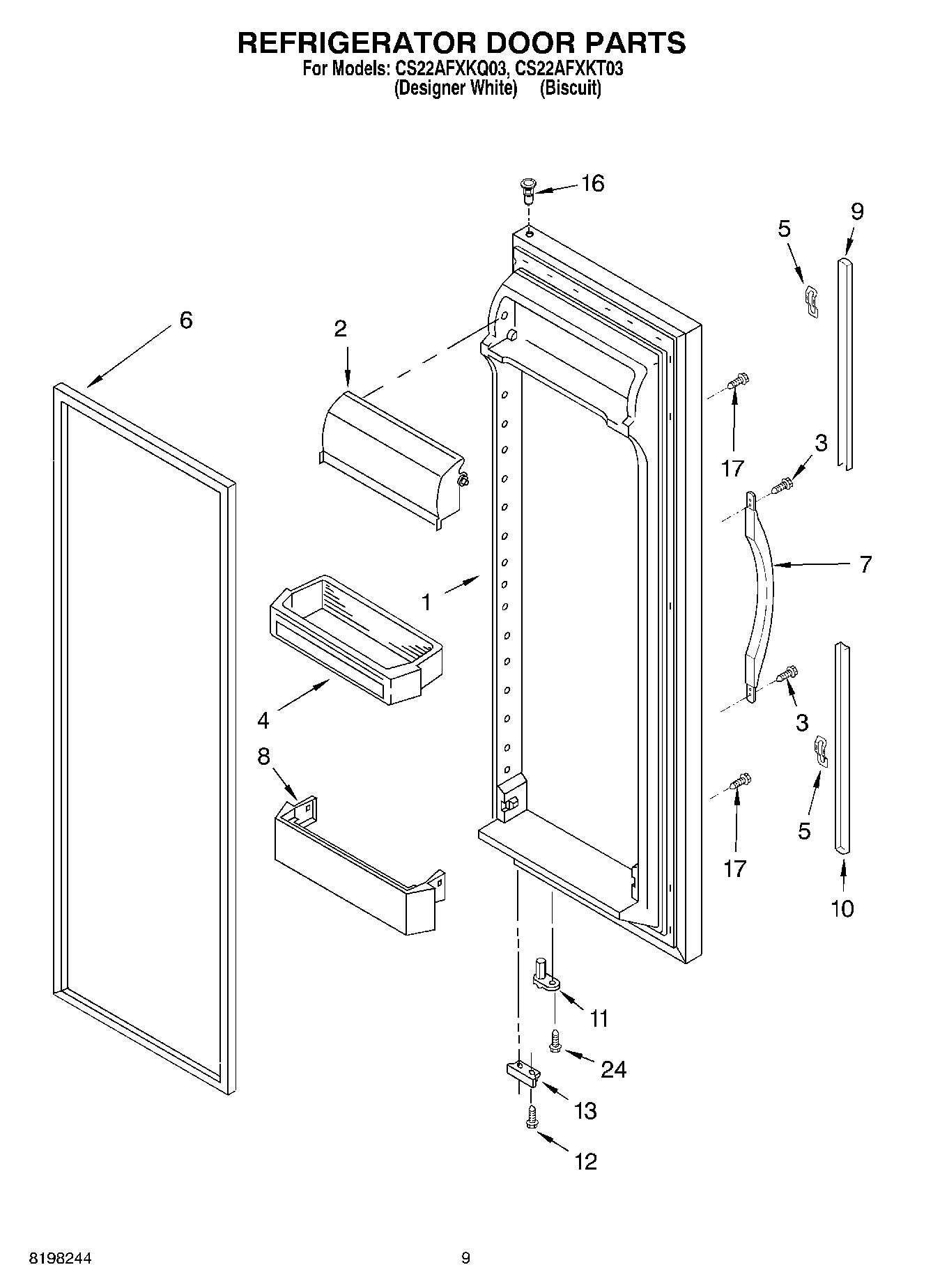

CS22AFXKT03 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Biscuit)
2	WP2256101 Whirlpool Dairy Door
3	WP489491 Whirlpool Refrigerator Screw
4	WP2187172 Whirlpool Refrigerator Door Shelf Bin
5	WP2195327 Whirlpool Refrigerator Clip
6	2159073 Whirlpool Refrigerator Door Gasket
7	Handle, Center (White)
7	Handle, Center (Biscuit)
8	WP2177962K Whirlpool Refrigerator Door Trim
9	Extension, Top (White)
9	Extension, Top (Biscuit)
10	Extension, Bottom (Biscuit)
10	Extension, Bottom (White)
11	WP2182179 Whirlpool Cam Closer
12	WP489483 Whirlpool Screw
13	WP2206629B Whirlpool Refrigerator Bracket
16	WP2182181 Whirlpool Refrigerator Thimble
17	WP3400852 Whirlpool Refrigerator Screw
24	WP3400012 Whirlpool Refrigerator Screw
