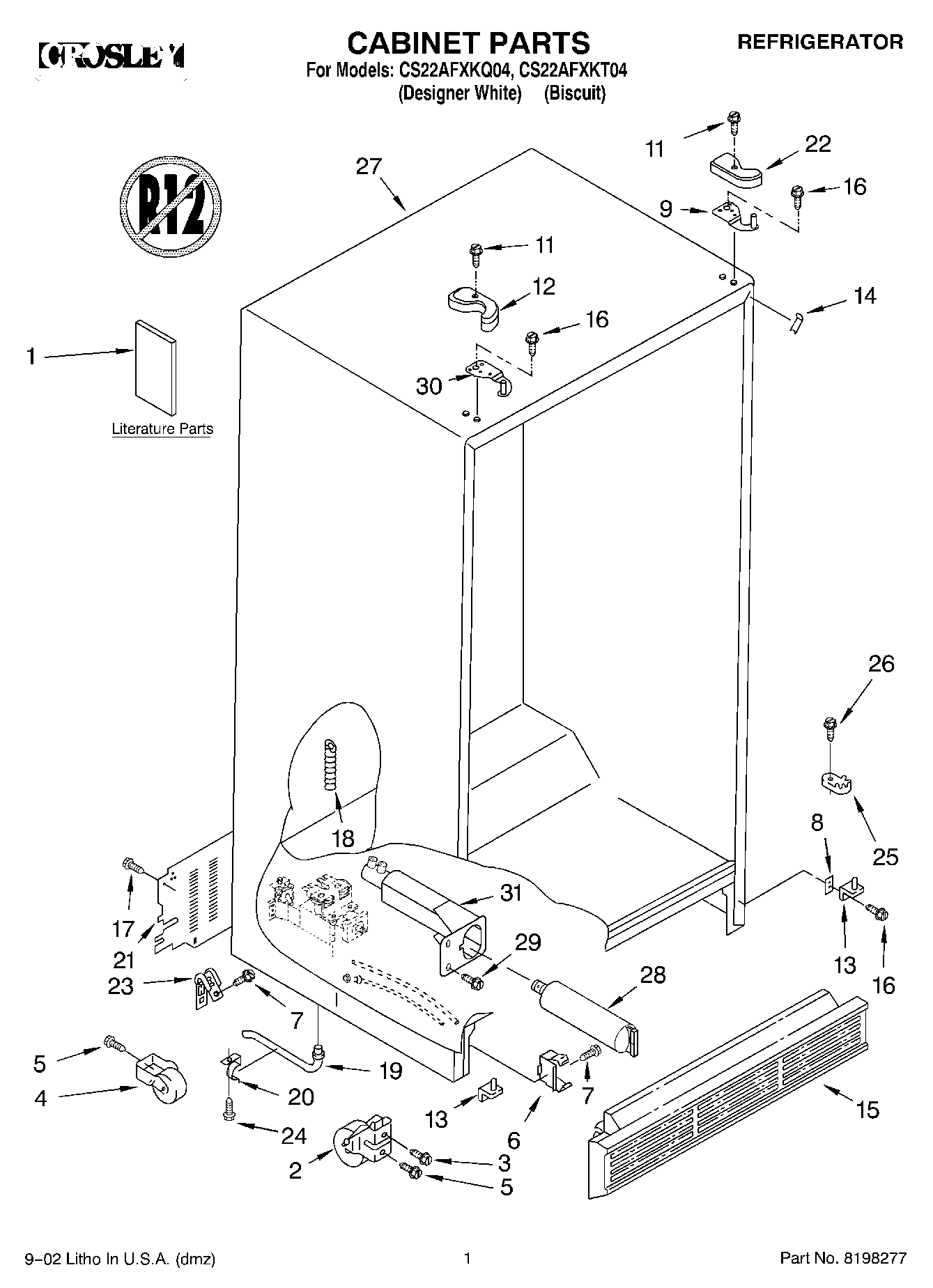

CS22AFXKT04 01 – CABINET, LITERATURE

Products

PositionProduct
1LITERATURE PARTS (Service & Wiring Sheet)
1LITERATURE PARTS (Use & Care Guide)
1LITERATURE PARTS (Energy Guide)
1Modular Icemaker Service Sheet
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8WP2209697 Whirlpool Refrigerator Shim
9WP2203771 Whirlpool Refrigerator Door Hinge
11WP8281227 Whirlpool Screw
12WP2203407W Whirlpool Refrigerator Cover
122203407T Whirlpool Refrigerator Cover
138201707 Whirlpool Door Hinge
14Filler, Wrapper (White)
14Filler, Wrapper (Biscuit)
15Grille (Biscuit)
15W10804014 Whirlpool Refrigerator Grille
16WP489497 Whirlpool Screw
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19WP1108438 Whirlpool Refrigerator Extension
20WP1108439 Whirlpool Refrigerator Clip
21WP2188756 Whirlpool Refrigerator Unit Cover
22WP2203408W Whirlpool Refrigerator Cover
22Hinge Cover (Biscuit)
23549193 Whirlpool Refrigerator Power Clamp
25WPW10329686 Whirlpool Door Cam Black
26WP489483 Whirlpool Screw
27Cabinet (Not A Serviceable Part)
28EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
29WP489500 Whirlpool Refrigerator Screw
30WP2203770 Whirlpool Refrigerator Door Hinge
31WP2186443 Whirlpool Water Filter Housing
