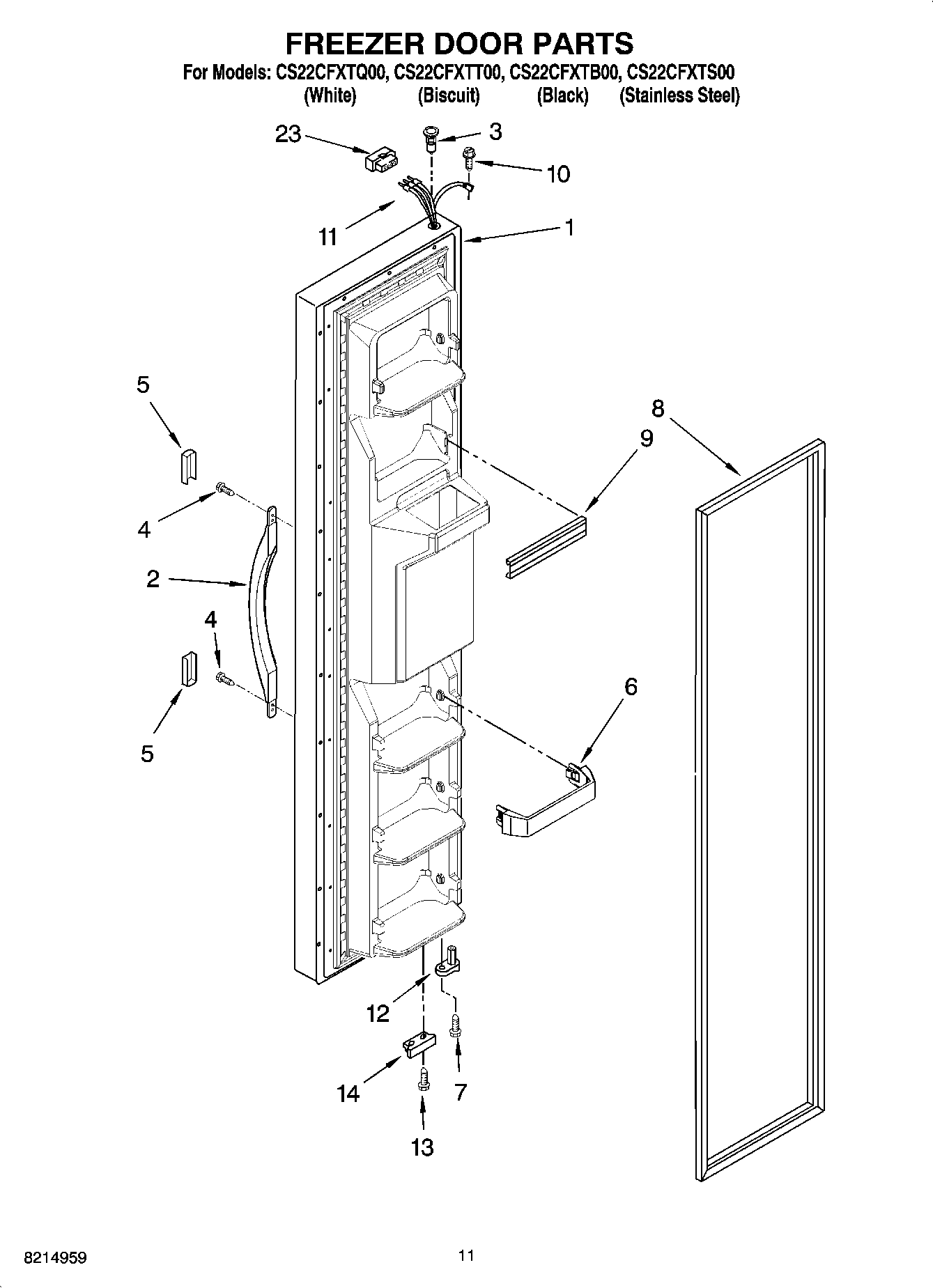

CS22CFXTB00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless-VCM)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
2	Handle, Center (Biscuit)
2	WP2186649B Whirlpool Refrigerator Handle
2	Handle, Center (White)
3	Thimble, Top (For Stainless Steel Models)
3	WP2182181 Whirlpool Refrigerator Thimble
4	WP489491 Whirlpool Refrigerator Screw
5	WP2193353W Whirlpool Refrigerator Trim Handle
5	Cover, Trim (Black)
5	Cover, Trim (Biscuit)
6	WP2309717 Whirlpool Refrigerator Door Trim
7	WP3400012 Whirlpool Refrigerator Screw
8	2159080 Whirlpool Refrigerator Door Gasket
8	2159072 Whirlpool Refrigerator FIP Gasket
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP489128 Whirlpool Refrigerator Screw
11	2311642 Whirlpool Refrigerator Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	WP2206629B Whirlpool Refrigerator Bracket
23	WP2154473 Whirlpool Refrigerator Connector
